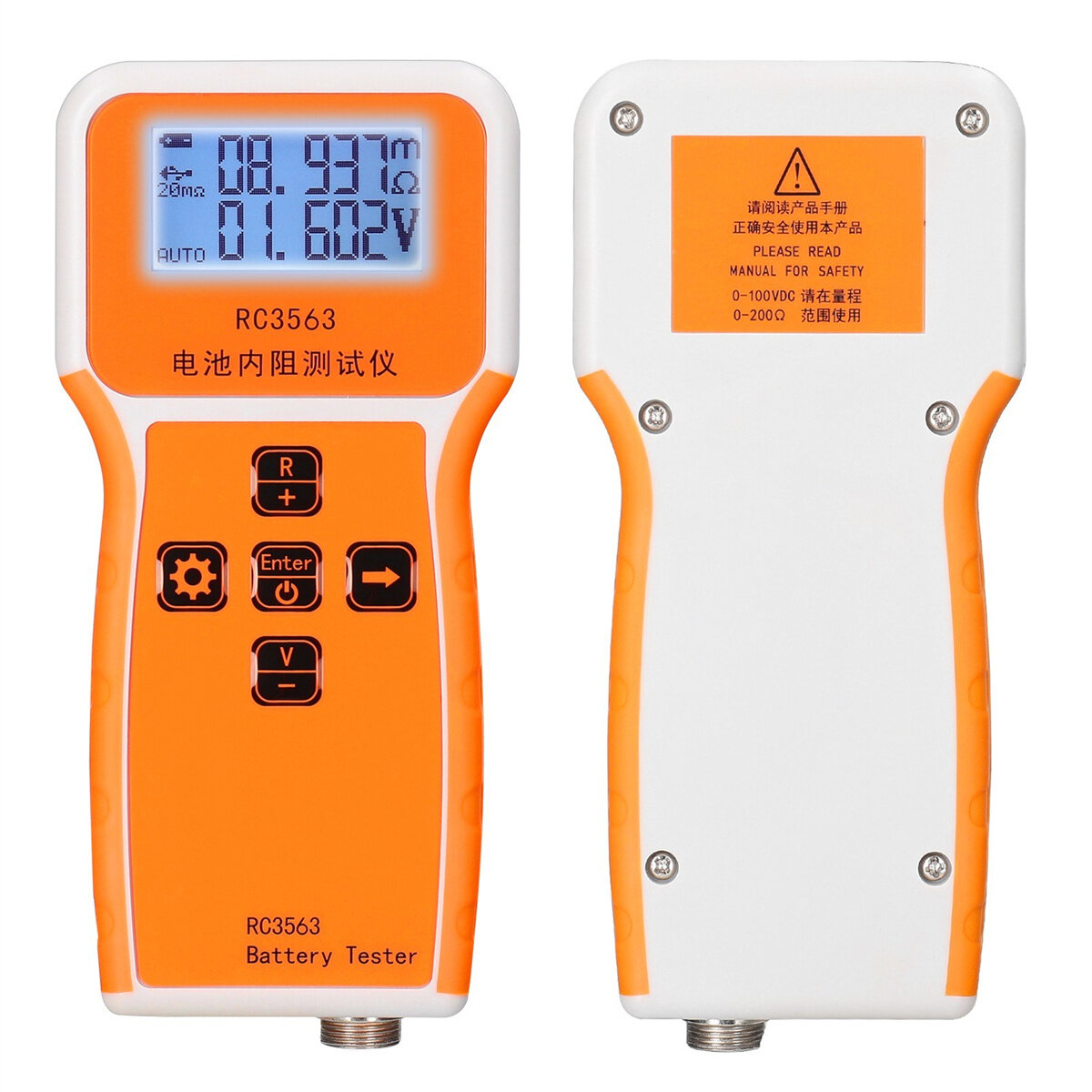

RC3563 200Ω 100V Handheld Portable Battery Internal Resistance Voltage Tester 3-digit Display Battery Tester High-precise True Four-wire AC Lithium Lead-acid Lithium Battery Detector

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



The battery internal resistance tester can measure the battery internal resistance and voltage at the same time.

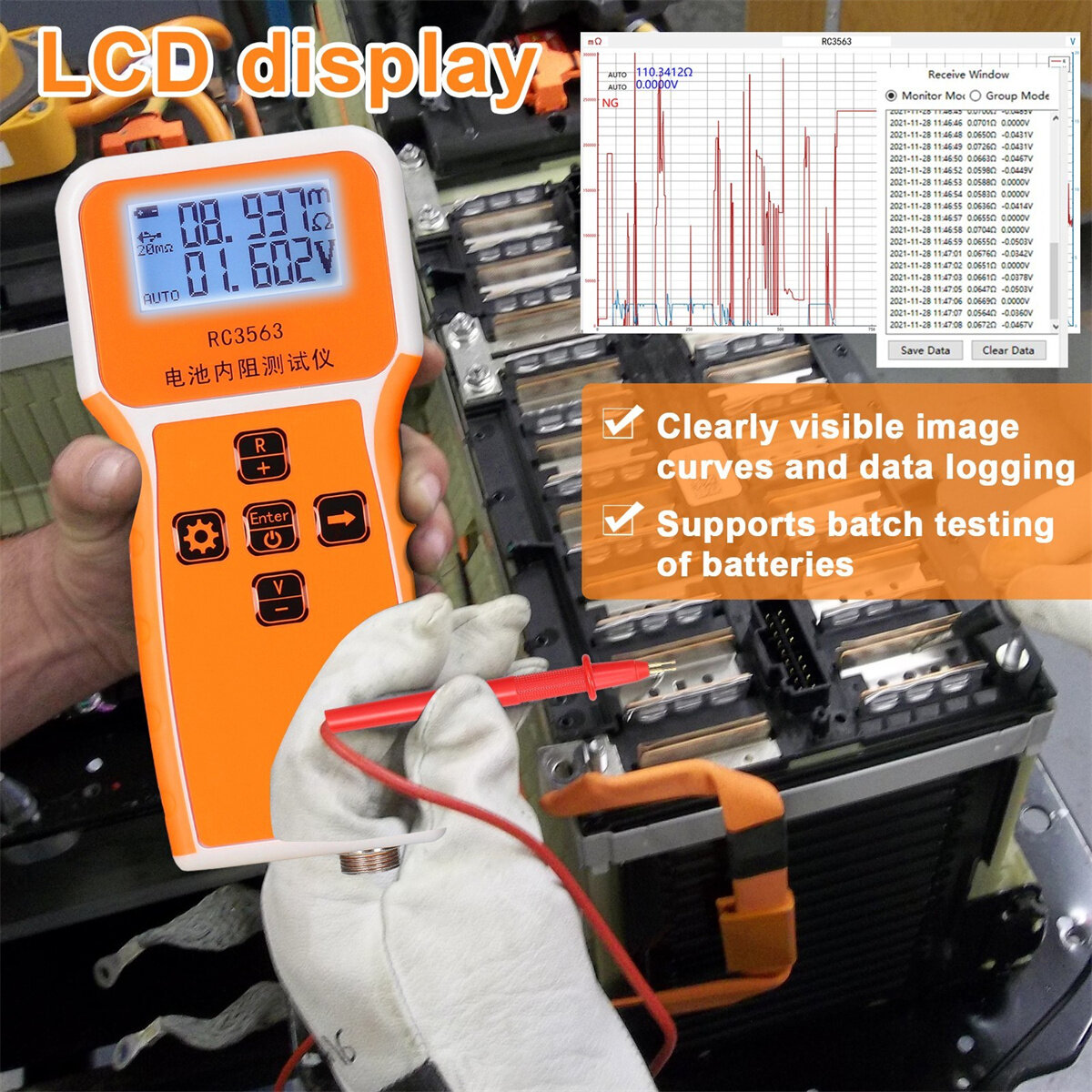

This product adopts intelligent control, LCD display, and implanting Kalman filter mathematical algorithm, with high efficiency, low cost, light weight and energy saving.

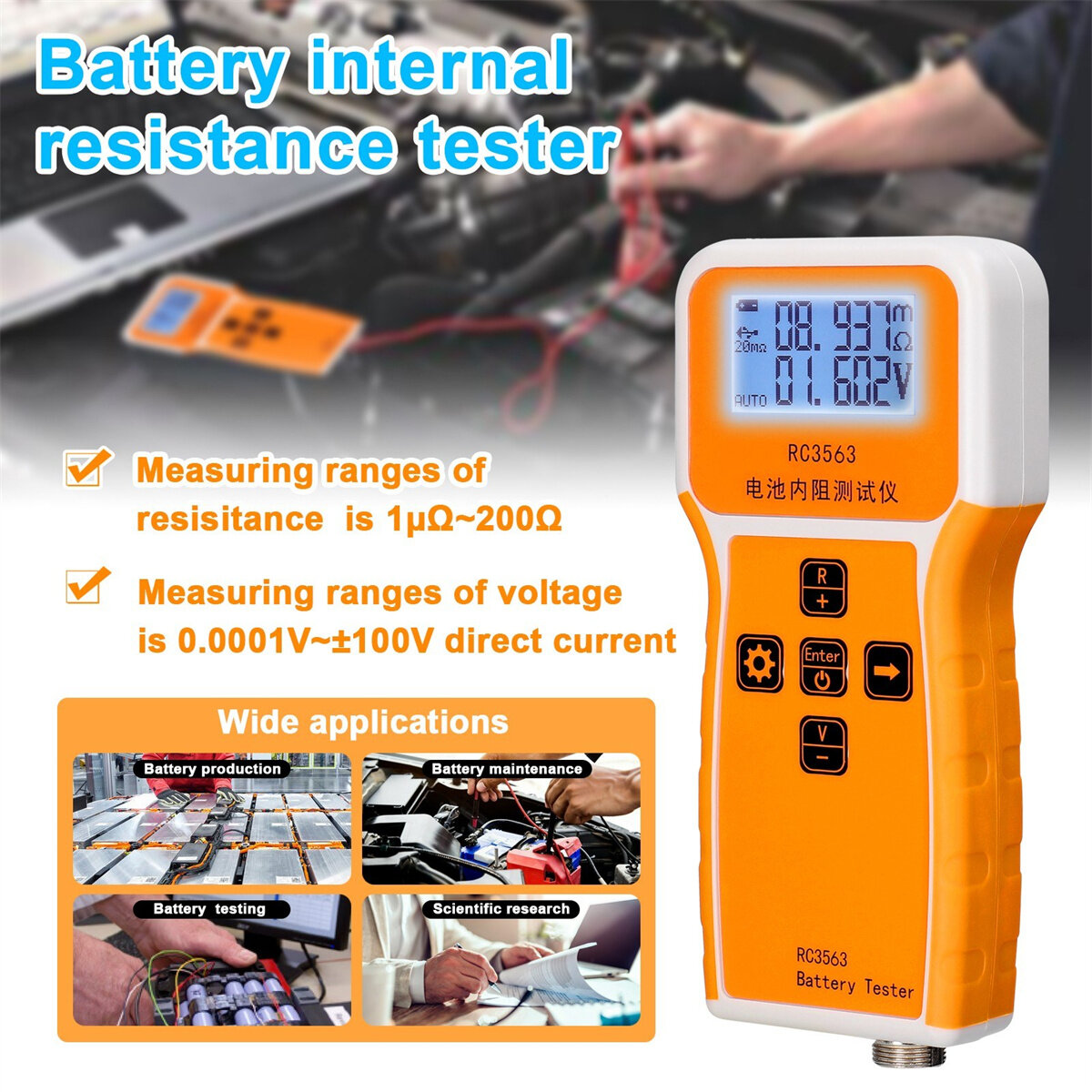

Wide applications: This product is widely used in various battery production, maintenance, testing, scientific research laboratories and other occasions. It can also be used to measure the AC resistance of resistors and low-resistance high-precision resistance.

This tester adopts intelligent control and large display, also with built-in 1000mAh lithium battery to provide long service time, you can recharge it in time.

Portable size and easy to carry, you can take it with you to anywhere you want to use.

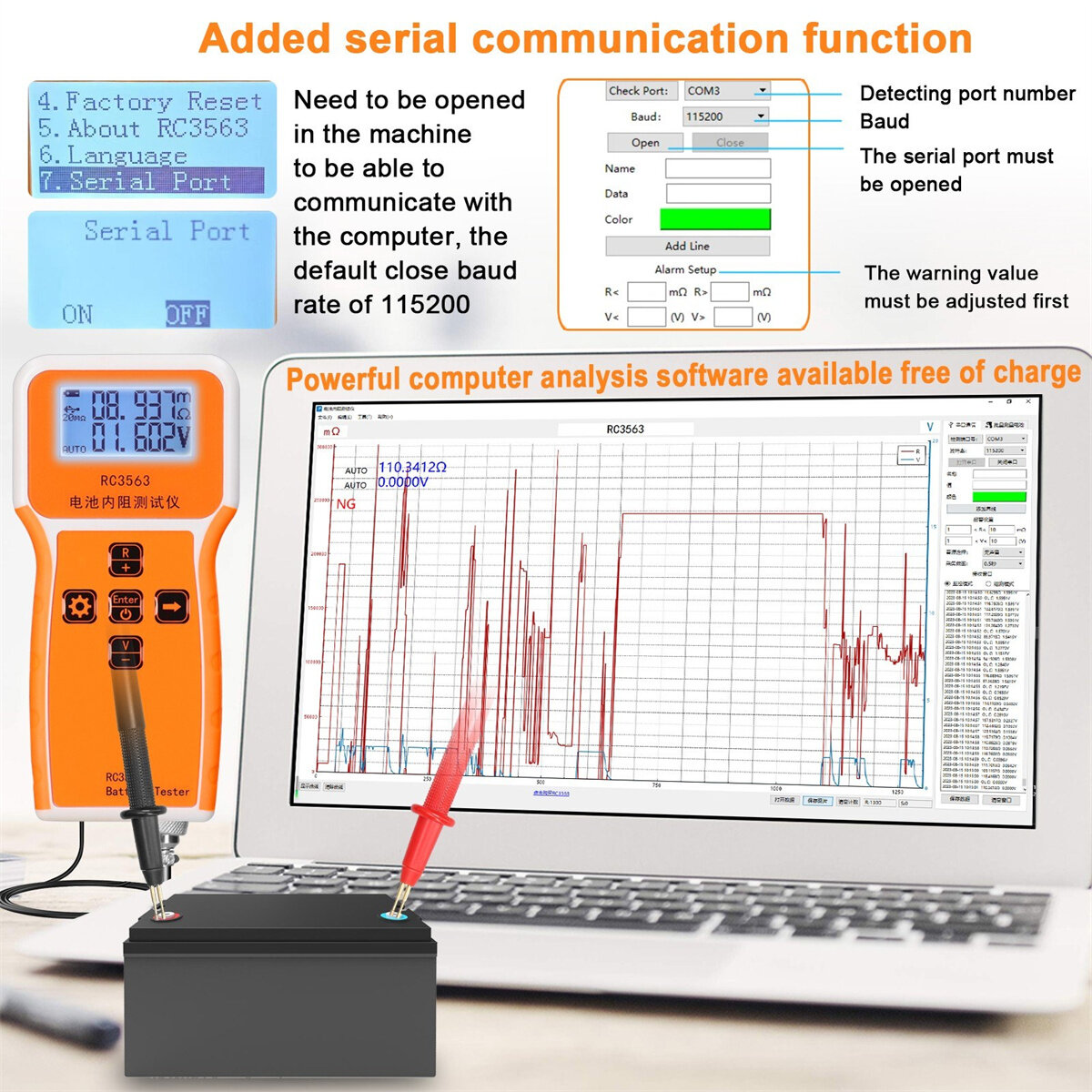

This product supports serial ports, and the measuring ranges of resisitance  is 1μΩ~200Ω, and the measuring ranges of voltage is 0.0001V~±100V direct current.



Material: ABS

Type: 2 optional

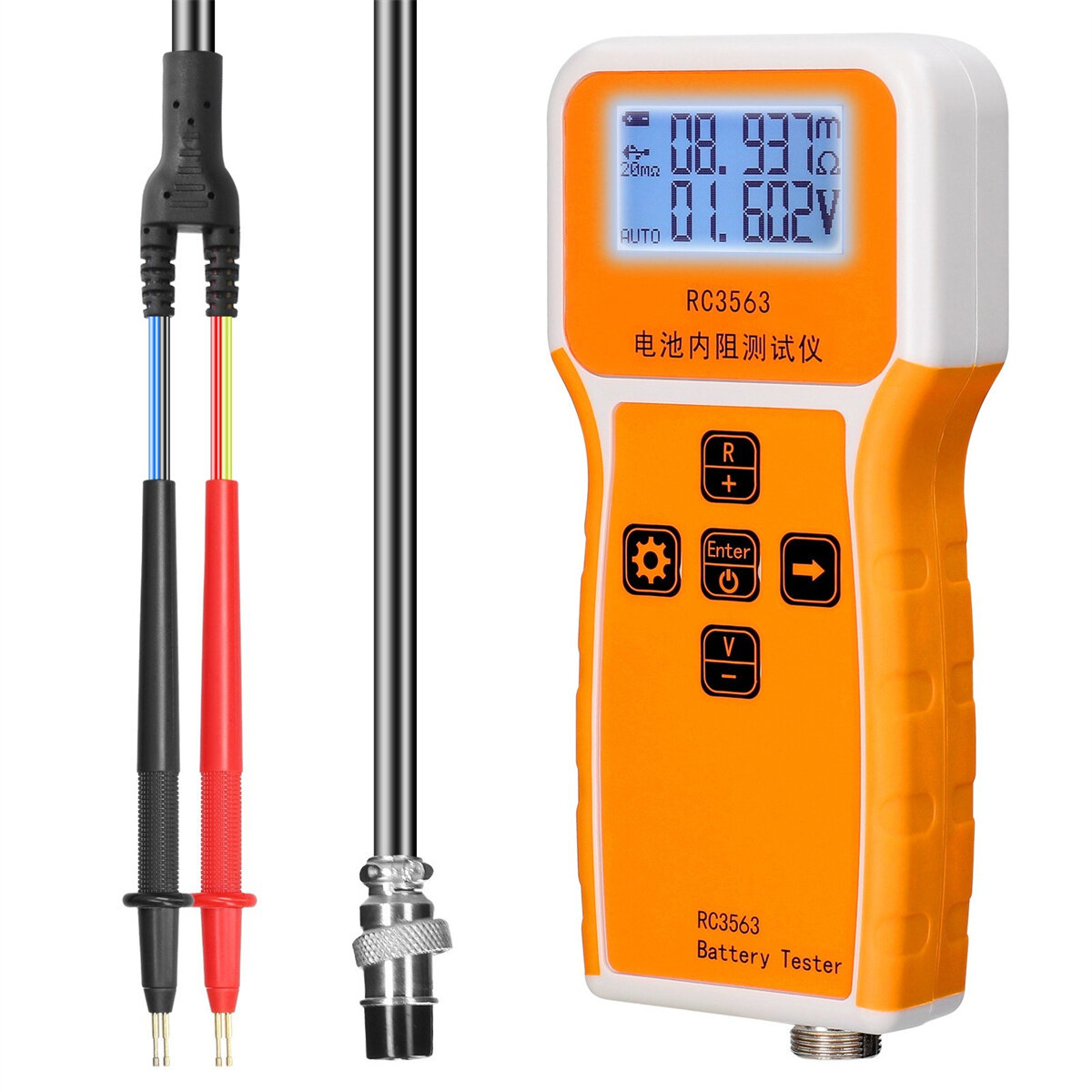

Type1: Tester+probe

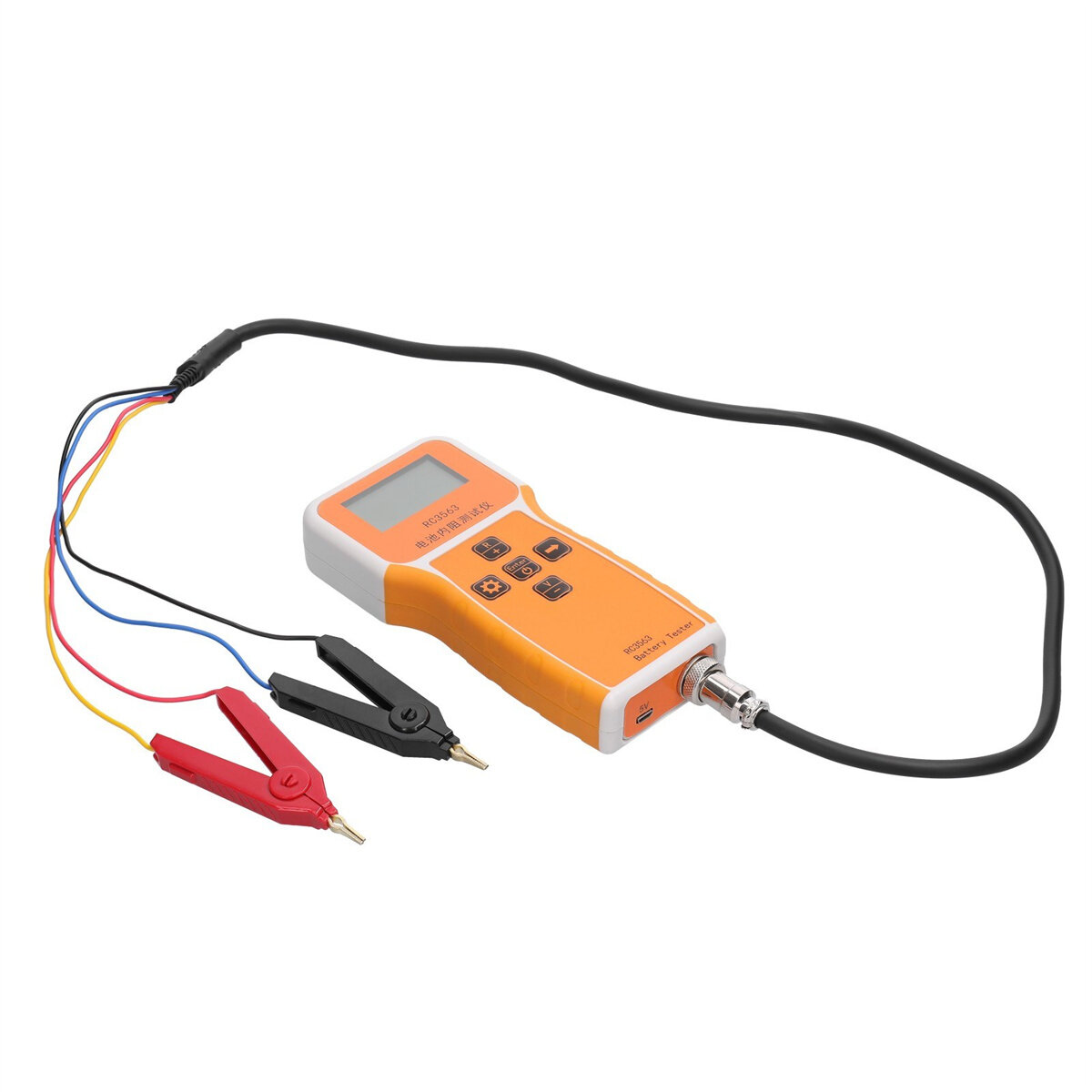

Type2: Tester+clip

Battery: 1 * lithium battery, 1000mAh (included)

Speed: 5 times/second

Adjustment: Correction for resistance and voltage separately

Basic accurancy:

Resistance: 0.5%

Voltage: 0.5%

Measuring ranges:

Resistance: 1μΩ~200Ω

Voltage: 1mV~±100V direct current

Test signal frequency: AC 1KHz

Test signal current: 20mΩ, 50mA; 200mΩ, 5mA; 20Ω, 0.5mA

Resistance ranges: 6 ranges automatic and manual

Voltage ranges: 3 ranges automatic and manual

Display update: 5 times / second

Auto shutdown: 10 minutes delay, automatic shutdown without any operation

Language: Chinese and English can be switched at will

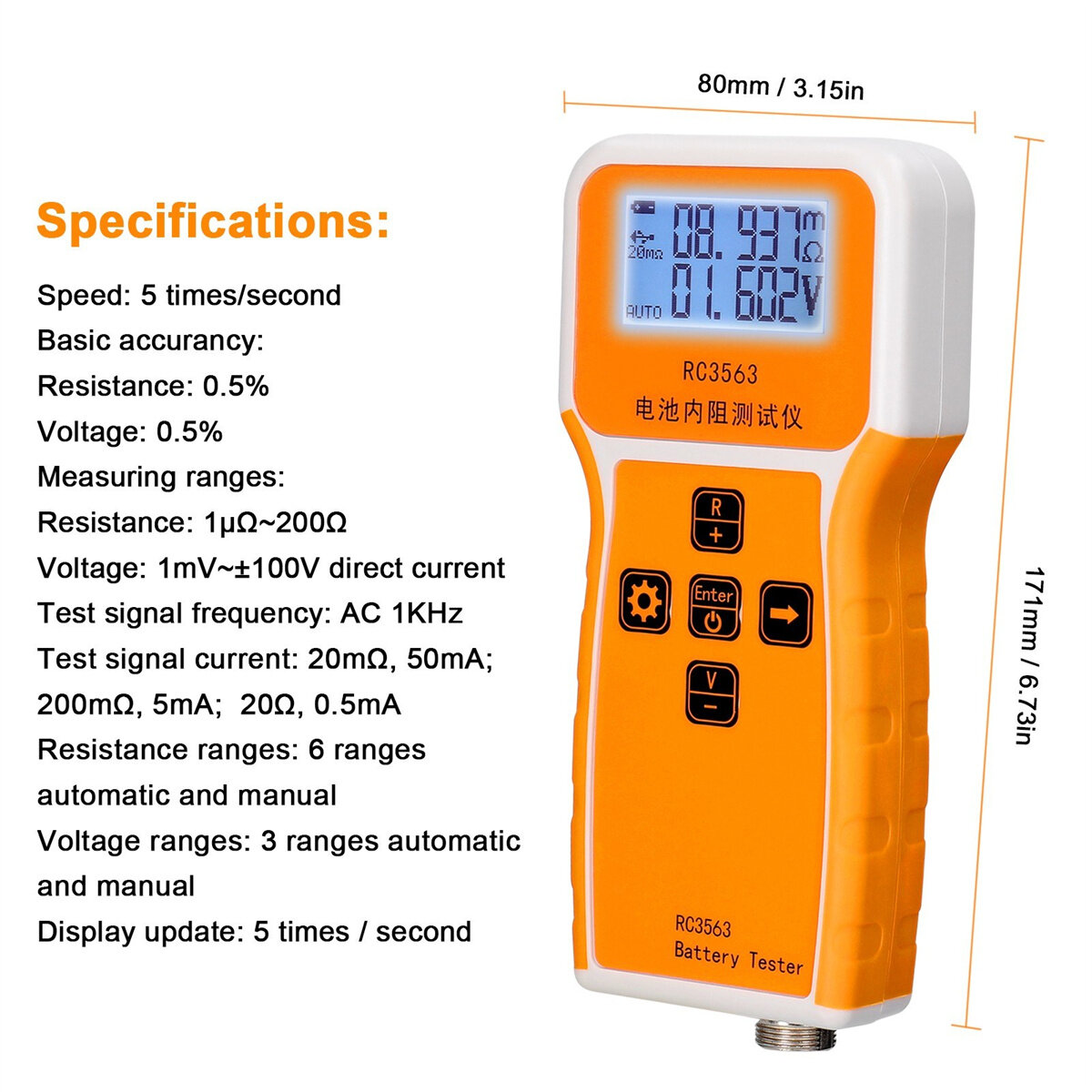

Item size: 171 * 80 * 29mm / 6.73 * 3.15 * 1.14in

Package size: 180 * 90 * 35mm / 7.09 * 3.54 * 1.38in

Package weight: 330g / 11.64ounce

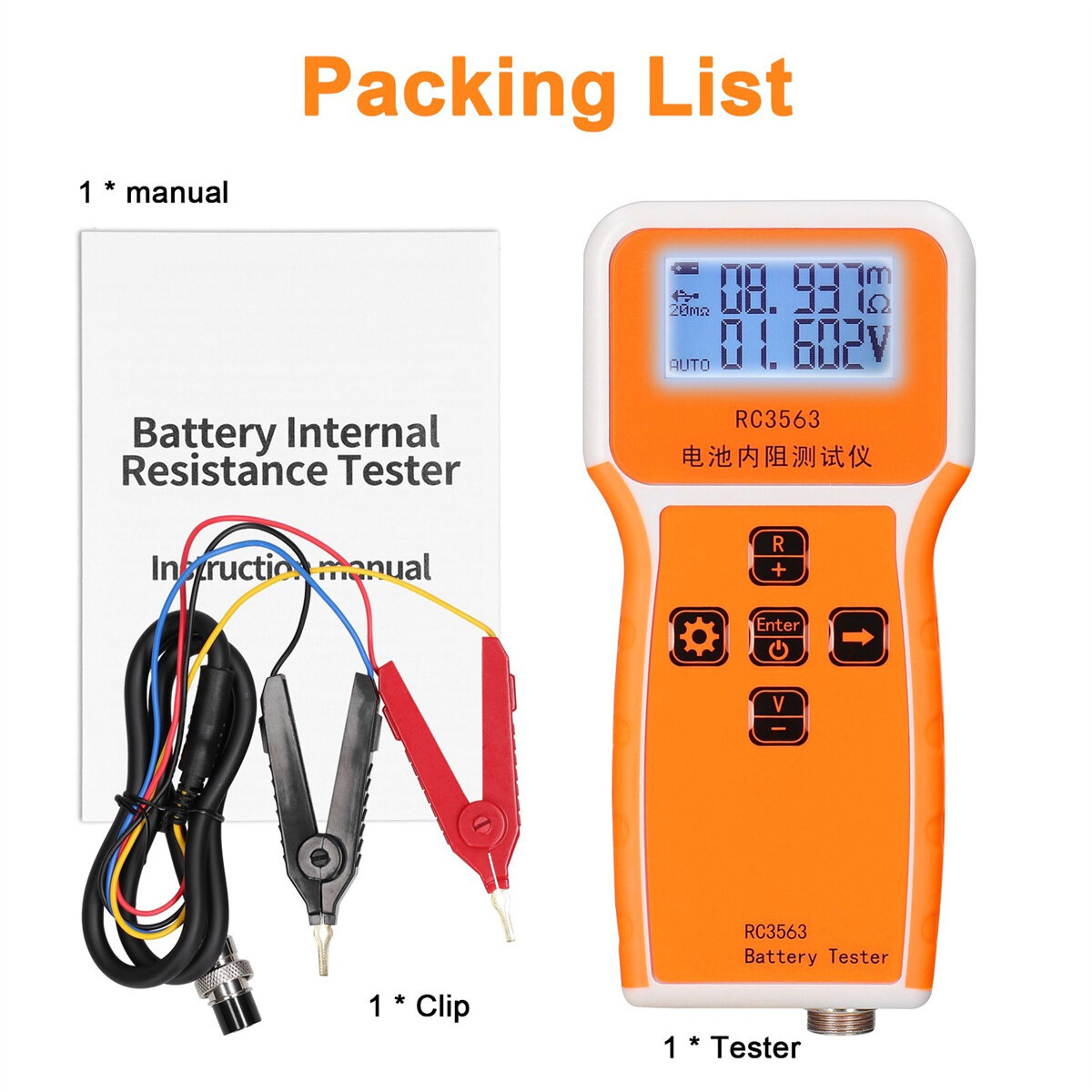

#1

1 x Tester

1 x Probe



OR



#2
