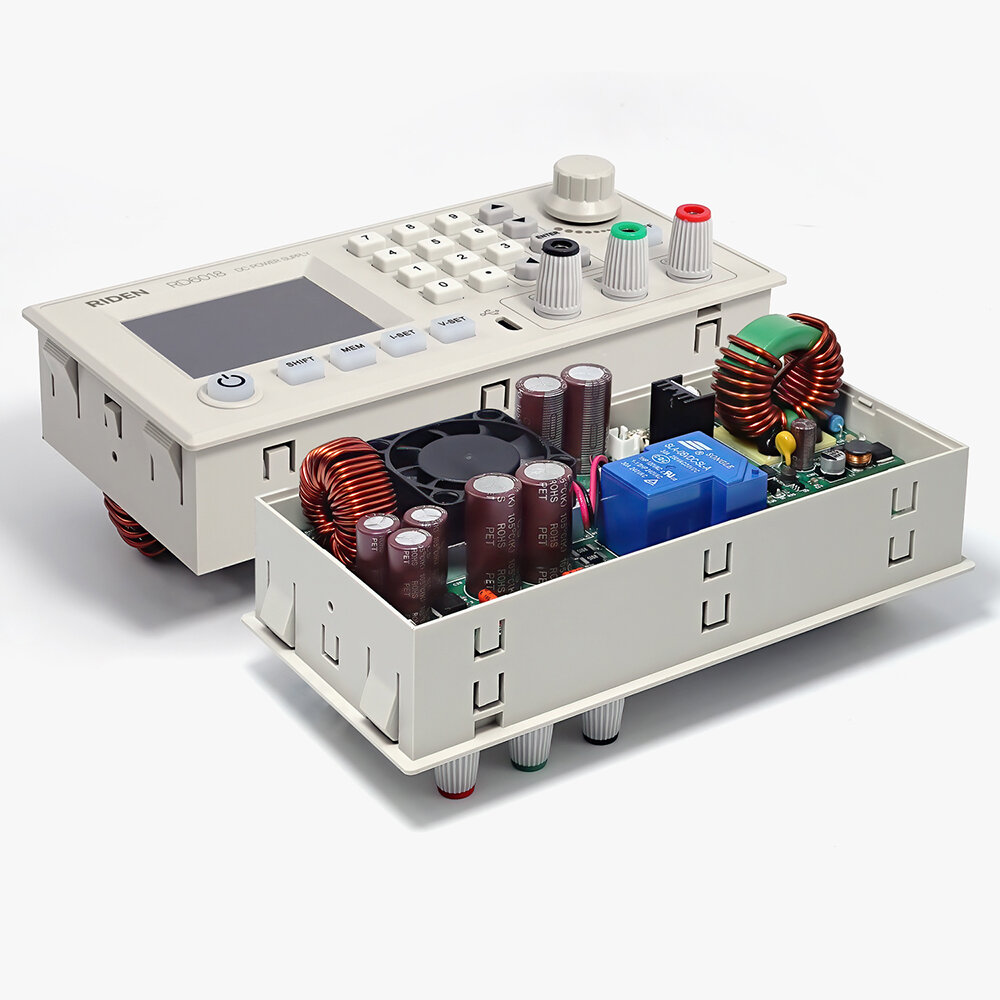

RIDEN® RD6018 RD6018W USB WiFi DC to DC Voltage Step Down Power Supply Module Buck Converter Voltmeter Multimeter 60V 18A 1080W COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Note before buying:

1. RD6018 series has two versions: RD6018 and  RD6018-W,RD6018-W have WIFI board , RD6018 don't have . RD6018-W can use WIFI board to connect APP, also use USB micro cable to connect PC solftware . RD6018 don't have WIFI board, only support PC software by connecting with USB micro cable, no support APP. For wifi board to connect PC software, now it did not support.

Note: WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. For this function, we do not provide any guarantee and technical support,  and we will decide whether to keep this function based on customer feedback.

3. For input AC-DC switch power supply, The input PSU we have is 800W, it is lower than the max output power of RD6018(1080W), if you need full output, please search for 65V 1200W power source, but 1200W PSU is large, it cannot be placed in the S800 case, so you need to make case by yourself

4. There is a BACKUP fuse in the RD6018/RD6018W box, if you burn the fuse, you can insert the fuse in the socket next to the burned one for temporary use, but the fuse cannot support big currnet flow, so it is better to remove the damaged fuse and solder the good fuse on the same position

6. Please use the matching front-end power supply. (Product ID: 1995201) If the instrument is damaged due to the incorrect power supply, we will not provide after-sales guarantee.

	RD6006/	RD6012-W	RD6018-W	RD6006P-W	RD6012PW	RD6024W
	/	/	ID: 1995241			ID:
Suitable power supply			ID: 1995201	/	/	ID: 1995203
Input voltage range	6-70.00V			7-70.00V	7-70.00V	6-70.00V
Output voltage range	0-60.00V			0-60.000V	0-60.000V	0-60.00V
Output current range	0-6.000A	0-12.00A		0-6.0000A	0-6.0000A/0-12.000A	0-24.00A
Output power range	0-360W	0-720W		0-360W	0-720W	0-1440W
Input voltage measurement resolution	0.01V
Output voltagesetting measurement resolution	0.01V			0.001V		0.01V
Output current setting measurement resolution	0.001A			0.0001A	0.001A/	0.01A
					0.0001A
Battery voltage measurement resolution	0.01V
Input voltage measurement accuracy	±(1%+5 digits)
Output voltage accuracybetween setting and measurement	±(0.3%+3 digits)			±(0.5‰+4 digits)		±(0.3%+3digits)
Output currentaccuracybetween setting and measurement	±(0.5%+5 digits)			±(1‰+6 digits)		±(0.5%+5digits)
Battery voltage measurement accuracy	±(0.5%+3 digits)
Automatic cut off current valuewhen charging	10mA	100mA		Set by yourself	Set by yourself	Set by yourself(higher than 100mA)
Output ripple typical	100mV VPP	250mV VPP@6A		20mV VPP		100mV@12A，150mV@24A VPP
Working temperature range	-10℃~40℃
External sensor Temperature range:	-10℃~100℃/0℉~200℉
External sensor Temperature accuracy:	±3℃/±6℉
Constant voltage moderesponse time	2ms (0.1A-5A Load)
Constant voltage mode load regulation	±(0.1%+2 digits)
Constant current mode load regulation	±(0.1%+3 digits)
Capacity measurement range	0-9999.99Ah
Energy measurement range	0-9999.99Wh
Capacity and energy statistical error	±2％
Buck working mode	Voltage drop >1Vand >10%			(input voltage÷1.1) -2		(input voltage÷1.1) -1
Cooling fan start condition	Output voltage>40V or Output current>4A or System temperature>45	℃		Output current >4A or System temperature>45	Output current>4A or System temperature>50	Output current>8A or System temperature>45
Cooling fan shut down condition when working	Output voltage<40Vand Output current<3.9Aand System temperature<45℃			Output current <3.9A and System temperature <45℃	Output current <3.9A and System temperature <50℃	Output current <7.9A and System temperature <45℃
Over temperature protection	System temperature>80℃
Screen brightness setting	0-5(6 level in total)
Screen	2.4inch color HD display
Weight(with package)	About 0.58kg	About0.61kg	About0.68kg	About0.62kg	About 0.66kg	About 0.72kg
Product dimension	167*81*65mm		167*81*69mm	167*81*65mm		167*81*69mm
Support USB communication	YES
Support WiFicommunication	Only W version has WiFi communication

RD6018(W) operation instructon: Click here to open

download at file link (Support android 5.0 -android 10.0): Click here to open

Instruction video for manual:

https://youtu.be/irTbqfqtgU0

https://youtu.be/S6Kan66dNsk

https://youtu.be/eo5saPjOGpo

https://youtu.be/zxpmasJyQ6Y

https://youtu.be/Q9d3rIgIrOc

https://youtu.be/f51VDiY2VHE

https://youtu.be/i1kTeurS13I

https://youtu.be/Um4NQObeeJE

https://youtu.be/nH2HYwop0TE

https://youtu.be/lXSw1CM9IY8

https://youtu.be/QwyBEUCnp9c

https://youtu.be/hqrF4keTfbE

https://youtu.be/mjt1RMaah1Y

https://youtu.be/NOoLfDw0DiY

https://youtu.be/c9sn1wY2mjE

https://youtu.be/vuVhBsohWts

RD6018 version:

1 x RD6018 power supply without WiFi module

RD6018W version:

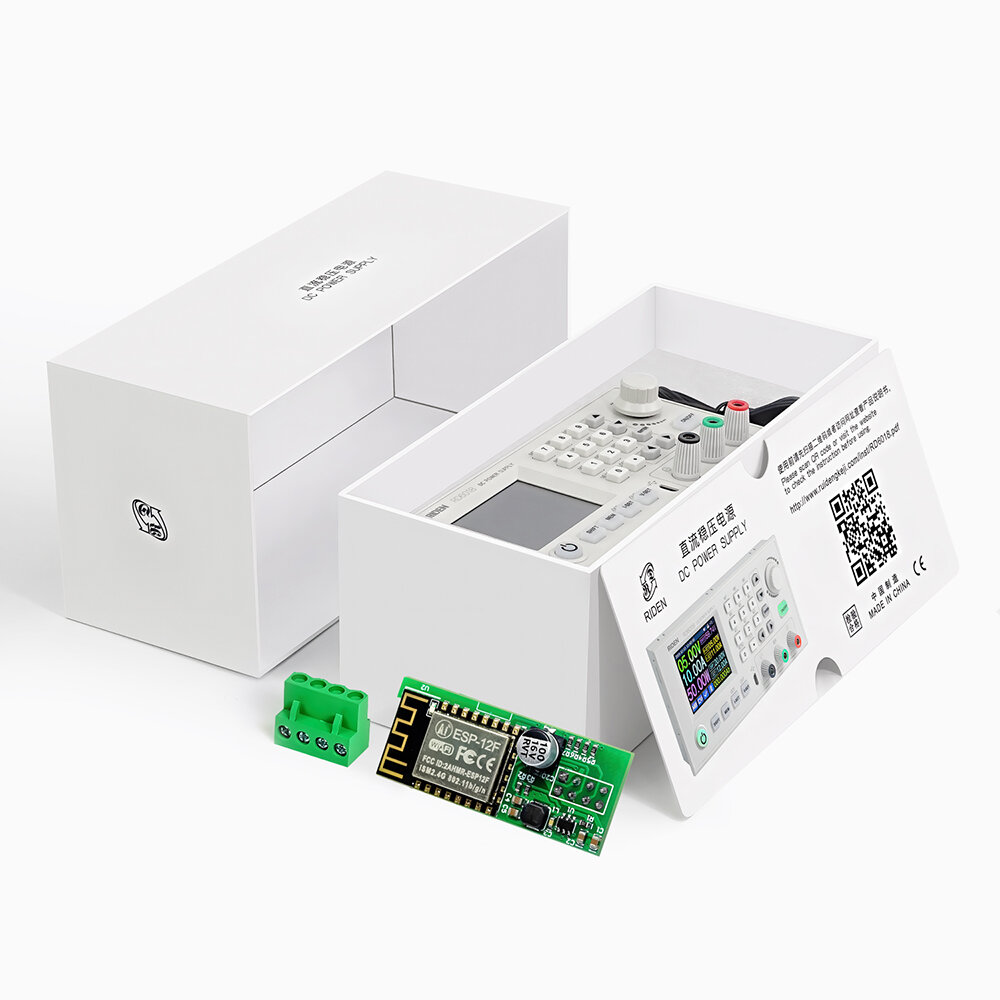

1 x RD6018W power supply with WiFi module
