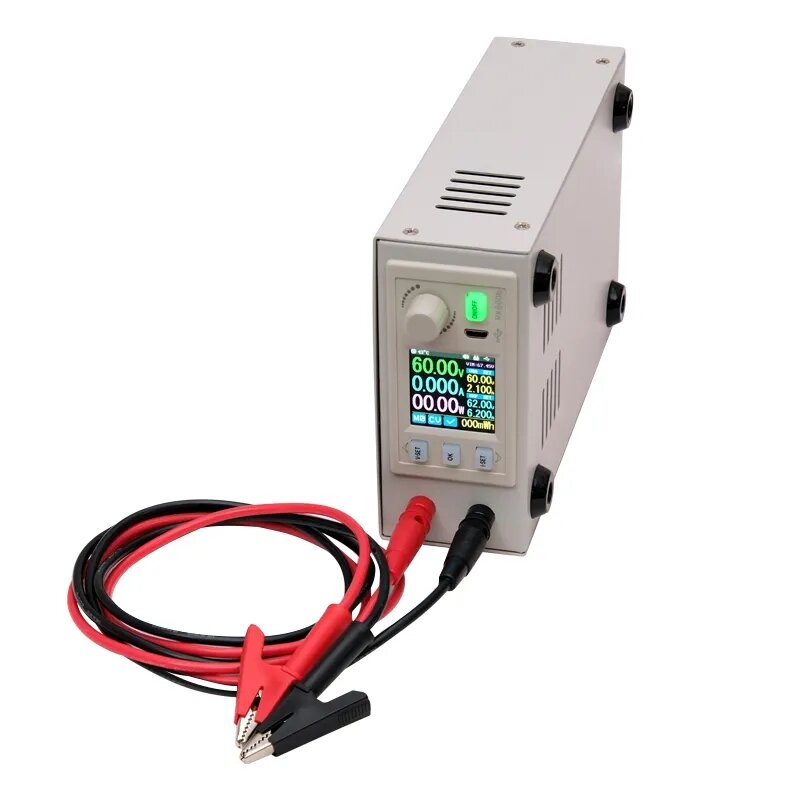

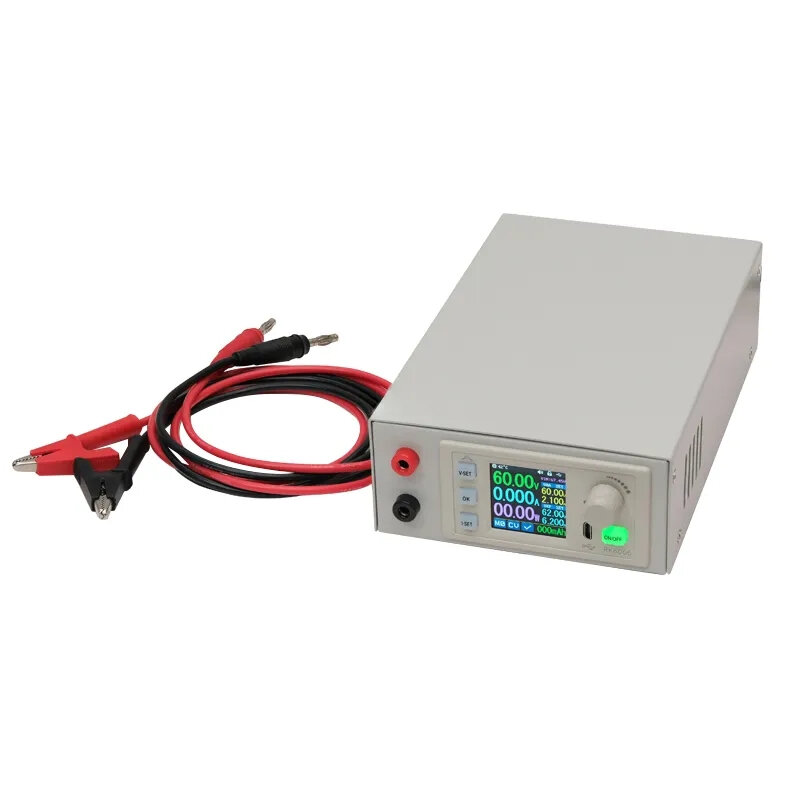

RIDEN® RK6006-C 60V 6A 4 digit Adjustable AC to DC Step Down Voltage Bench Power Supply Module Current Regulated COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

NOTE:

File Download:

https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing

https://drive.google.com/drive/folders/1V9CMtTBnc4Ww-sNHrabN8522YPYQcrNI?usp=sharing

Input voltage range	100-120V/200-240V AC
Output voltage range	0-60.00V
Output current range	0-6.000A
Output power range	0-360W
Output voltage setting/reading resolution	0.01V
Output current setting/reading resolution	0.001A
Output voltage setting/reading accuracy	±(0.3%+3 digits)
Output current setting/reading accuracy	±(0.5%+5 digits)
Output ripple typical	100mV VPP
Working temperature range	-10℃~40℃
Constant voltage moderesponse time	2ms（0.1A-5A Load）
Constant voltage mode load regulation	±(0.1%+2 digits)
Constant current mode load regulation	±(0.1%+3 digits)
Capacity measurement range	0-9999.99Ah
Energy measurement range	0-9999.99Wh
Capacity and energy statistical error	±2％
Over temperature protection	System temperature>90℃
Screen brightness setting	0-5(6 level in total)
Screen	1.54 inch 240*240 color LED display
Weight(with package)	About 1.3 kg
Product dimension	200*115*57mm
Support USB/Bluetooth communication	YES

: Ripple measurement method: noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope, with a 0.1uF parallel capacitor at the output terminals

FAQ:

SOFTWARE QUESTIONS:

Package Include:

1x RIDEN RK6006-C Machine

1x X15A Output Cable

1x Backup Fuse

1x Micro Communication Cable
