Rocker Module for Micro:bit Dual Axis Button XY Gamepad Sensor COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

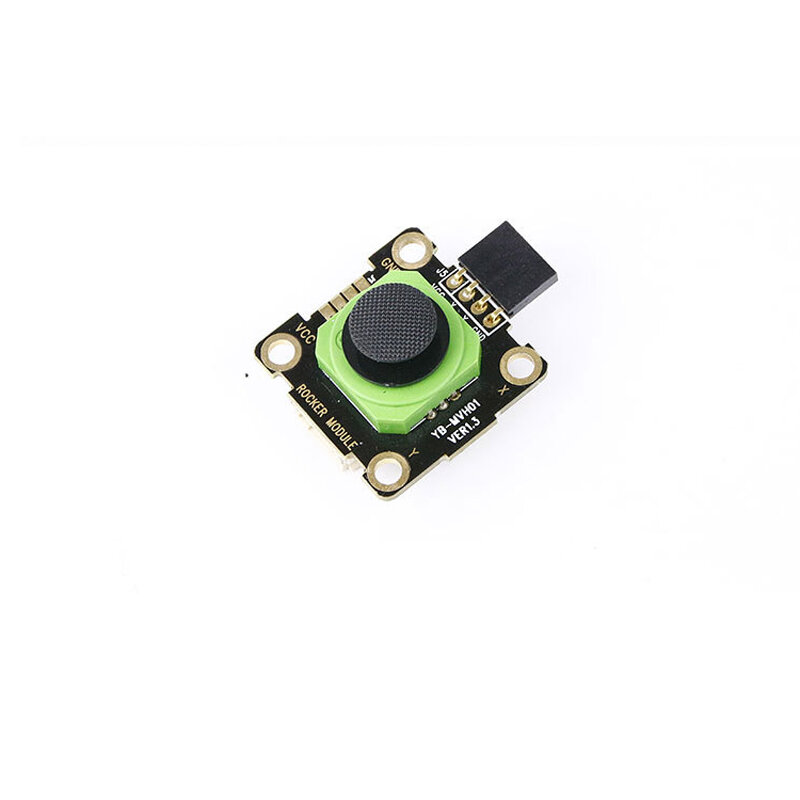

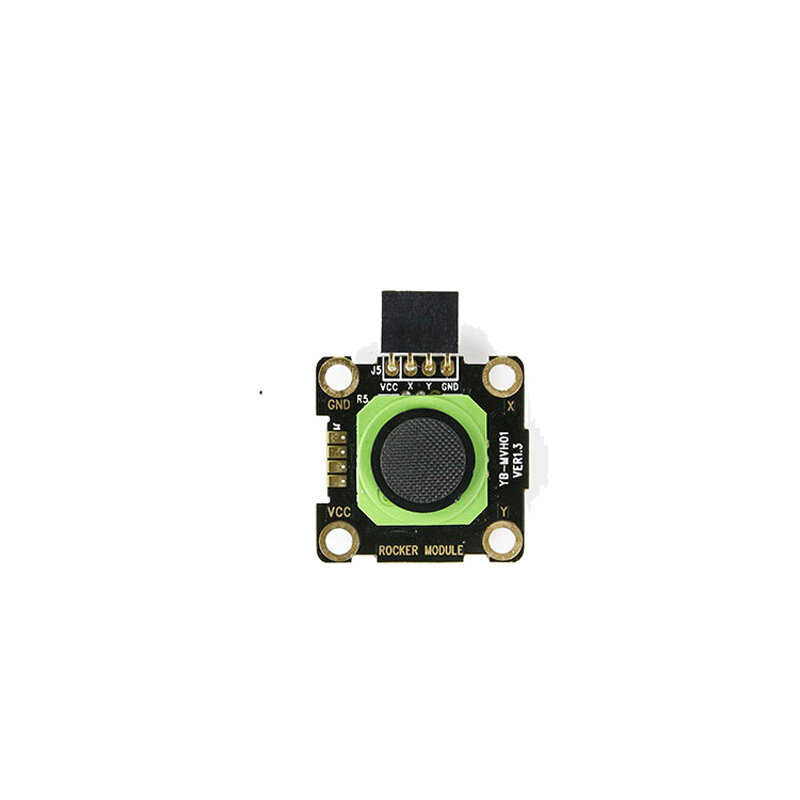

Introduction of Rocker module

1.

The rocker module can be regarded as a potentiometer with two channels, which can output the analog values of the X and Y axes. When moving to the left, the smaller the X value of the output. When moving to the right,the larger the X value of the output. When moving to the up,the larger the Y value of the output. When moving to the down,the smaller the Y value of the output.

The output analog range of the X and Y axes is from 0 to 1023.



2.

2.1 Game machine rocker control.

2.2 Remote control car control direction.



3.



3.1 Rocker module possess 4 Alligator clip port, Corresponding to GND, VCC, Y and X. The X and Y pins are the signal output pins of the rocker module.

3.2 4 pin female socket.

3.3 PH2.0 cable interface.

Working Voltage: 3.3V/5V

Paramaters:


GND: Ground

Y: Output the coordinate simulation value in the Y axis direction

Package Included:

1 x Rocker Module
