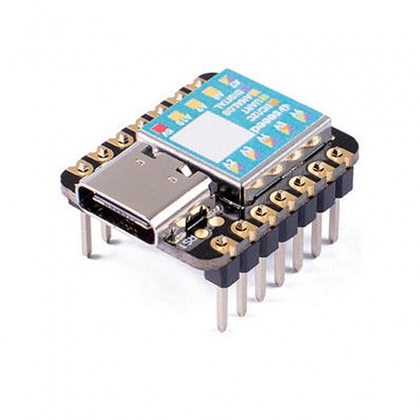

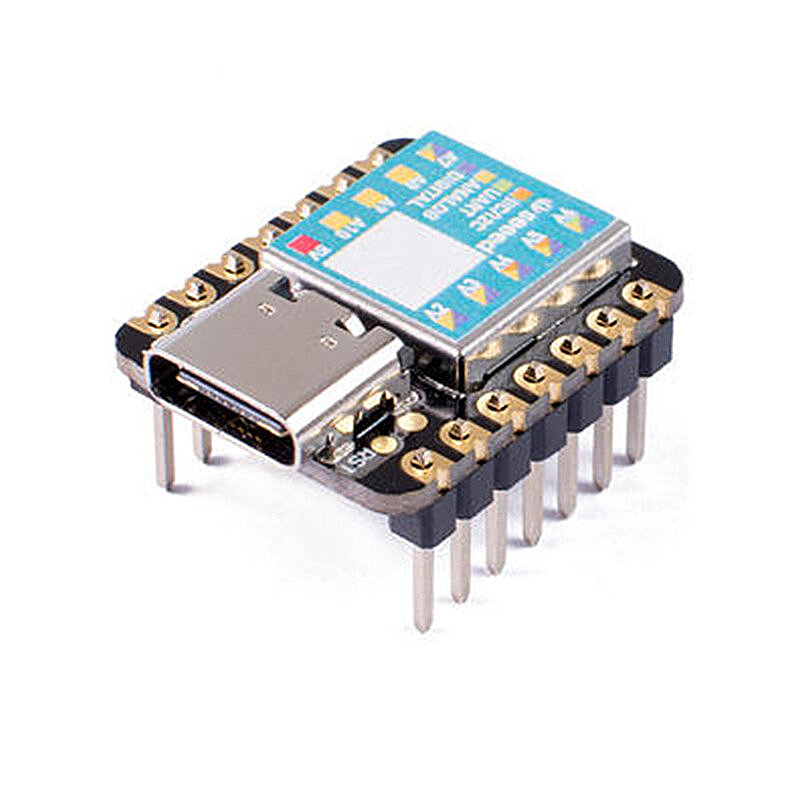

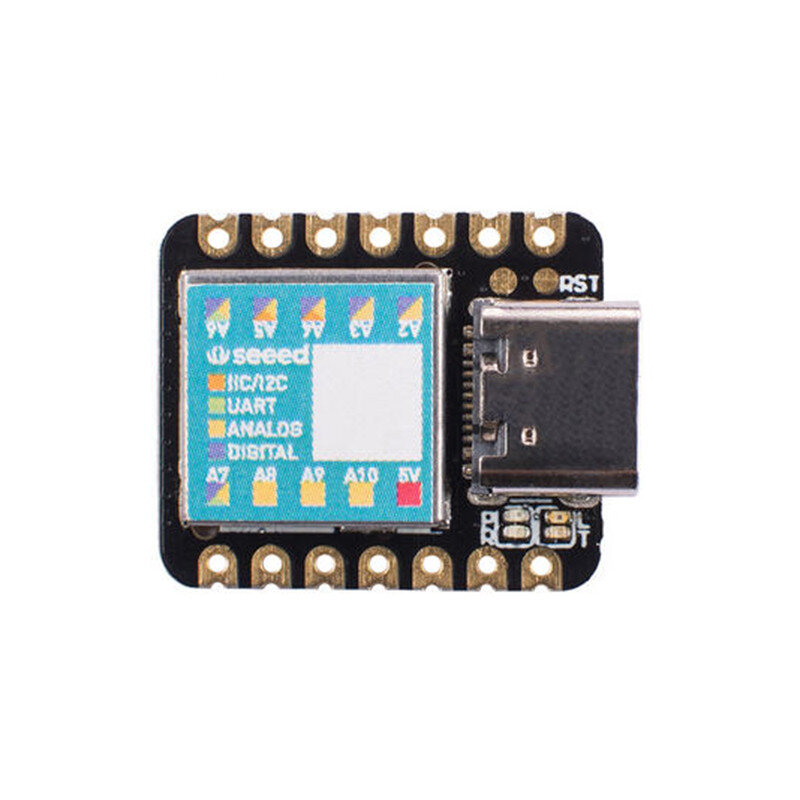

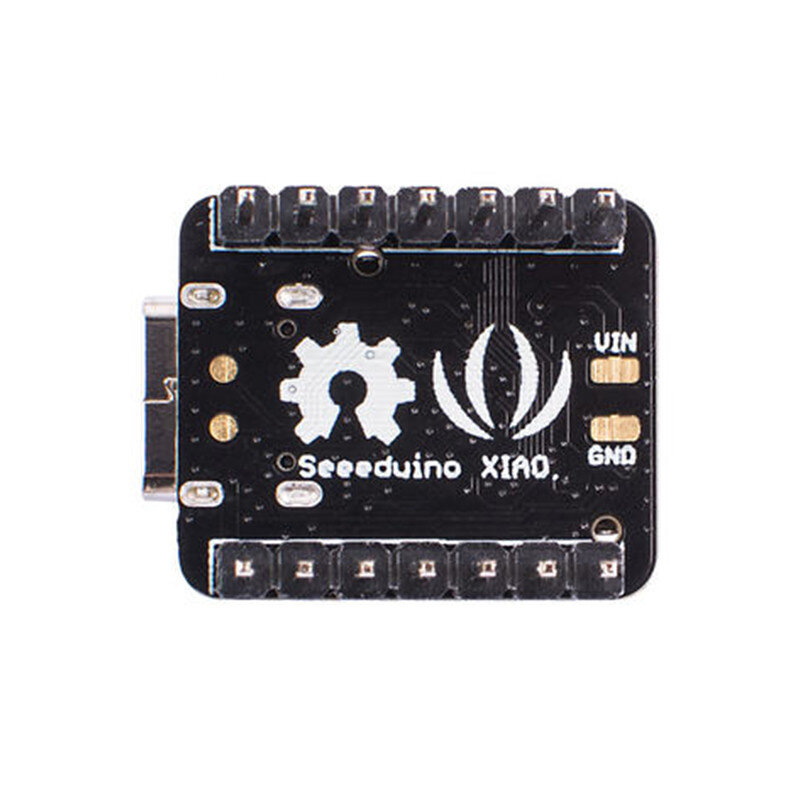

Seeeduino XIAO Microcontroller Cortex M0+ SAMD21G18 Development Board for Arduino COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description:

Specifications:

CPU: ARM Cortex-M0+ CPU(SAMD21G18) running at up to 48MHz

Storage: 256KB Flash,32KB SRAM

I/O PINs: 14 GPIO PINs,11 analog PINs, 11 digital PINs, 1 DAC output Pin

Interface: 1 I2C interface,1 UART interface, 1 SPI interface

Power supply and downloading interface: USB Type-C interface

LEDs: 1 user LED, 1 power LED, two LEDs for serial port downloading

Reset button: two reset button short connect to reset

Power Pads: For the battery power supply

Software compatibility: Compatible with for Arduino IDE

Projection cover for protecting the circuit

Dimensions: 23.5x17.5x3.5 mm

Package Include:

1× Seeeduino XIAO Microcontroller

2× 7 Pins Header

4× Pasters

Typical Application
