SmartMeter 100A LCD KWh Energy Meter with Three-Phase Backlight Guide Rail for Home Use Energy Monitoring 3*127/220VAC Power Consumption Measurement CO

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Three-phase four-wire electronic type energy meter with a reference current of 100A.

High accuracy level of 1.0 and constant pulse of 400imp/kWh for precise energy monitoring.

LCD display with 6 + 2 digits for clear visibility of readings.

Low power consumption of ≤2W, 10VA, ensuring energy efficiency.

Durable construction with a combination of metal and ABS material, weighing only 350g for easy installation and handling.



Material: Metal + ABS

Reference Voltage: 3127/220V, 3230/400V

Reference Current: 100A

Accuracy Level: 1.0

Rated Frequency: 50Hz/60Hz

Constant Pulse: 400imp / kWh

Display: LCD 6 + 2

Power Consumption: ≤2W, 10VA

Starting Current: 0.004Ib

Operating Temperature: -20 ~ 55°C

Storage Temperature: 25 ~ 70°C

Operating Voltage: 0.9-1.1 Rated Voltage

Utmost Voltage: 0.8-1.15 Rated Voltage

Average Humidity Value of Year: ≤75%

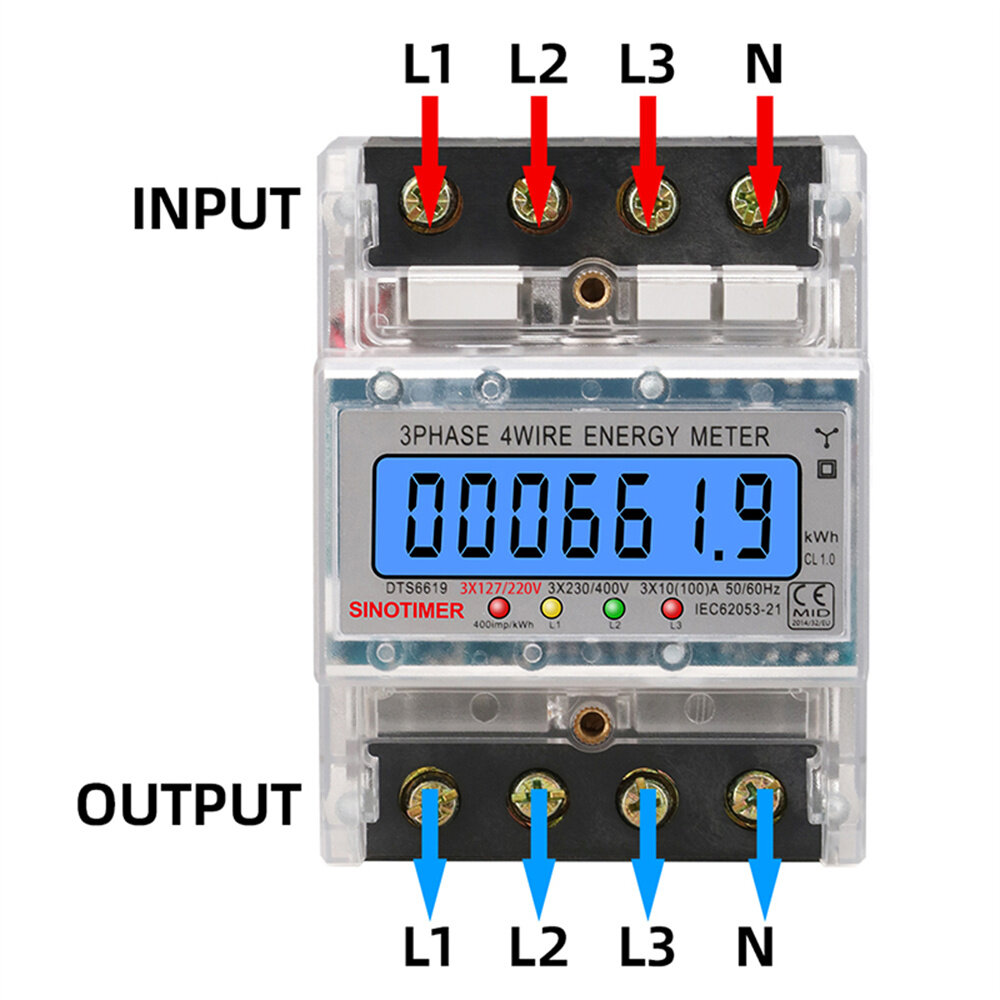

Type: Three Phase Four Wire Electronic Type

Weight: 350g

Optinoal Shell Color: White / Transparent



1 x Energy meter (Shell color as your choice)

1 x English operation manual
