Features:
Infrared detector type
Vanadium Oxide Uncooled Infrared Focal Plane
Infrared resolution
160x120
Infrared response band
8 to14μm
Cell size
12μm
NETD
≤50mK @25°C,@F/1.1
Lens focal length
3.2mm
IFOV
3.75mrad
Field angle
35°×27°
Focus mode
Free focus
Temperature measurement range
-20°C to +550°C (-4°F to 1022°F)
Measurement accuracy
±2°C (35.6°F) or ±2%
Measurement resolution
0.1°C
Temperature measurement mode
Center point/hot and cold spot tracking
Color palette
Rainbow, iron oxide red, cold color, black & white,
white & black
Emissivity setting
Adjustable from 0.01 to 1.00
Thermal imaging frame rate
≤25Hz
Visible light resolution
640×480
Display size
2.8-inch(240×320)
Image display mode
Infrared/visible light/dual light fusion
Lighting system
LED fill light
Device storage
Built-in 4G eMMC
(user available storage space is about 3G)
Storage Image/Video Format
JPG/MP4
Image/video export method
USB connection to computer export
Image analysis function
Support offline analysis on PC
Menu language
English、Chinese、Italian、German
Battery Type
Removable Rechargeable Lithium Battery (18650)
Battery capacity
2200mAh

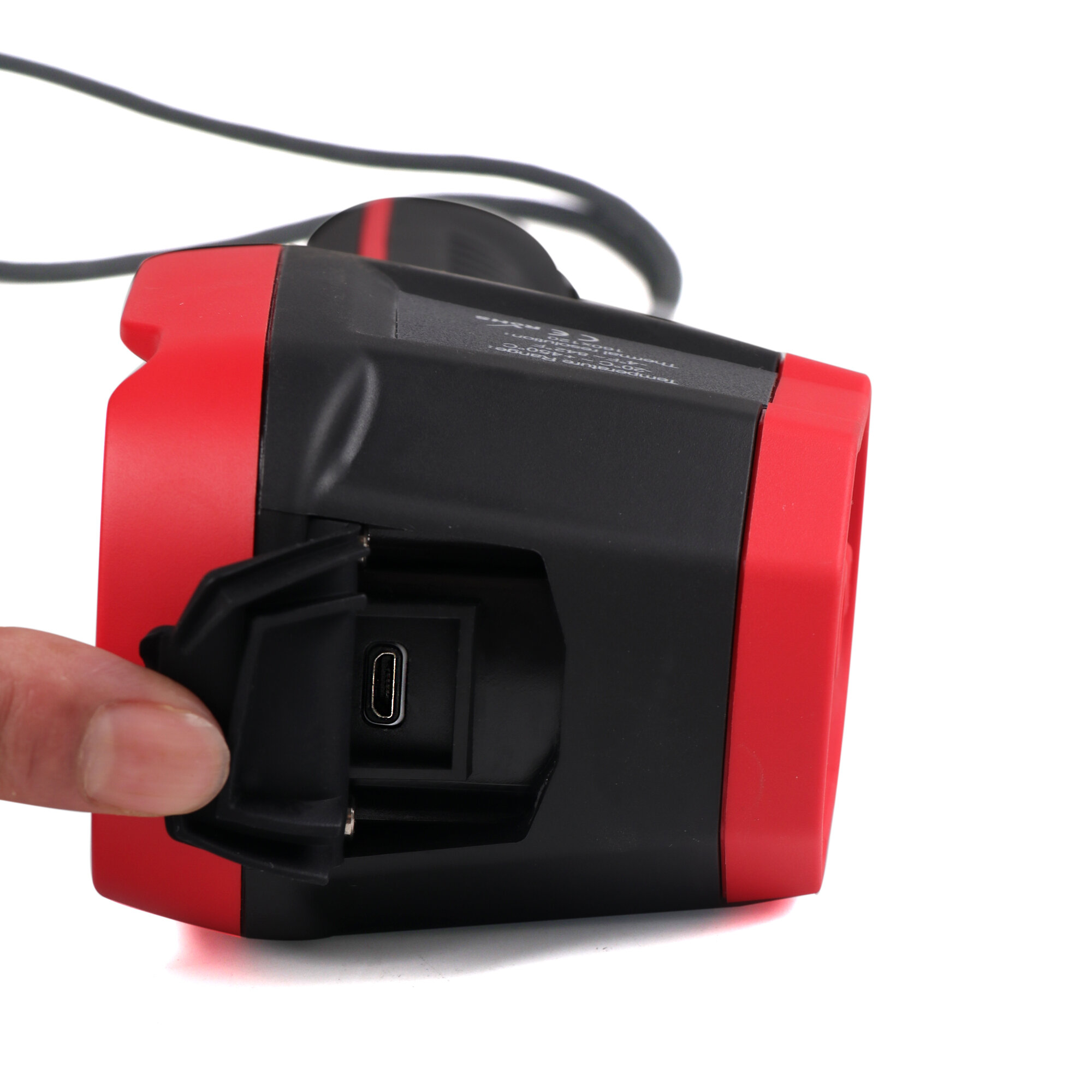

Power interface
Micro USB
Power configuration
5 minutes / 20 minutes / no automatic shutdown
Work temperature
-10°C to +50°C
Storage temperature
-20°C to +60°C
Relative humidity
10% to 85%RH (non-condensing)
Product weight
389g
Product size
96mm×72mm×226mm

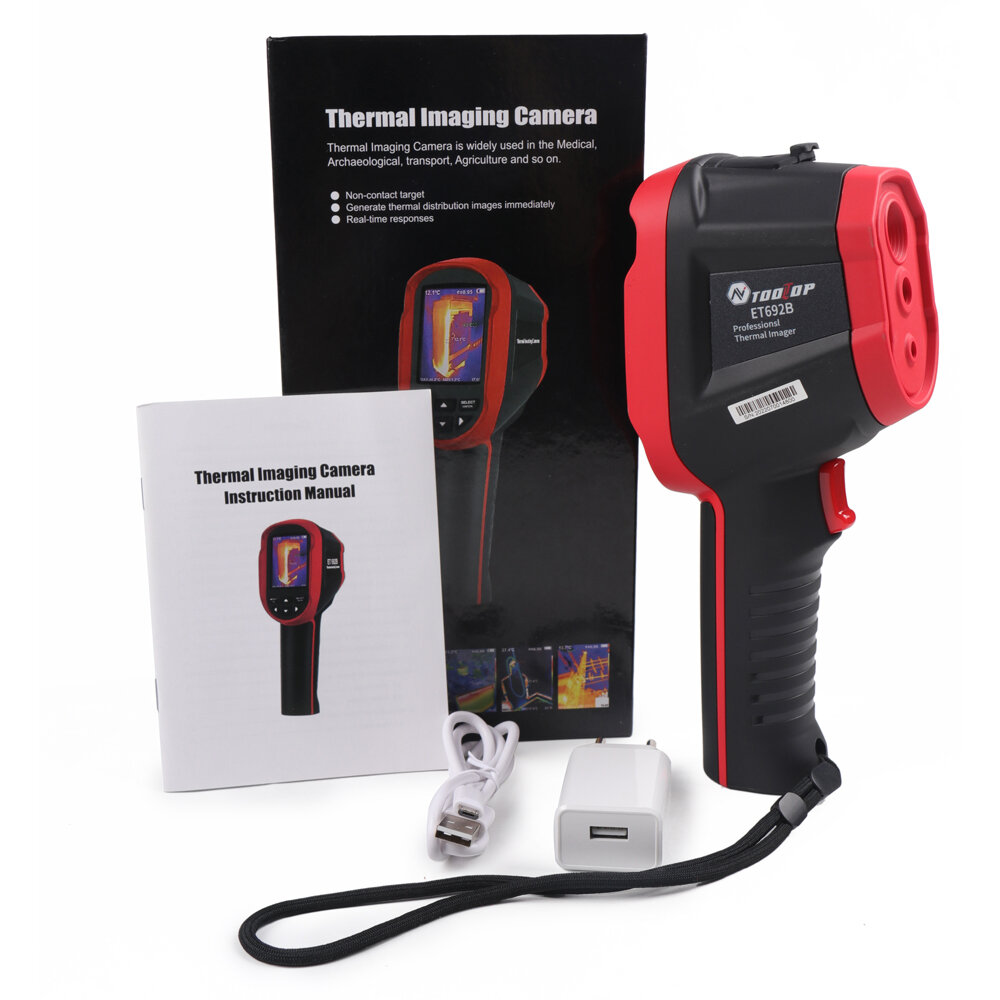

1 x Charger (EU Plug)1 x USB Cable1 x English Manual1 x Packing Box >>Please click here to download the English manual<<
