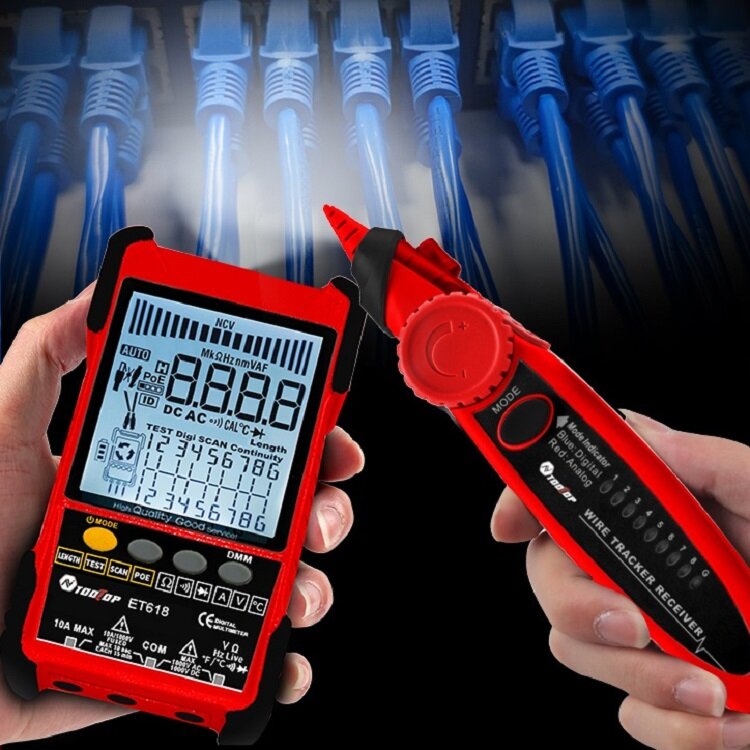

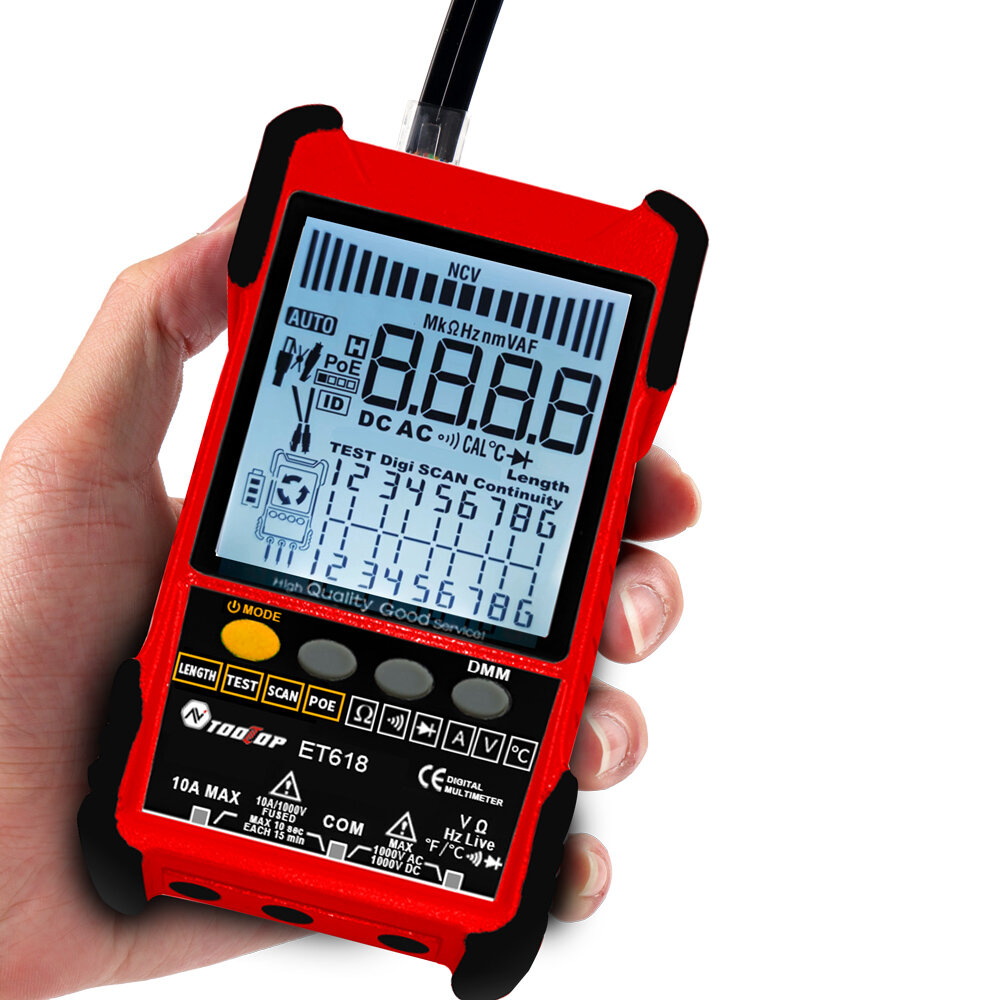

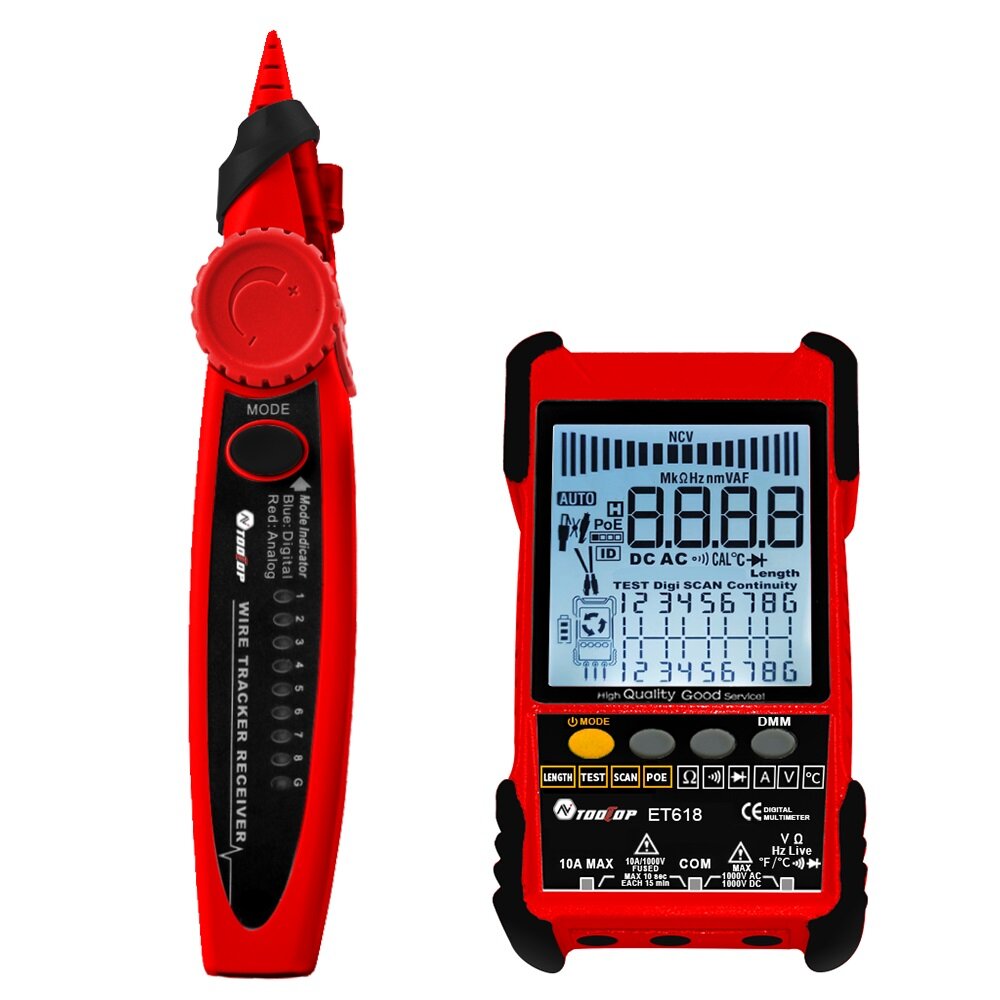

TOOLTOP Large LCD Screen Network Cable Tester + Multimeter 2 in 1 400M/500M Network Cable Length Measure AC DC Current Voltage Measurement Anti-noise Line Tracker ET616 ET618

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>Please click here to download the English manual<<

(Only ET618) l

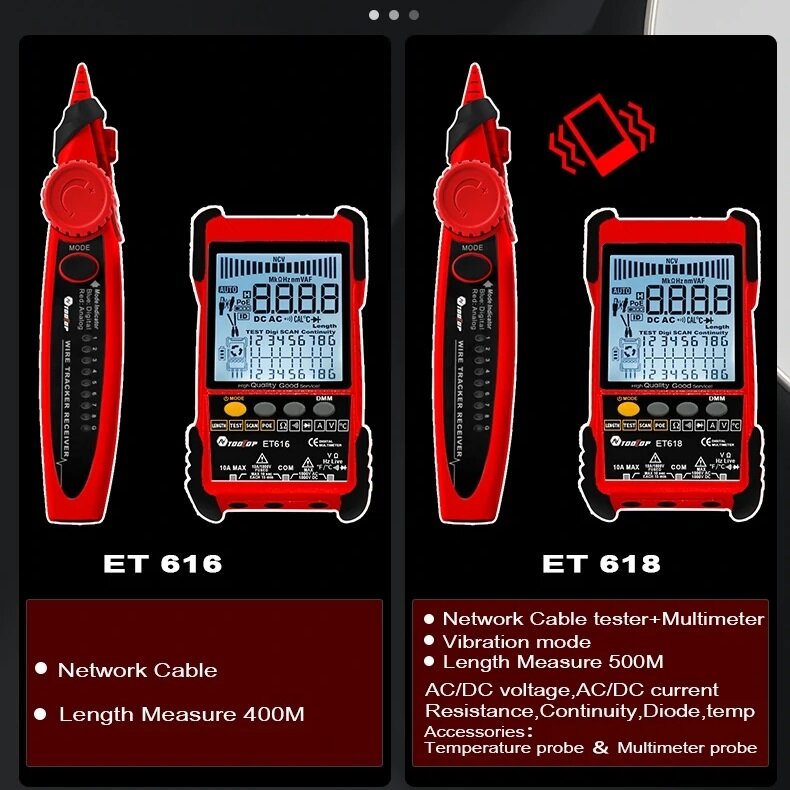

Model	ET616	ET618
	√	√
	√	Multimeter function
Switch Tracing w PoE
Cable Mapping		√
Switch indicators flashing
Noisy Free Digital Tracing	Digital	Digital /Vibration
Voltage Testing		AC DC Voltage
PoE Voltage Measuring	Voltage Polarity	Voltage Polarity

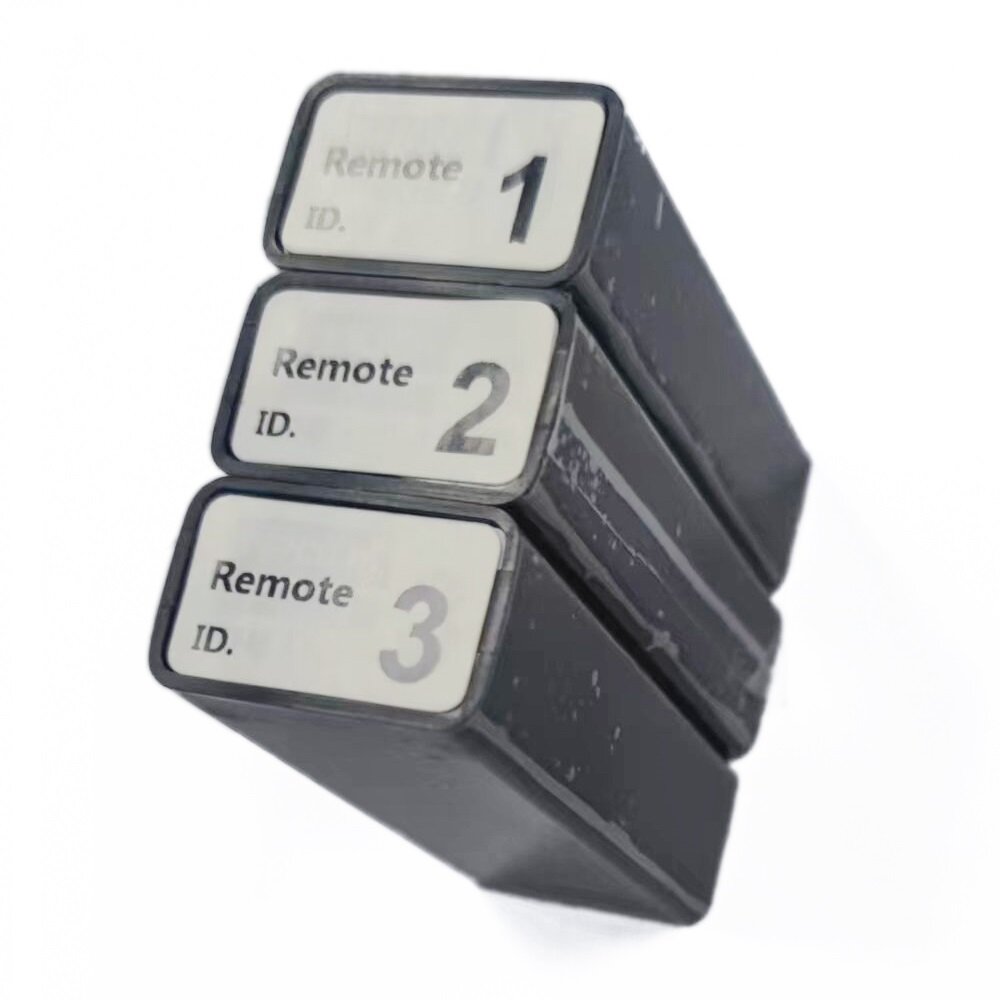

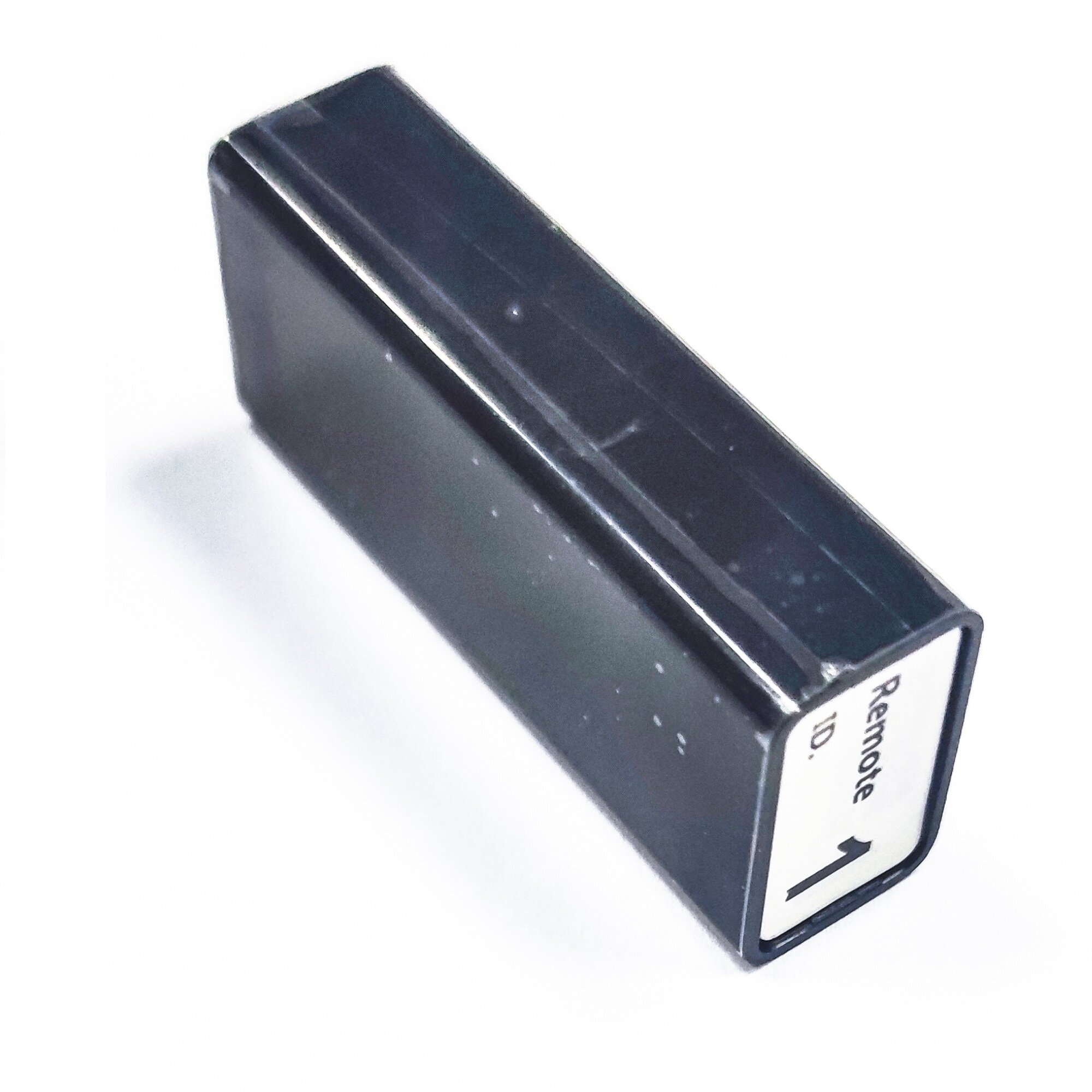

Remote ID Mapping	Optional	Optional
Analogue Bargraph
NCV Detection
Difference

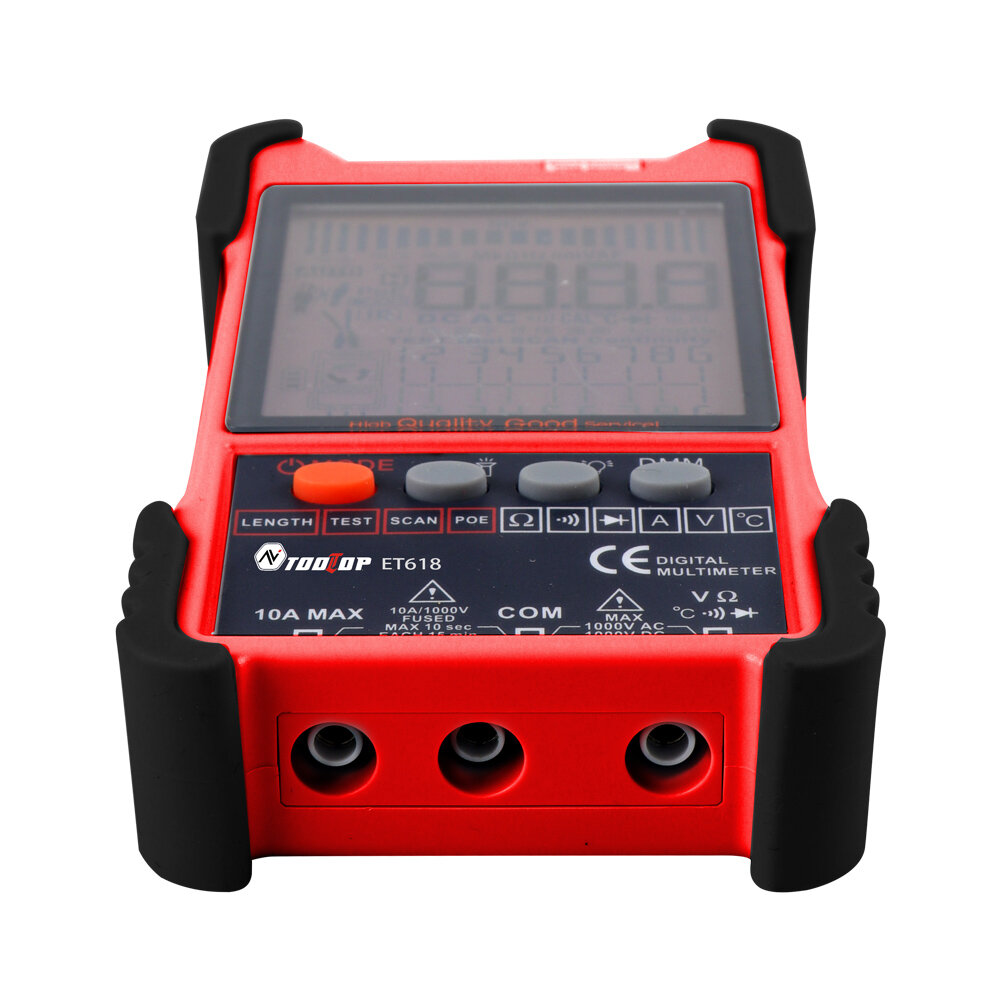

Multimeter Functions
Diode
DC Voltage		400mV ~1000V±(0.8%+3)
AC Voltage		4V~400V±(1.5%+5)
DC Current		1.0A~10.0A±(1.2%+4)
AC Current		1.0A ~10.0A±(2.0%+5)
Resistance		200Ω ~20MΩ±(2%+6)
Continuity		< 50Ω buzzer beeps
Temperature k type		-20~1000°C±(2.0%+15)

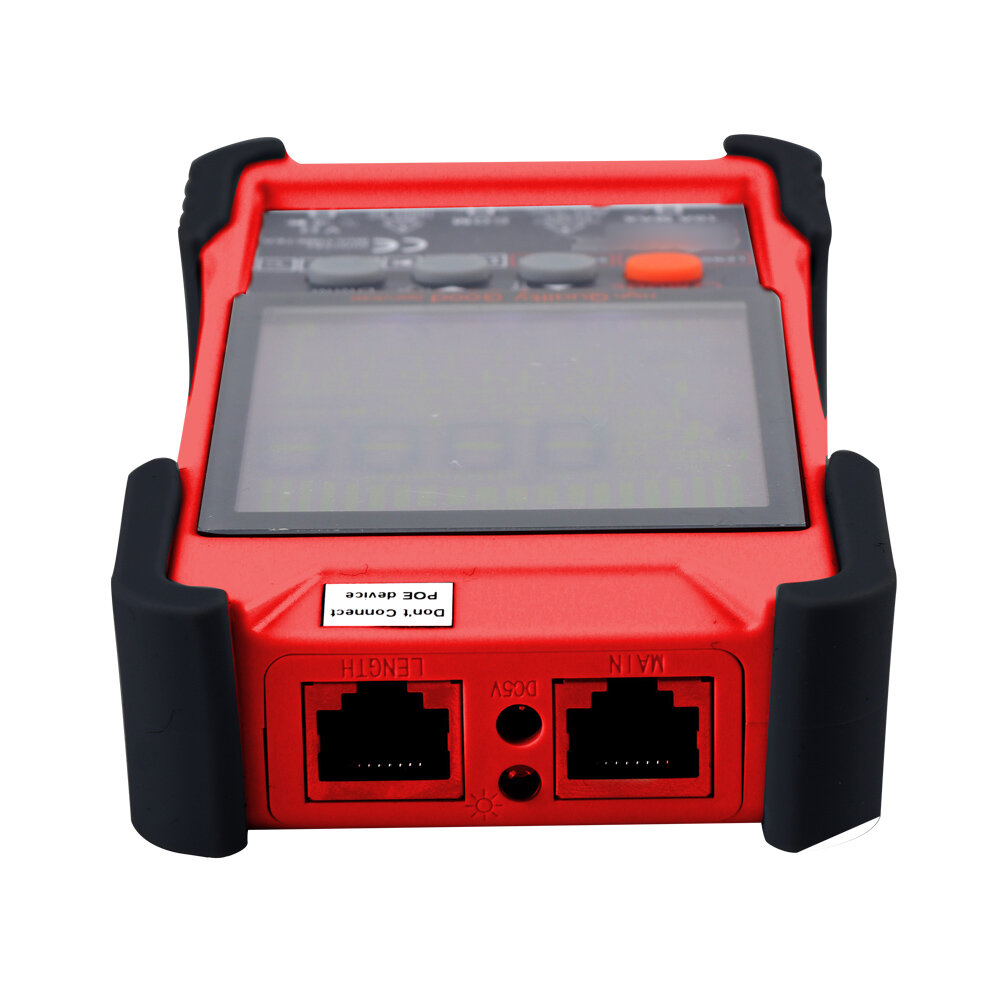

Network Cable Length Measure	400M	500M
BNC Cable Length Measure
Network Cable Short Open Circuit test

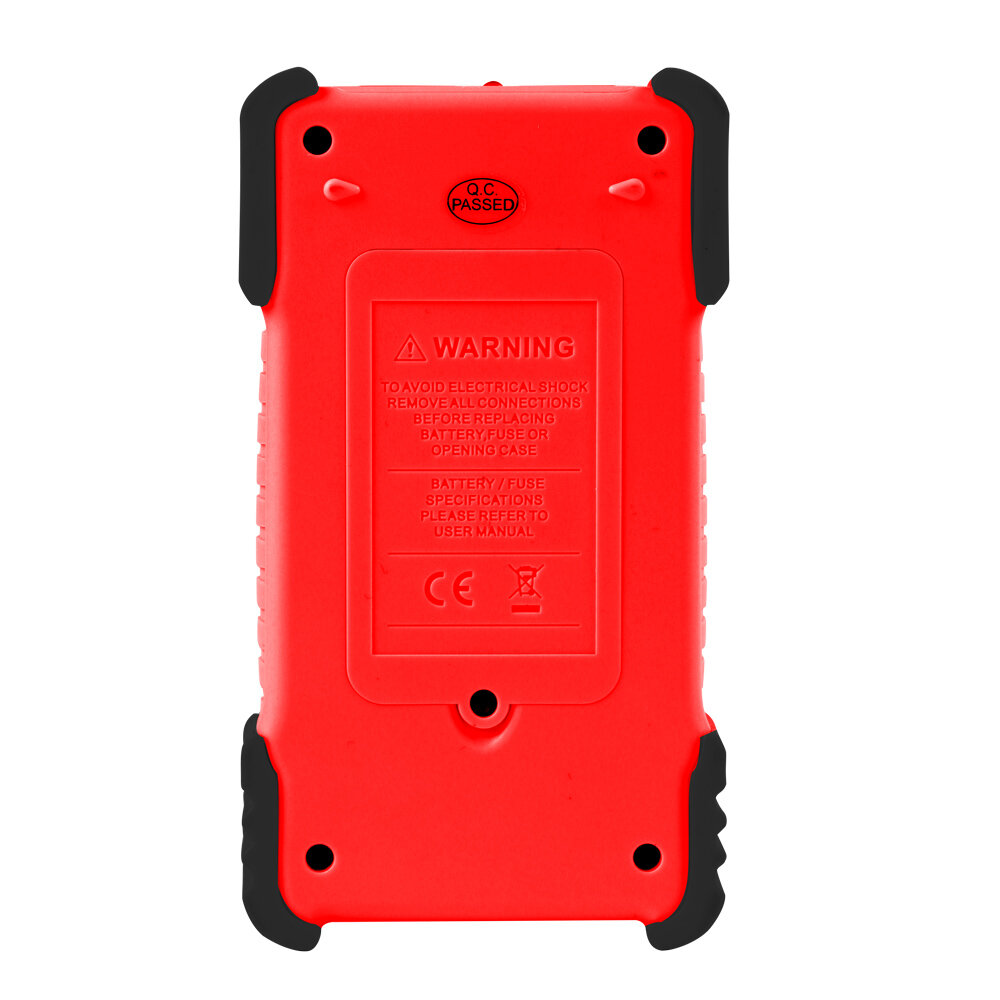

Powered by	Main Body Bulit-in 1250mAH rechargeable Lithium Battery/Receiver 9V Battery
Accessories

1 x Transmissor 1 x Receiver 1 x Alligator Clip cable1 x RJ45 Cable 1 x USB Transformer

1 x Carrying

1 x Multimeter Accessories (Testleads and k type temperature probe)1 x User Manual
