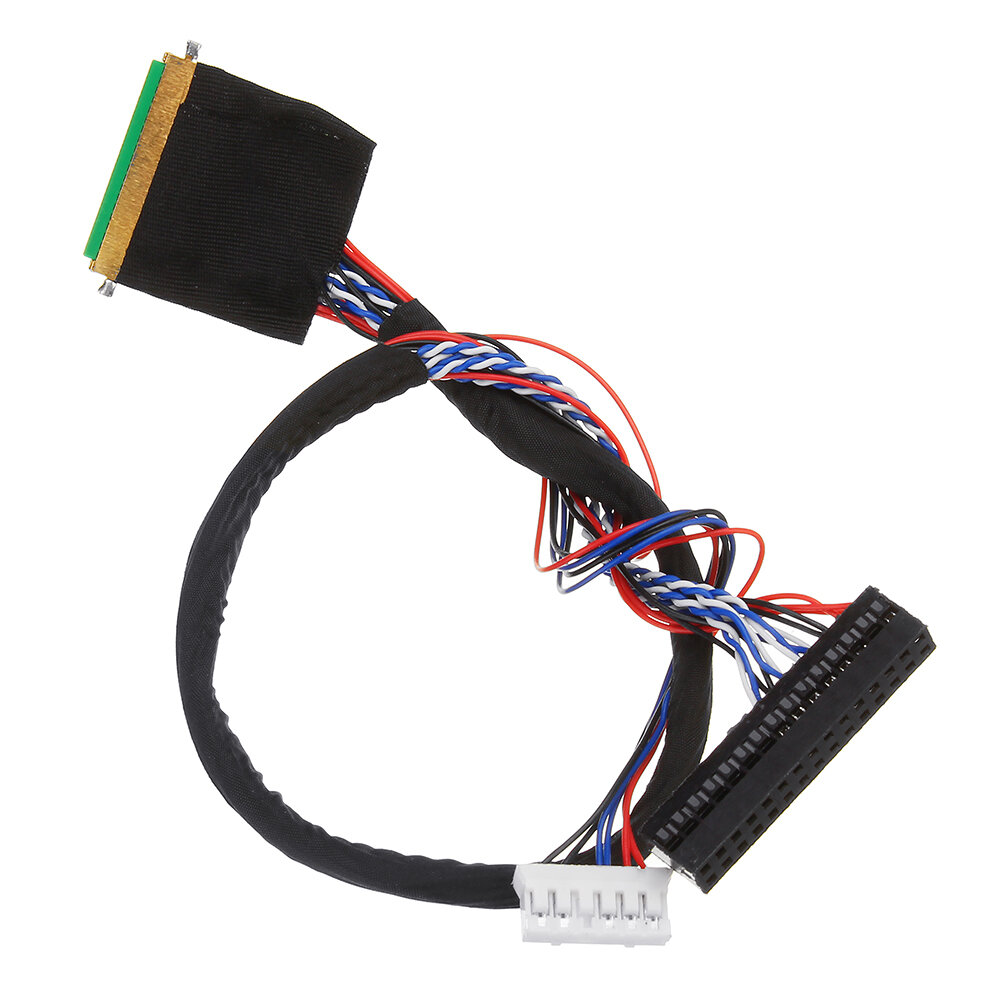

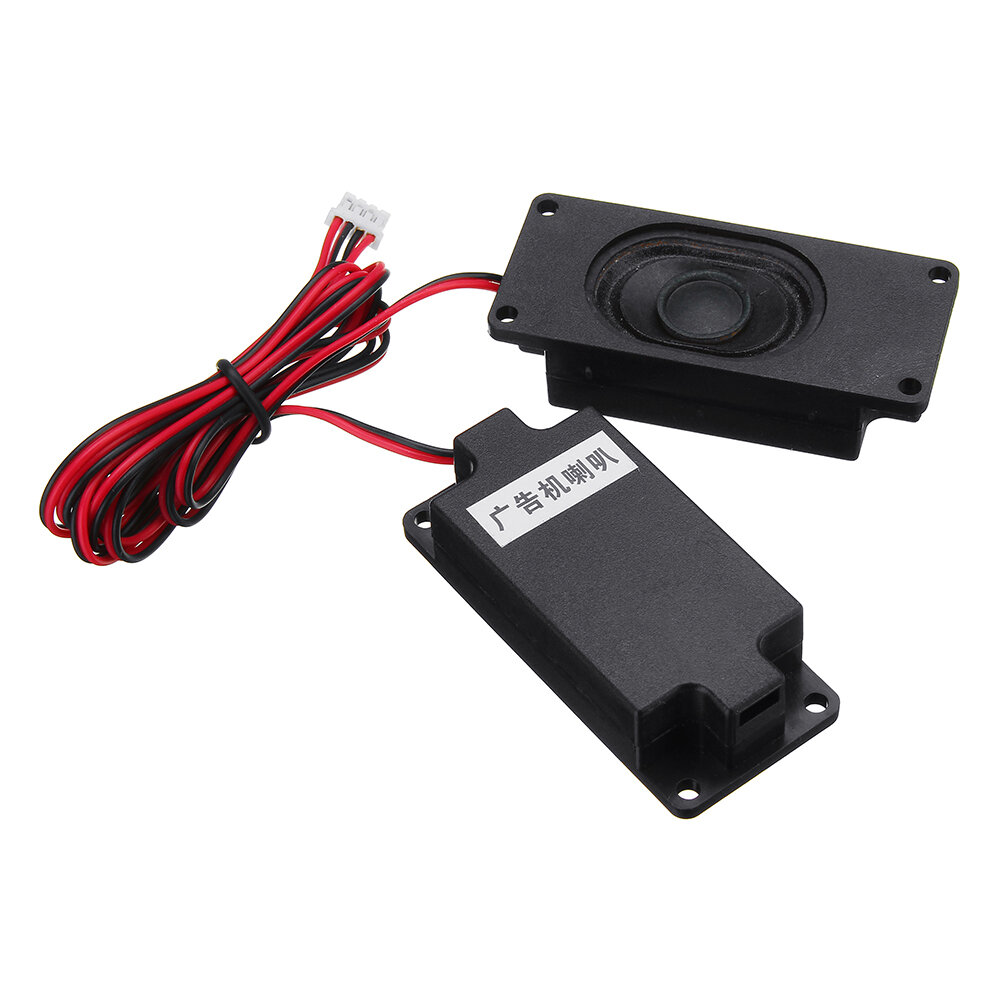

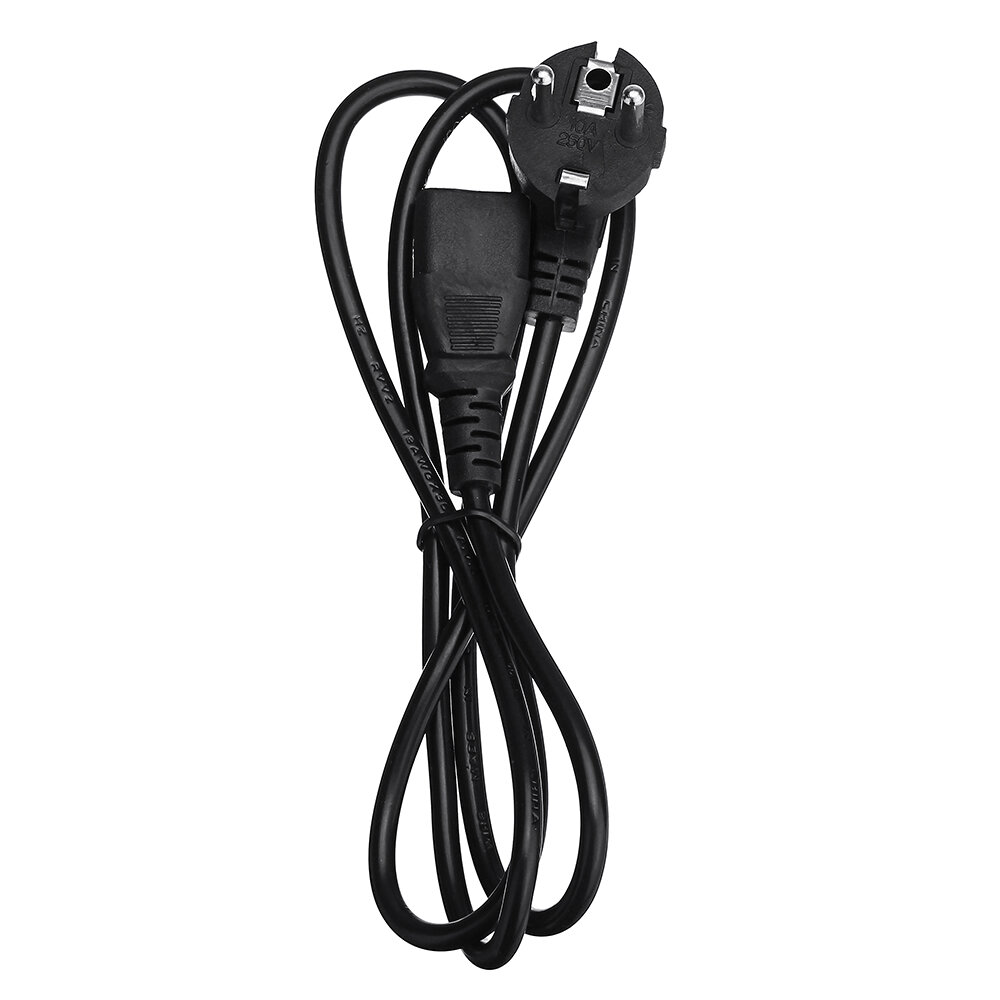

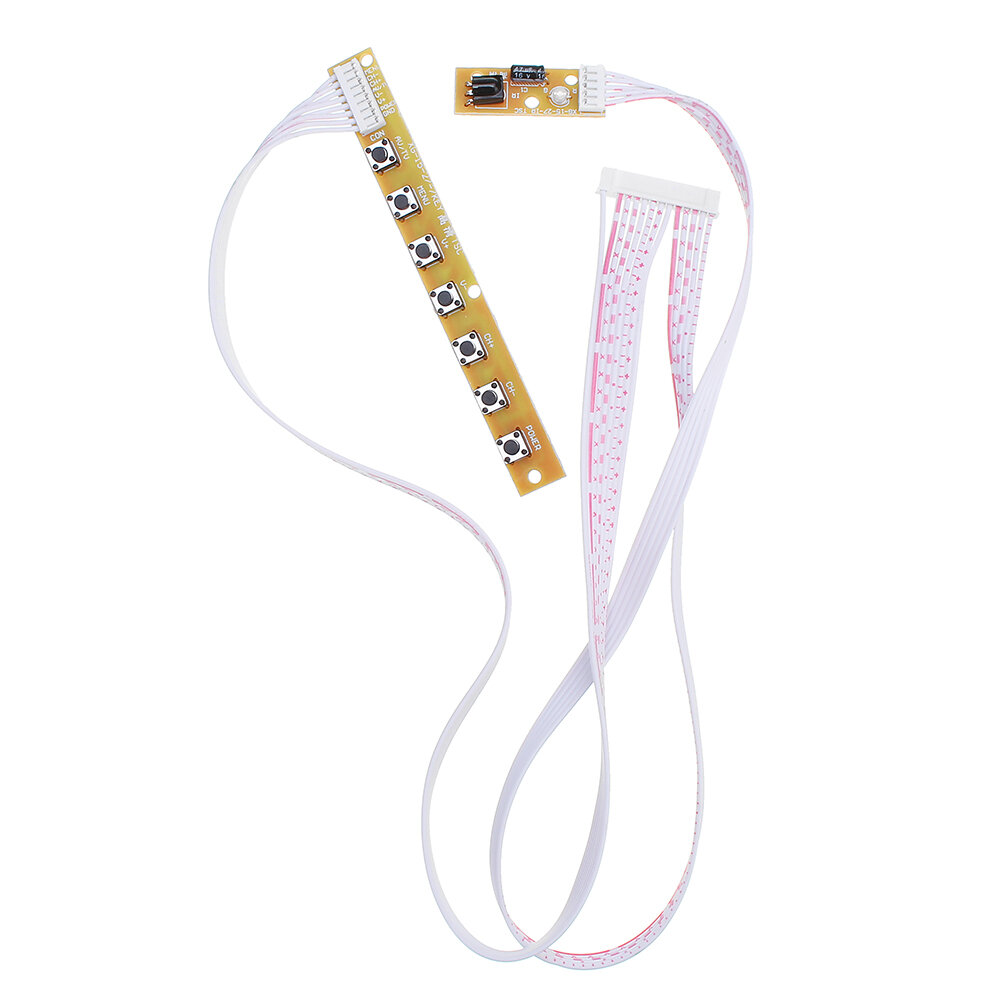

T.SK105A.03 Universal LCD LED TV Controller Driver Board +7 Key button+1ch 6bit 40Pins LVDS Cable+Speaker+EU Power Adapter COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

T.V53.03 Manual: Click here to openT.V53.03 Firmware: Click here to openClick here to open: Click here to openNew Version T.SK105A.03 New Version T.SK105A.03
Note: Since the driver board model is updated frequently, the appearance and chip will be different, please refer to the actual received. If you mind this, please buy carefully.
Please note before buying:
5.
Only supports the resolution of:


Burning method: to record the screen program in the USB flash disk, USB flash disk inserted into board, plug in the keypad, electricity; About after a few seconds, press the keypad lights start alternating red and green flash, flash lights began to write programs (please do not power), light in the slow flash first, after a slow flash flash, will speed up the quick flash, long after the last until the lights stop flashing light is the program written, electricity burn with USB flash disk to complete the program.

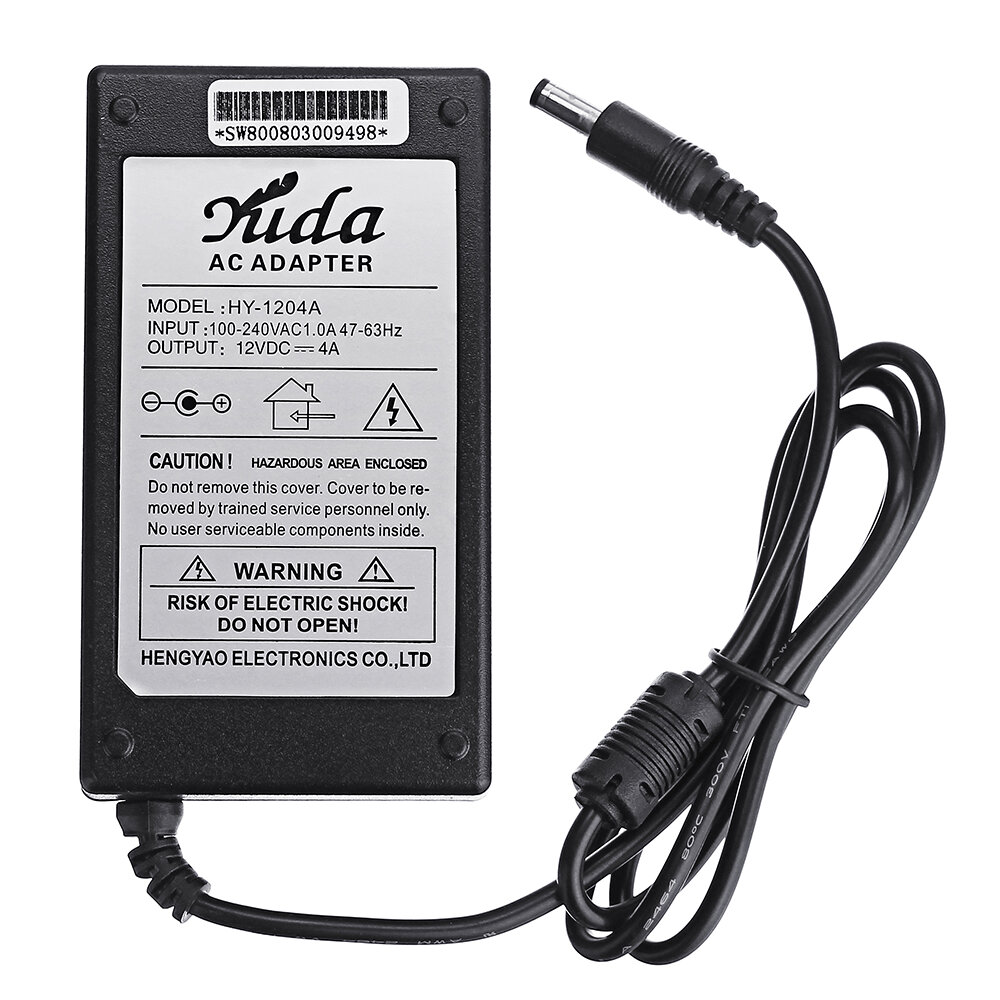

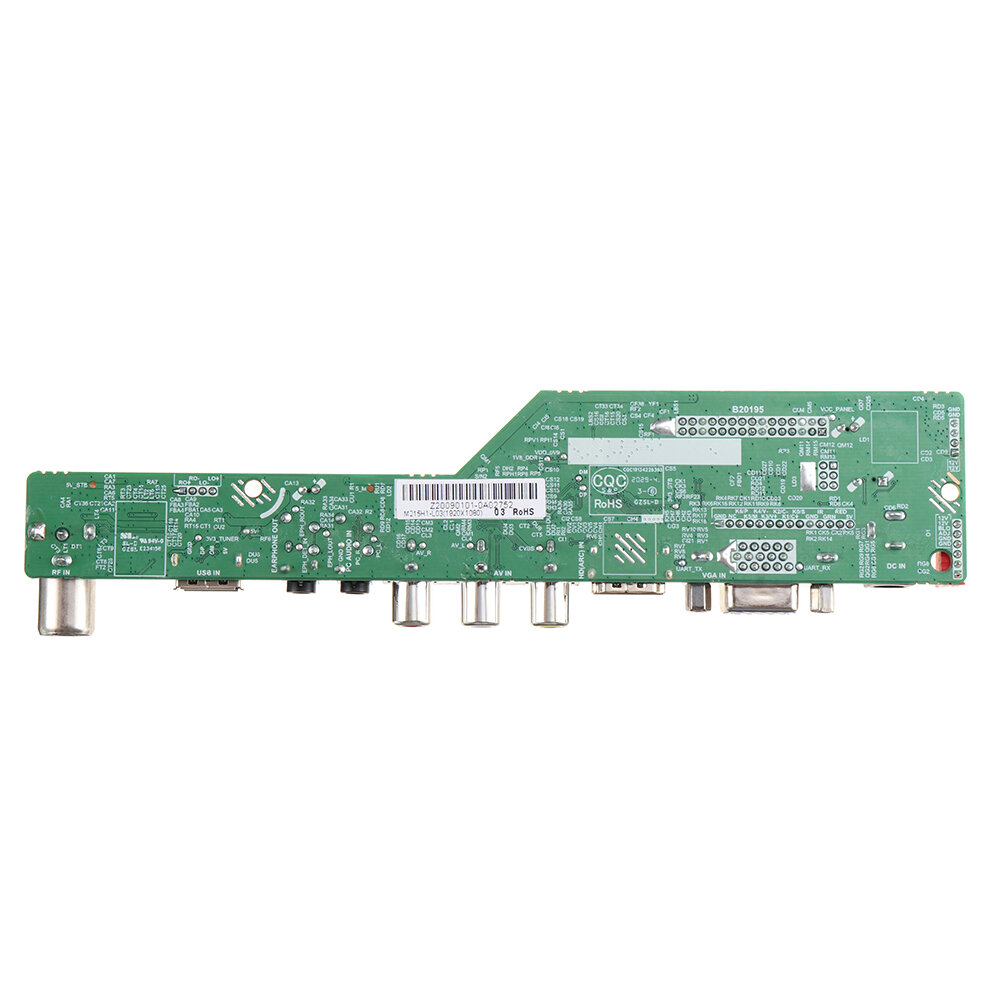

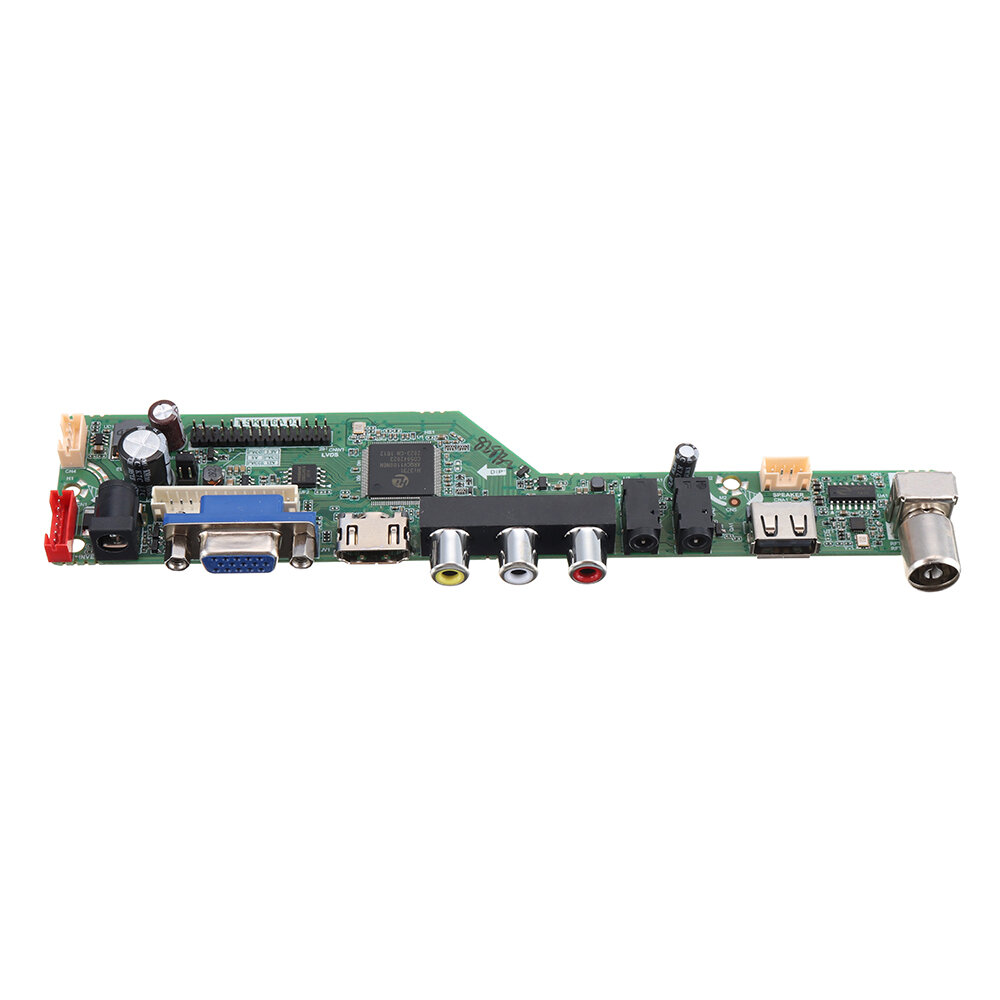

Description: Model:(Update from September 1, 2020) (CN warehouse)Update Model: T.SK105A.03 TV Format: Analog Signal Support Language: Russian, English, Hindi, Simplified Chinese, Khmer, Vietnamese, Myanmar, French, German, Italian, Spanish. Input Interface: PC / HDMI / TV / AV / USB multimedia playing (Note: TV signals can only receive analog signals, not digital signals.) Power Adapter: DC 12V 3-5A Screen interface: LVDS Single 6  Screen voltage: 3.3V / 5V / 12V (Jump cap) Not only USB interface can be used to upgrade programs, but also can use to play video/music/photo, basically, formats are supported. You can also set a boot display pictures or LOGO and Mirror Enable.




Step 2: https://www.banggood.com/search/lvds-cable.html?from=nav
Step 3:  Programming:
Q&A:
Q1: T.SK105A.03 chip, 1280*800 resolution, after installing the firmware, the screen flickersA2: Download this software and re-upgrade. If your 105 chip is unable to be upgraded, you can change the upgrade name to "UTS6710_sos" to force the upgrade. >>>Q2: Does eDP connector work with this item?
>>>Click here to buy<<<
2): Buy the EDP driver board directly.
