Tuya WiFi Intelligent Circuit Breaker ON OFF Timing Photovoltaic Bidirectional Metering Energy Meter Automatic Reclosing Protector with Metering and Prepaid Function Compatible with Alexa and Google A

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

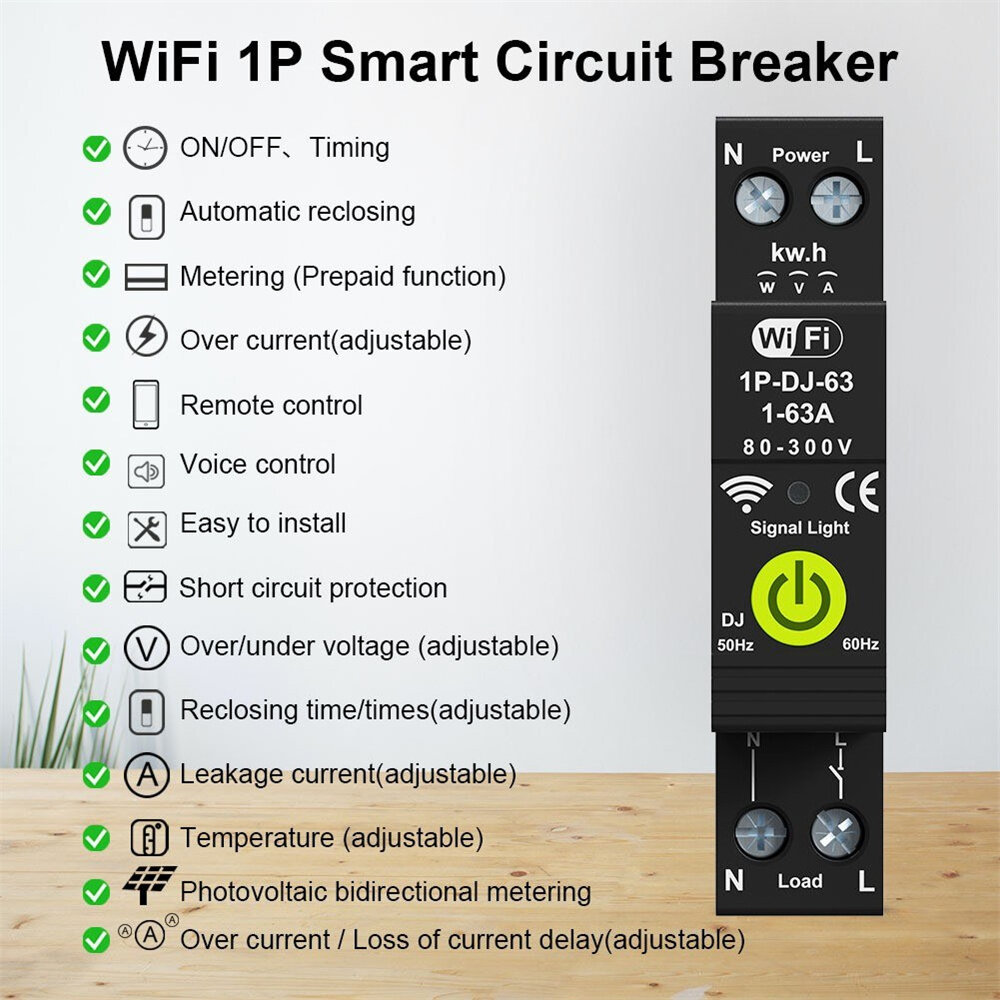

Automatic Reclosing

Mobilephone APP Control

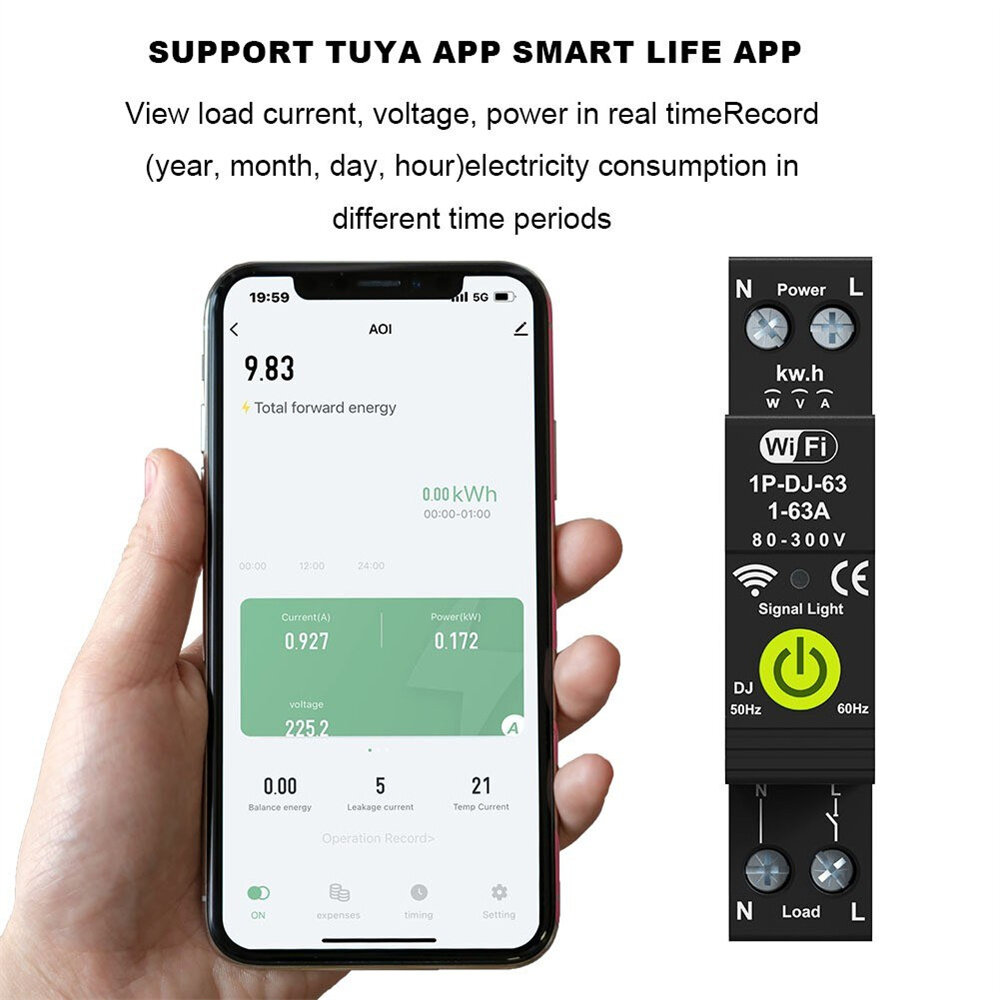

APP Data Viewing & Electricity Metering

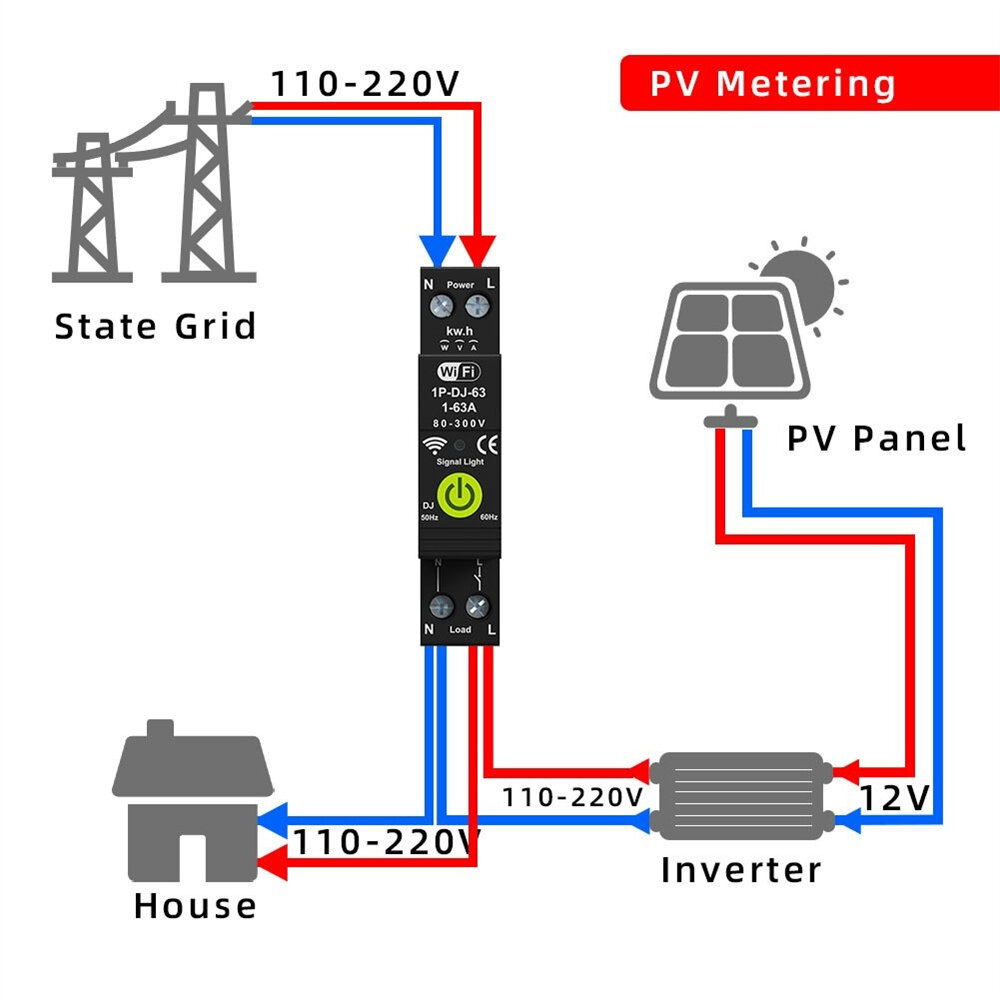

Photovoltaic Bidirectional Metering

Timing Schedule

Multiple Protections

APP Parameter Setting

Voice Control

Device Share Function



Name: Circuit Breaker

Material:

Rated vottage: 230VAC

Operation voltage: AC80V-400V(single phase)

Rated frequency: 50/60Hz

Electric current: (>A) 1-63A



Setting Ranges:

Under voltage protecting: 80V-210V adjustable

Overvoltage protecting: 120-300V adjustable

Overcurrent protecting:1.0A-63A adjustable

Reconnection time (delay time): 10s-99s adjustable

Overcurrent and leakage: 1-30 off adjustable

Leakage protecting: 10-99mA adjustable

Over temperature: 10-85 adjustable

Over current delay time: 1s-15s adjustable

Loss of current delay time: 1s-15s adjustable

Temperature: -30℃ to 70℃

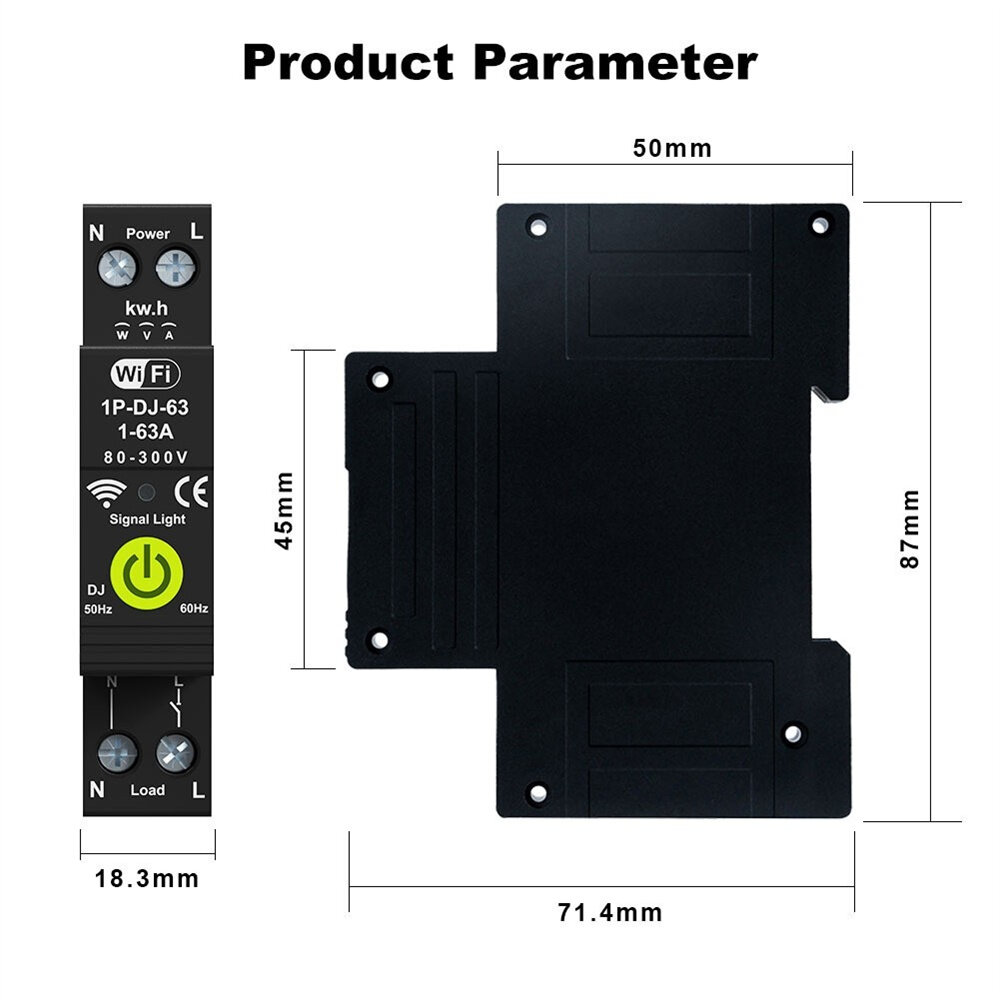

Item size: 92 * 19 * 72mm / 3.62 * 0.75 * 2.83in

Item weight: 97g / 3.42ounce

Package size: 94 * 21 * 73mm / 3.70 * 0.83 * 0.87in

Package weight: 120g / 4.23ounce



1 x Circuit Breaker
