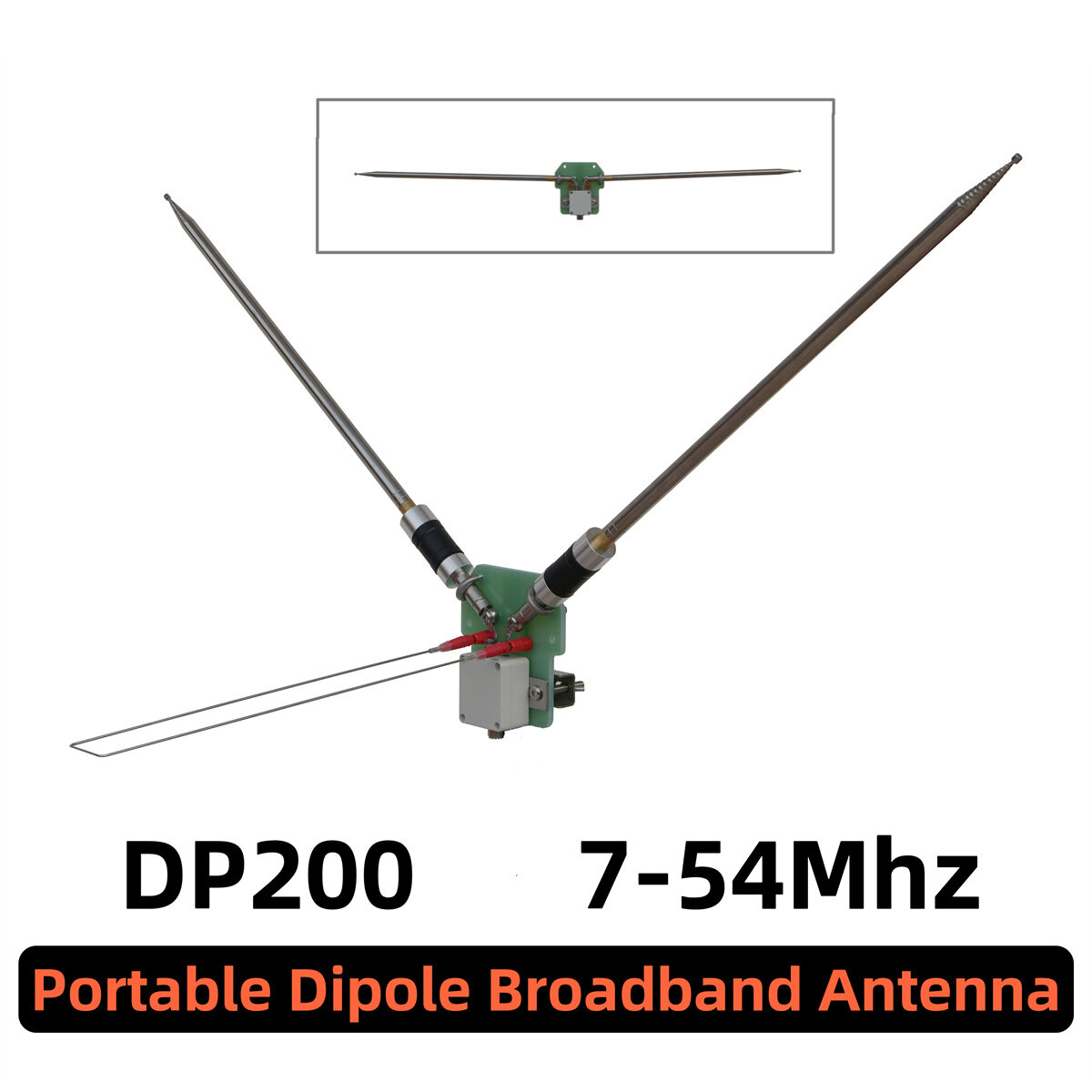

TZT HamGeek DP200 7-54MHz 200W Portable Dipole Antenna Broadband Antenna Better than GP Antenna COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

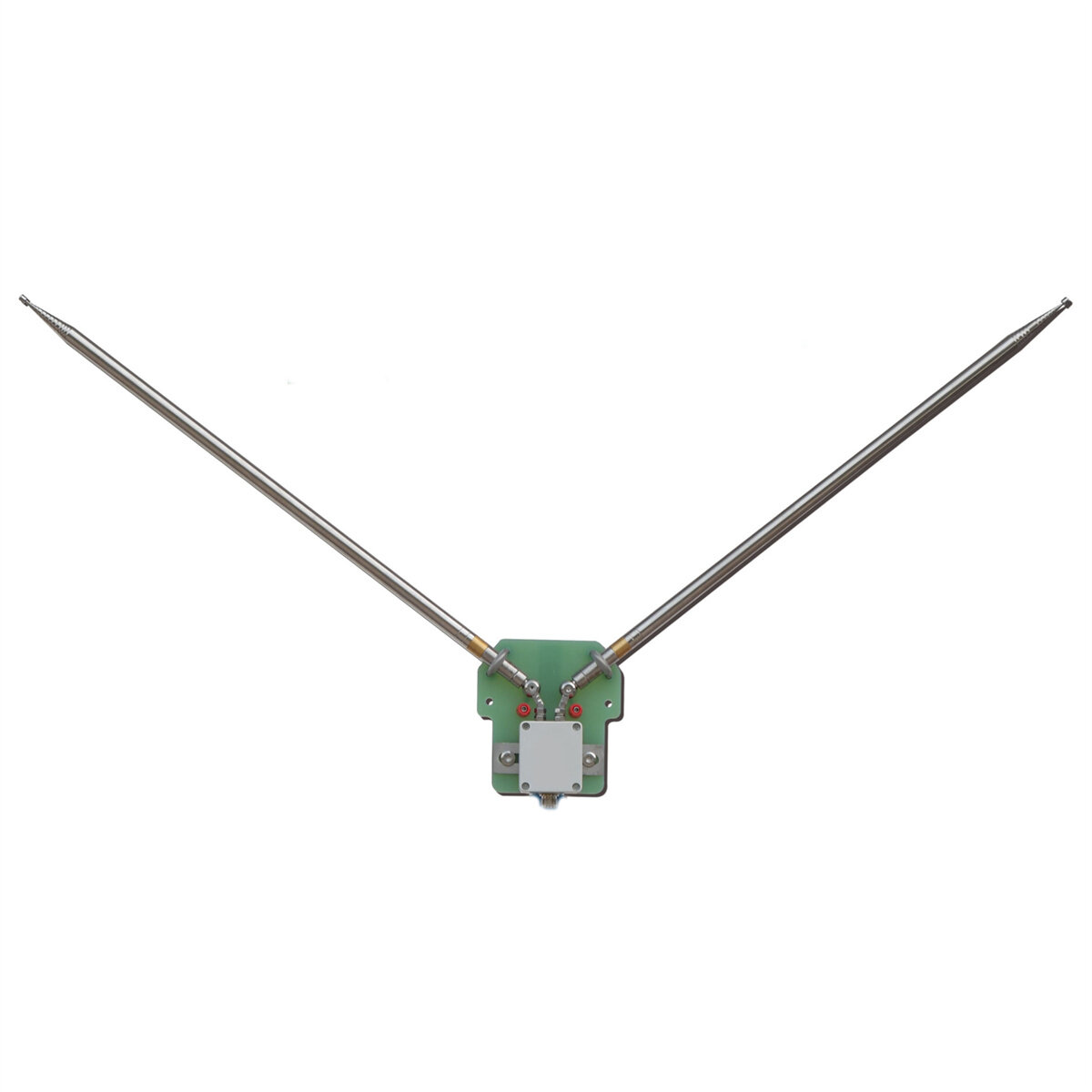

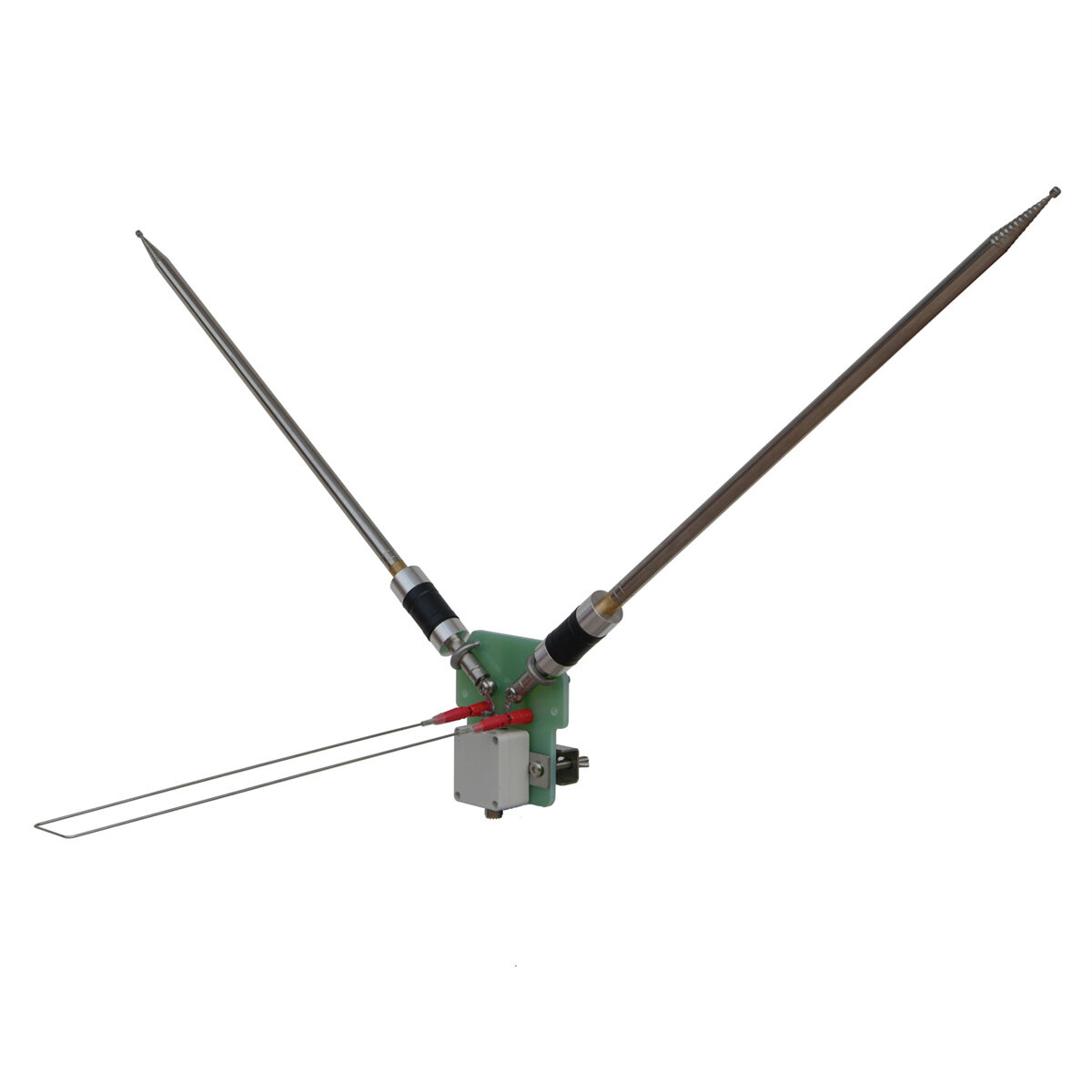

- Wide Frequency Coverage: The TZT HamGeek DP200 is a portable dipole antenna designed to operate within a broad frequency range of 7-54MHz. It can even be adjusted to work in the UV segment, providing versatile performance for ham radio enthusiasts.



- Excellent Signal Quality: With a SWR of less than 1.5, this antenna ensures efficient transmission and reception, resulting in clear and reliable communication.



- Horizontal Polarization: The antenna utilizes horizontal polarization, allowing for optimal signal propagation and reception characteristics.

High Power Handling: The DP200 can handle continuous power up to 200W and a maximum power of 500W, making it suitable for various power-intensive applications and scenarios.

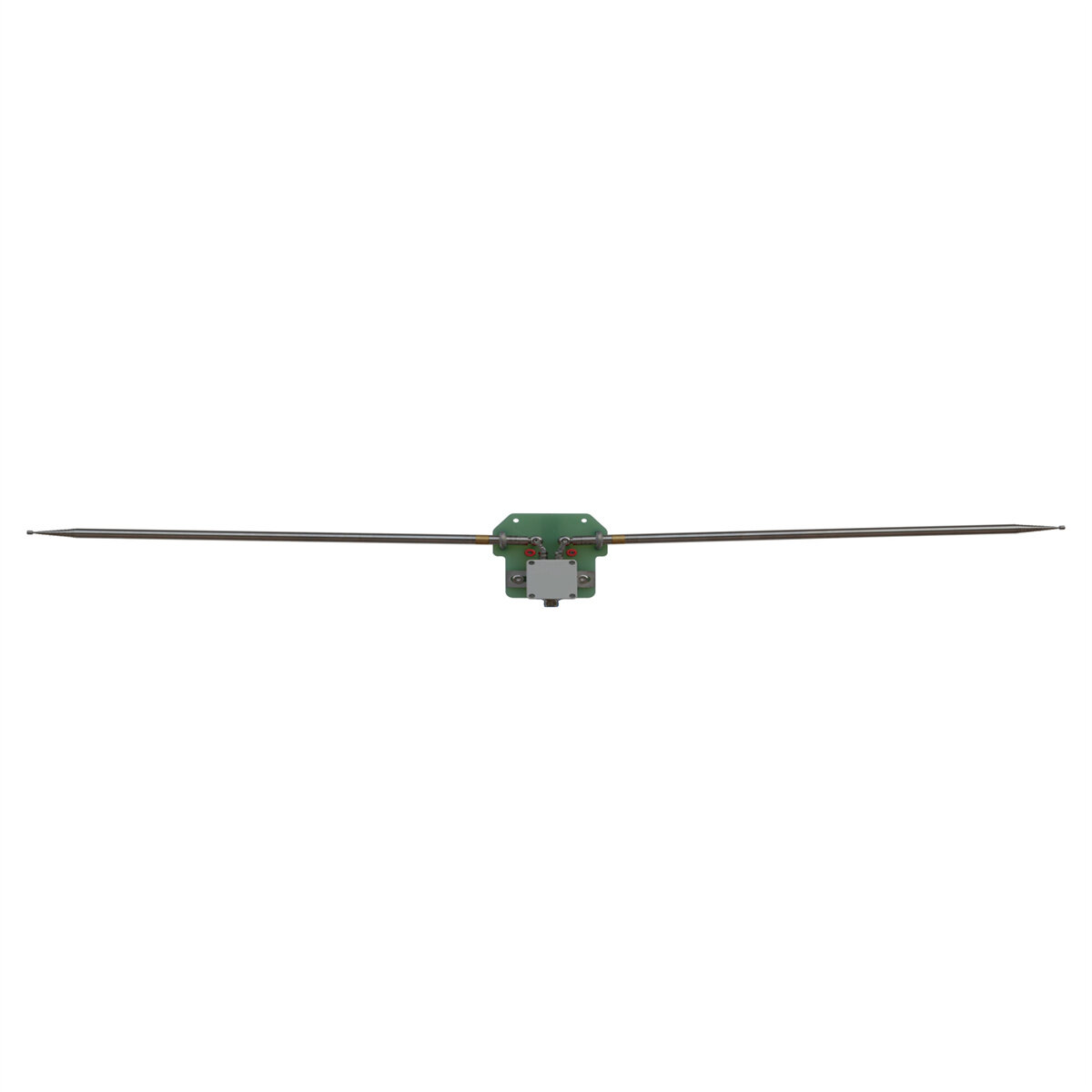

- Compact and Expandable: The antenna can be folded to a compact size of 0.52m (1.7ft), enabling convenient portability. When fully stretched, it reaches an impressive length of 11.3m (37.1ft), providing an extended range for enhanced performance.



- Durable Construction: Built to withstand outdoor conditions, the antenna features a sturdy design and a maximum windward face of 0.026m², ensuring stability and reliability even in challenging weather.



Brand: TZT HamGeek

Model: DP200

Bandwidth: 7-54MHz (adjustable to work in UV segment)

SWR: <1.5

Polarization Mode: Horizontal polarization

Input Impedance: 50 Ω

Continuous Withstand Power: 200W

Maximum Withstand Power: 500W

Folded Size: 0.52m (1.7ft)

Maximum Stretched Size: 11.3m (37.1ft)

Maximum Windward Face: 0.026m²

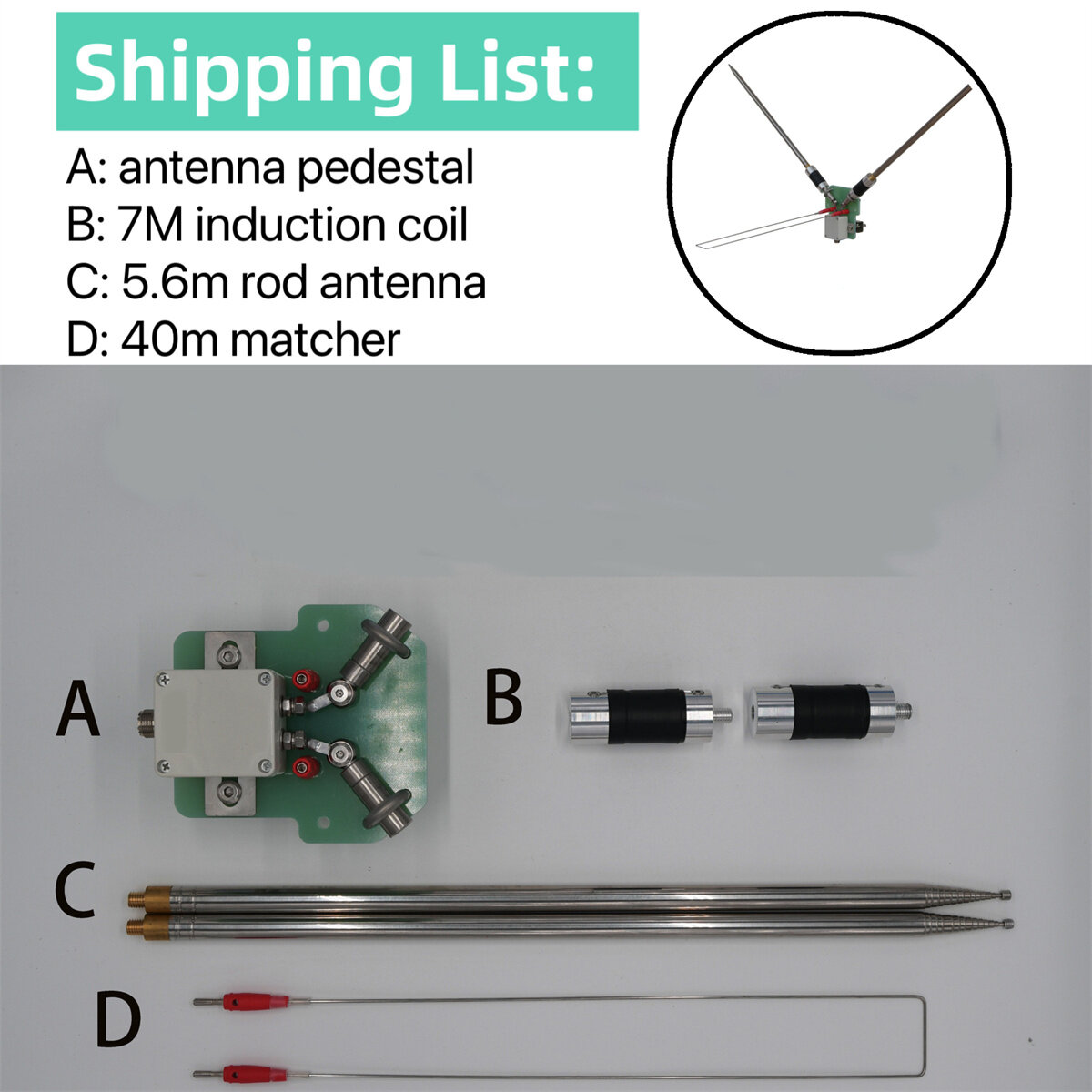

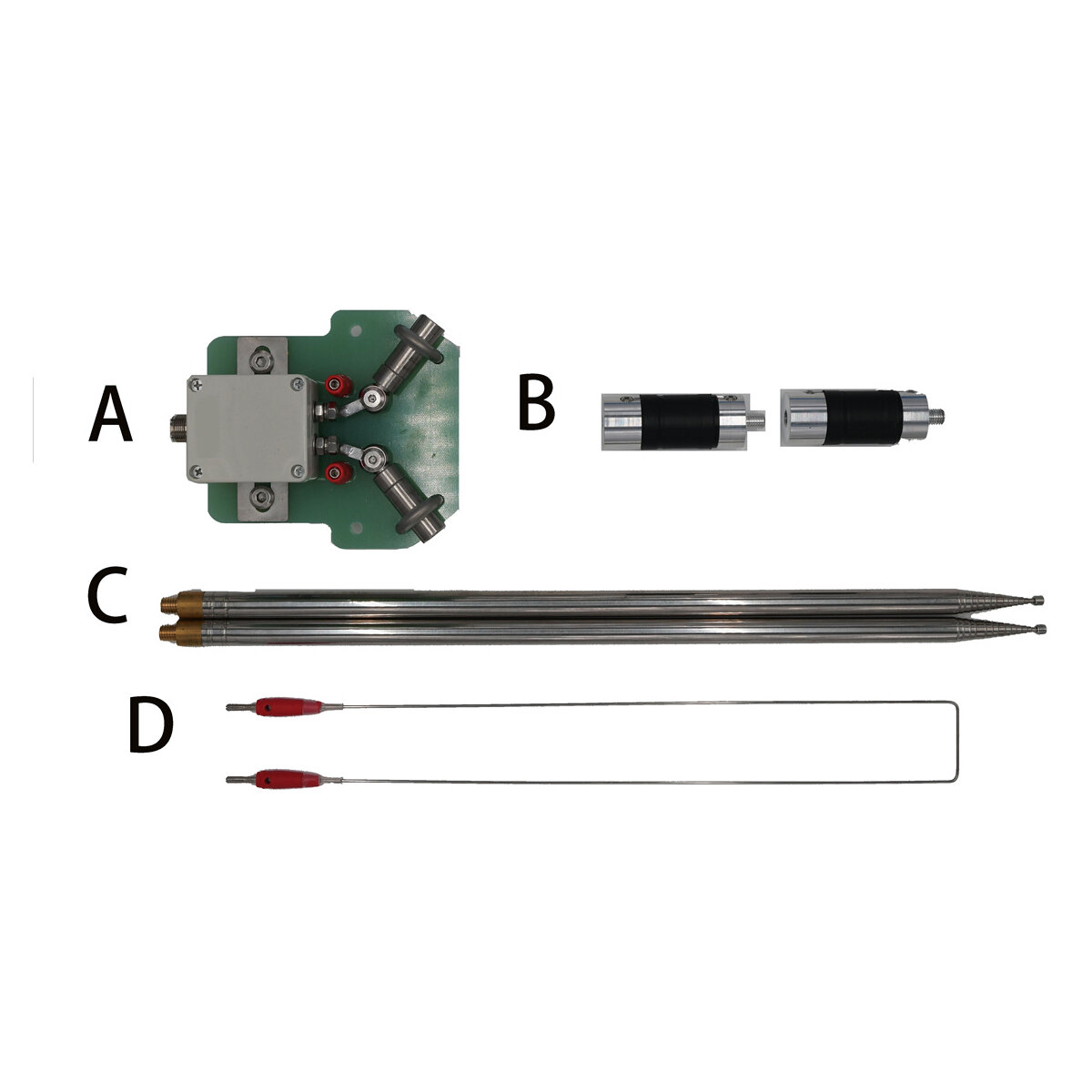

1 x Antenna Pedestal

2 x 7M Induction Coils

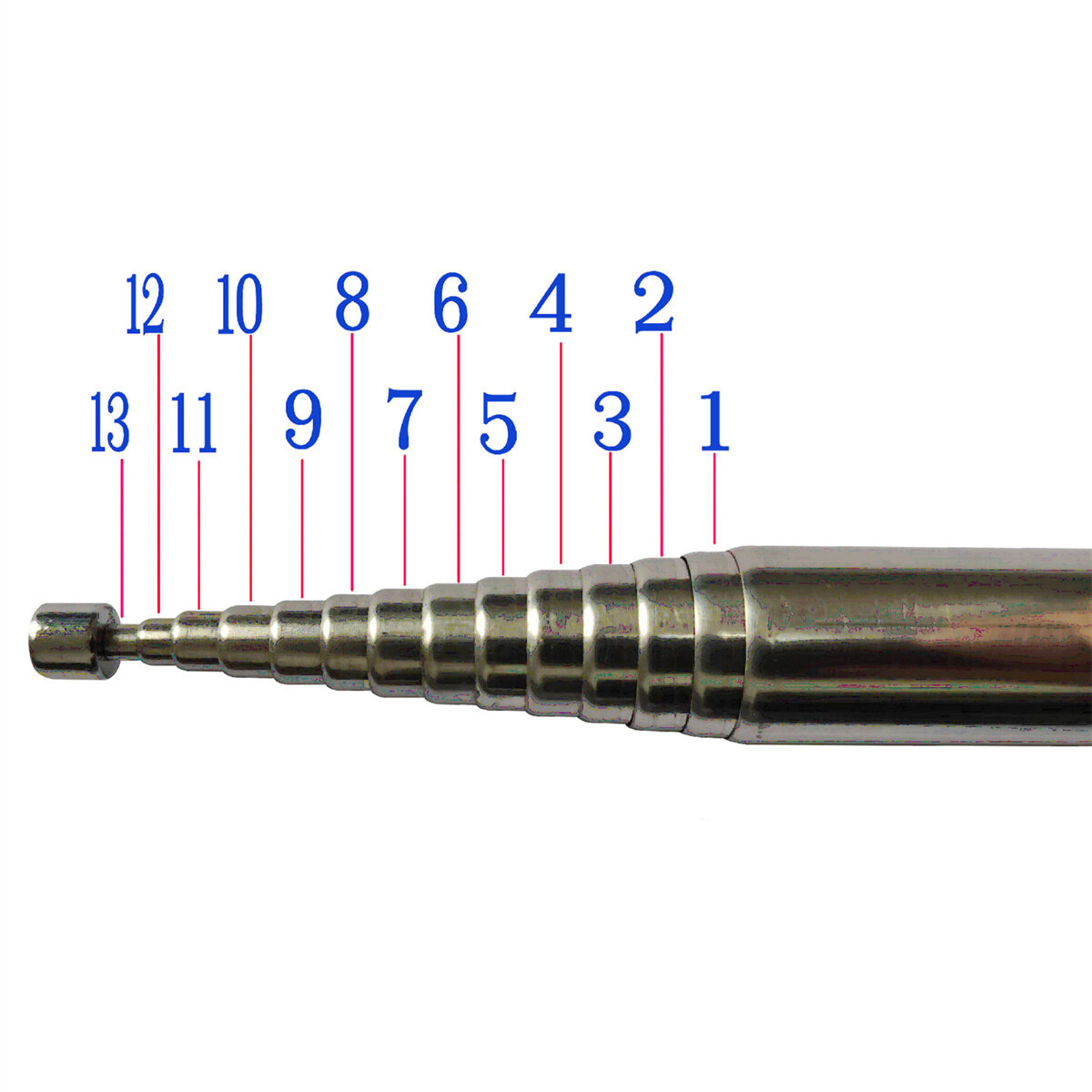

2 x 5.6m Rod Antennas

1 x 40m Matcher
