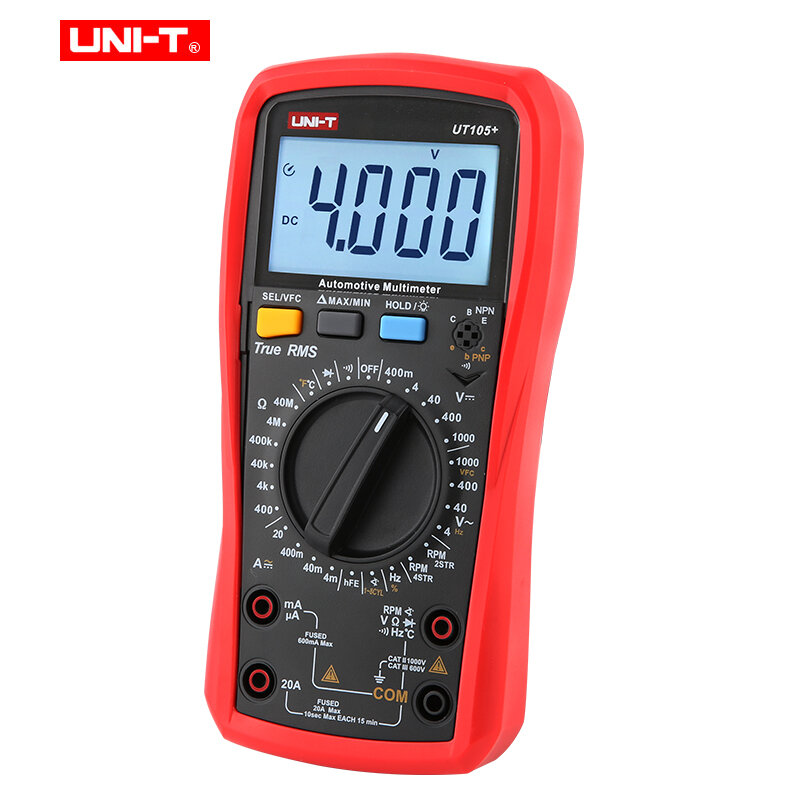

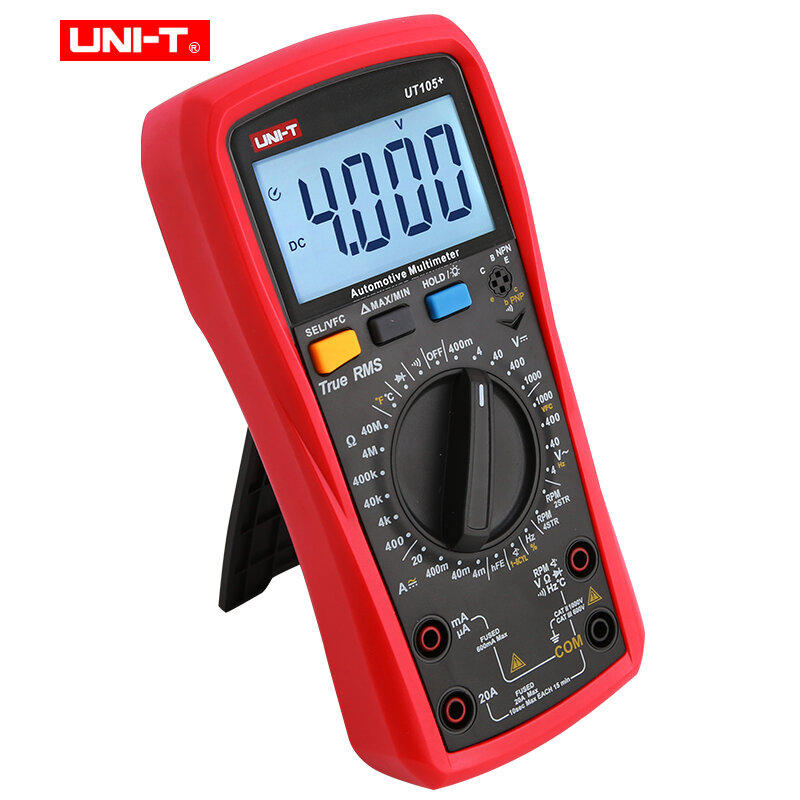

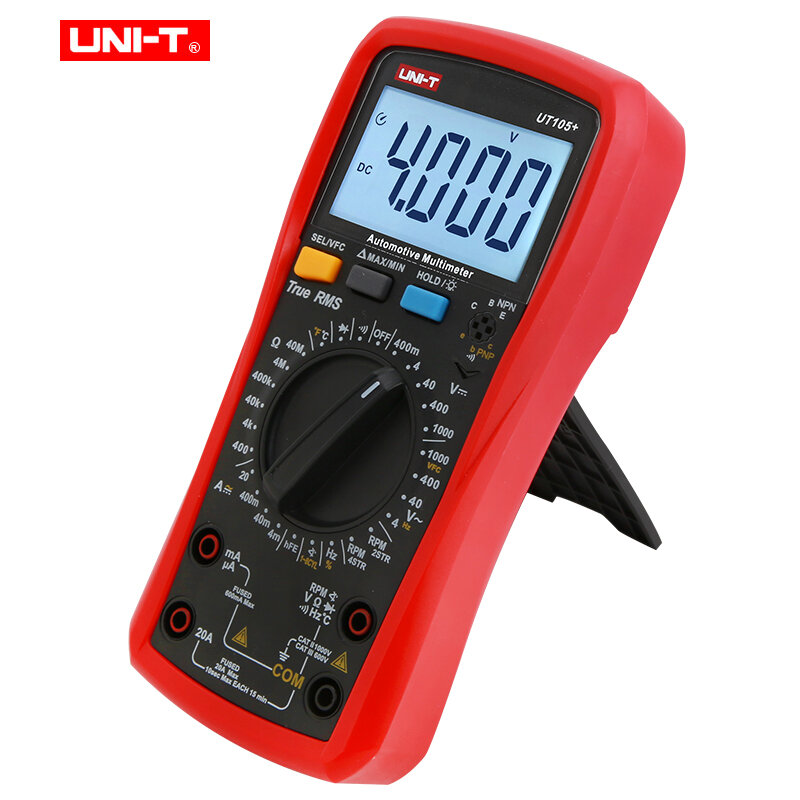

UNI-T UT105 Plus Automobile Multimeter True RMS Auto Range Voltage Current Frequency Temperature Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine



Functions
		UT105+
DC Voltage(V)	400mV/4V/40V/400V/1000V	±（0.5%＋3）
AC Voltage(V)	4V/40V/400V/1000V	±（0.8%＋3）
AC Current(A)	4mA/40mA/400mA/20A	±(1.0%+8)
DC Current(uA)	4mA/40mA/400mA/20A	±(0.8%+8)
Resistance(Ω)	400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ	±(0.8%+3)
Frequency(Hz)	10Hz~10MHz	±(0.1％+5）
Celsius(℃)	-40℃~1000℃	±(1.0%+3)
Fahrenheit(℉)	-40℉~1832℉	±(1.0%+3)
VFC	1000V	±(2.0%+10)
Engine Speed(RPM)	2STR	±(3.0%+5)
	4STR	±(3.0%+3)
Closed Angle(DWELL)	1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°) /4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°)	±(3.0%+5)
Display Digits
		√
Continuity/Diode Test/Triode Test
		√
Duty Cycle
		√
High Pressure Overrange Alarm
		√
OL Display
		√
Maximum/Minimum/Relative Value Measurement
		√
1 Meter Drop
		CATII   1000V/CATIII 600V

With low-pass filtering (VFC), maximum and minimum value/relative value measurement, under-voltage prompt, backlight and automatic shutdown and other functions.

Widely used in: communication, manufacturing, auto repair inspection and auto repair fields, making it a right-hand man for electronic and electrical technicians.

1 x UT105+(NO BATTERY INCLUDED)

2 x Test Leads

1 x Temperature Probe

1 x Manual
