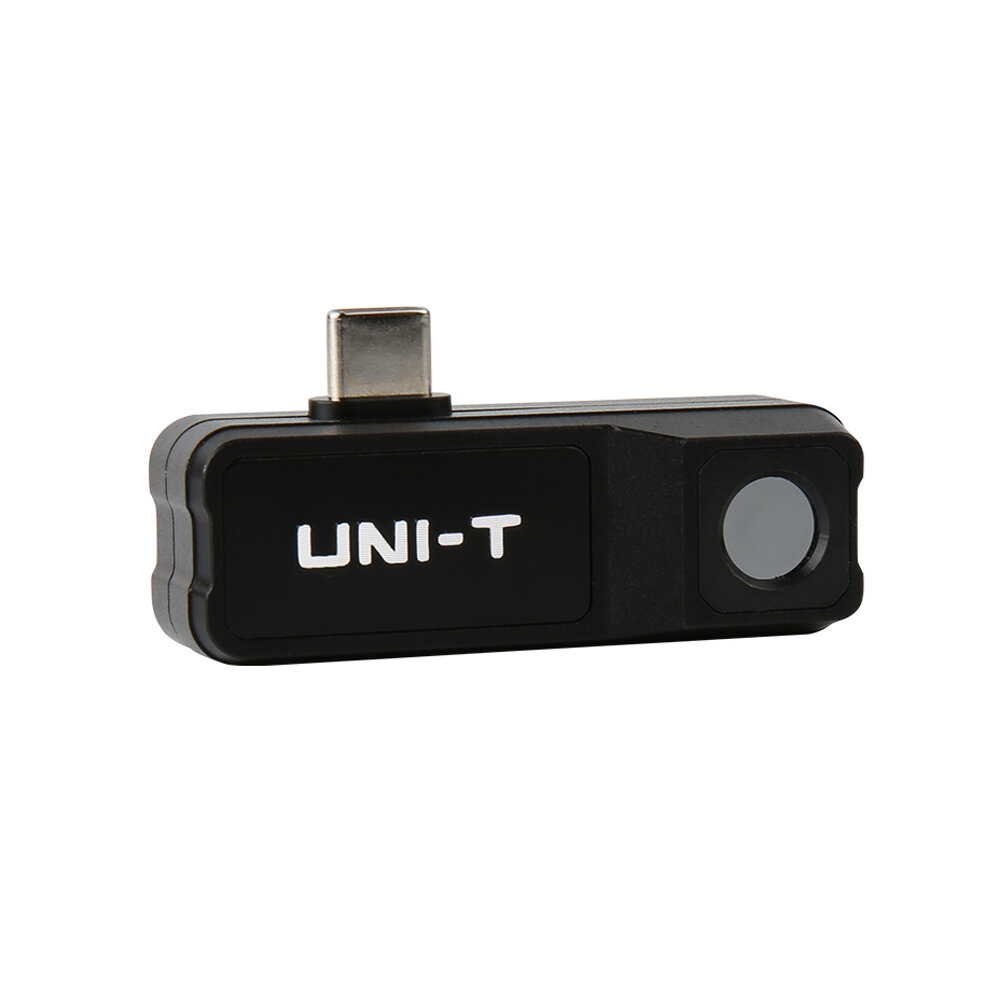

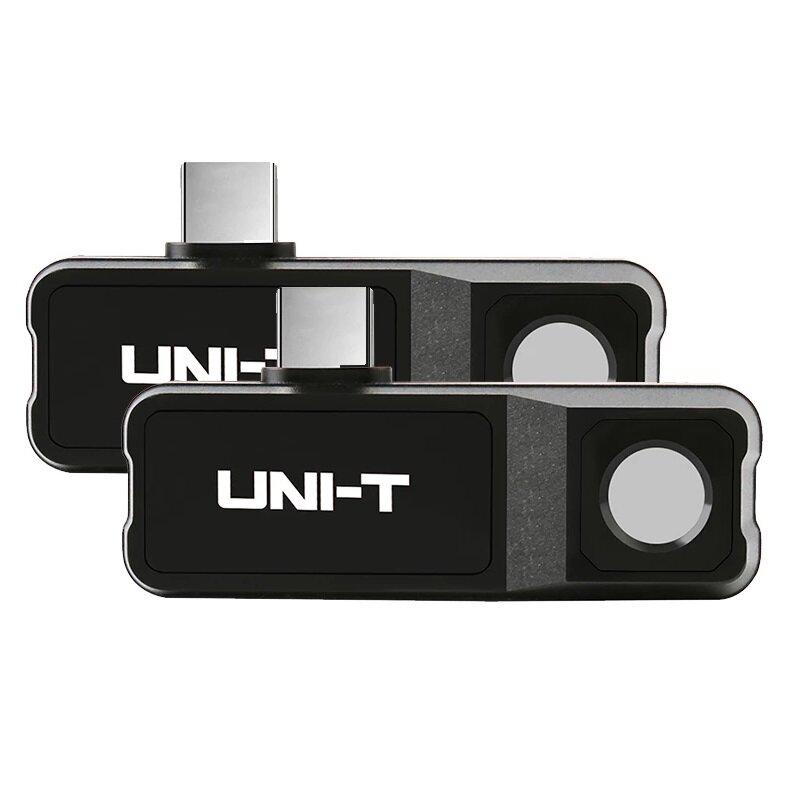

UNI-T UTi120 120*90 Infrared Thermal Imager -20°C~400°C Portable Mobile Camera Thermometer COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

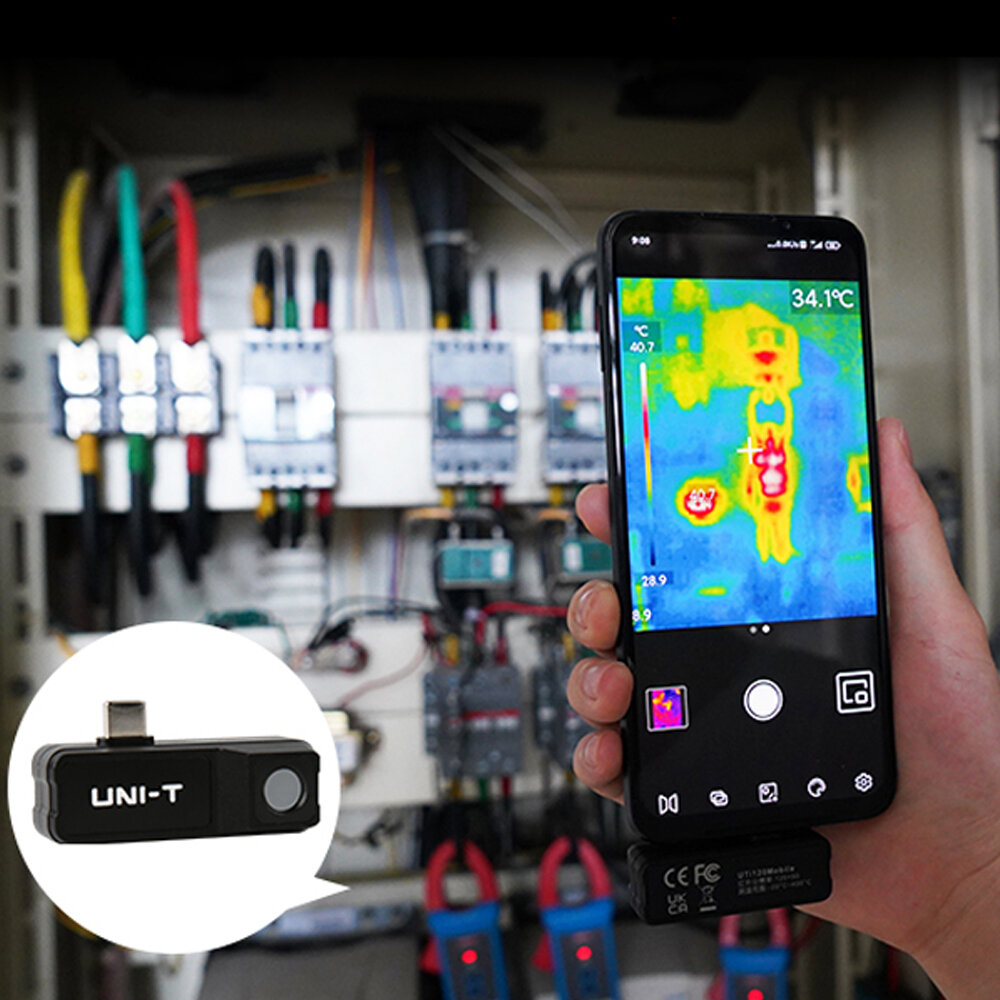

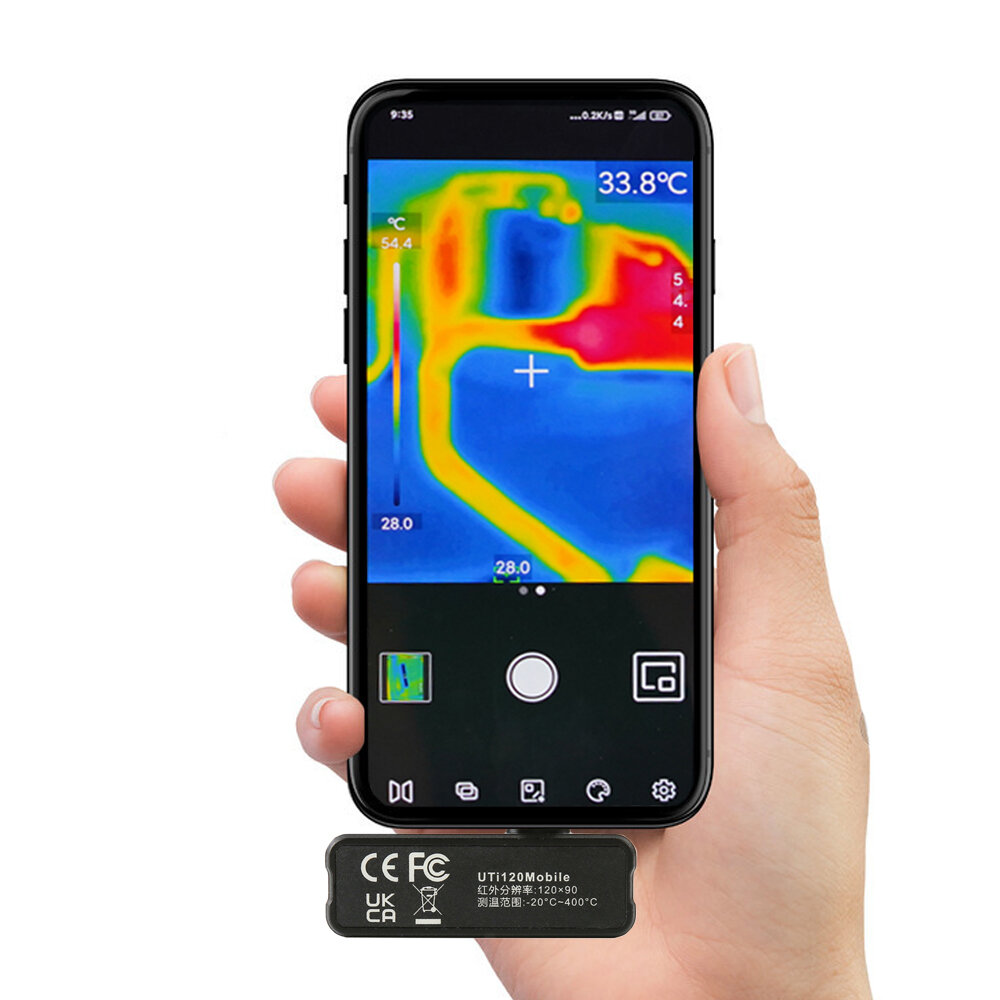

 Uti120 mobile is a thermal imager for smartphones. It is small in size, portable and easy to operate. Users can quickly get started and find problems more easily. The image is clear, the response is sensitive, and it can quickly detect temperatures up to 400°C. It is an indispensable key tool to check the distribution panel, troubleshoot attacks, or eliminate hidden heat sources inside and outside the home.

USB data transfer.

Application:

Model	UTil20 Mobile
Test Range	°F
Precision	±2℃/±2%
Sensor	Unrefrigerated vanadium oxide
Mode	High gain, low gain, automatic gain
Emissivity
Pixel	(10800)
Pixel Size	17um
Swatches	Iron red, rainbow, white hot, red hot, black hot, high-contrast rainbow
Spectrum	8〜14um
Field of View	50° *38°
IFOV	7.45mrad
Focal Length	2.28mm
Focus Mode	Focus-free
Sensitivity	<60mK@25℃
Frame Rate	<25Hz
Temperature Analysis	Point, line, rectangle, circle
Unit	Celsius, Fahrenheit
Call the Police	Custom temperature alarm limit
Picture Mode	Thermal imaging, fusion, picture-in-picture
Graphic Capture Mode	Take pictures, video
Image Save Format	JPG
Mobile APP	Have
Data Communication
Image Browsing	Rotate, graffiti mark, analyze, delete, save
Language	Chinese/English
Phone System	Android 6.0 the above
Certification	CE、FCC、ROSH
Operating Temperature	0℃~50℃ (32°F〜122°F)
Storage Temperature	-10℃~60℃ (14°F~ 140°F)
Working Humidity	10% ~ 95%Rh
Display

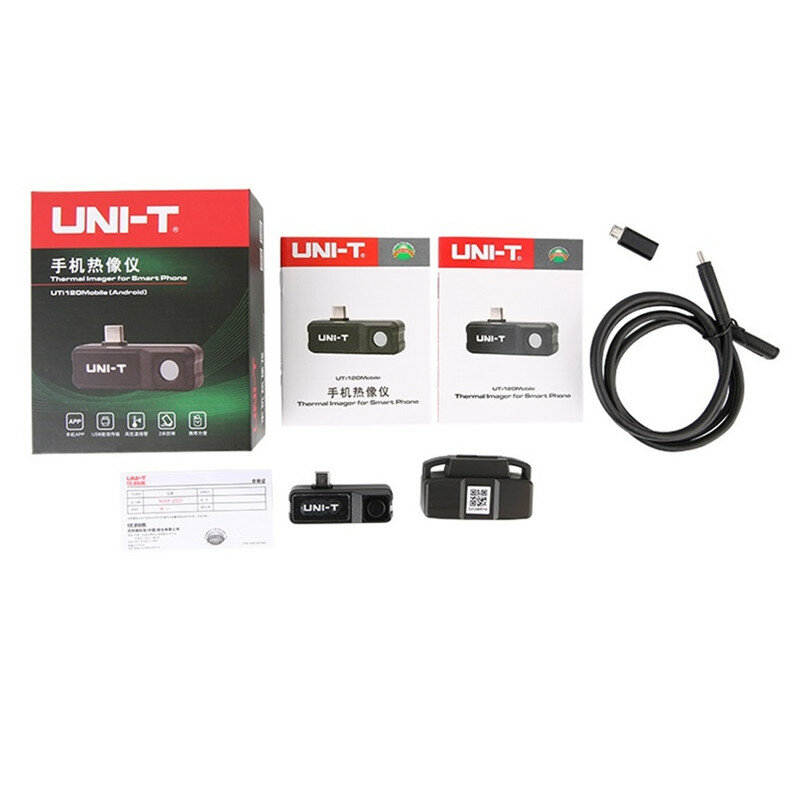

1 x Mobile Infrared Thermal Imager1 x Type-C male to female extension cable1 x USB-UVC adapter

>>UTi120Mobile Android_App<<
