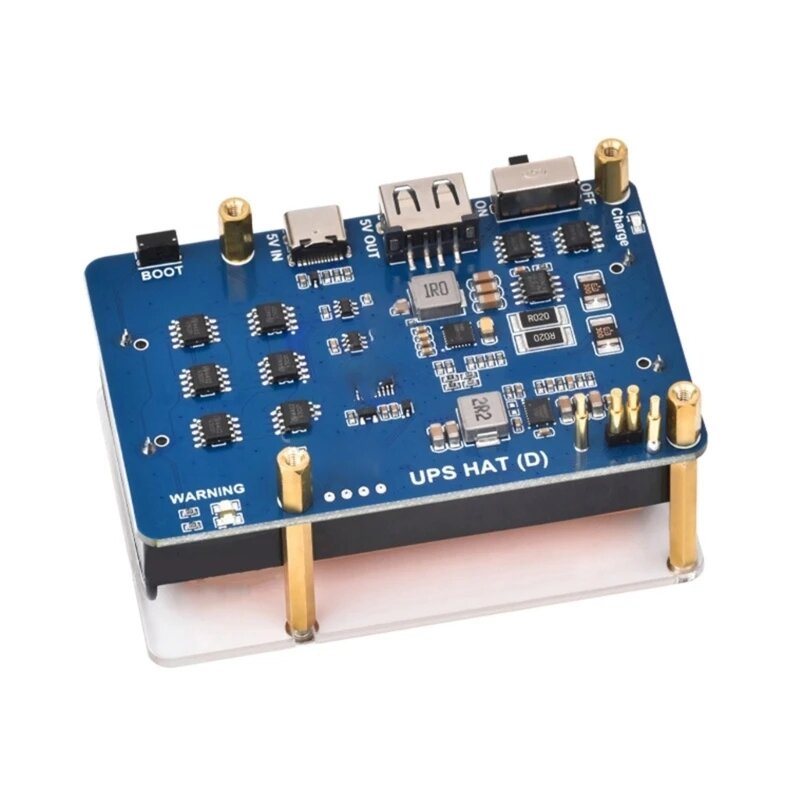

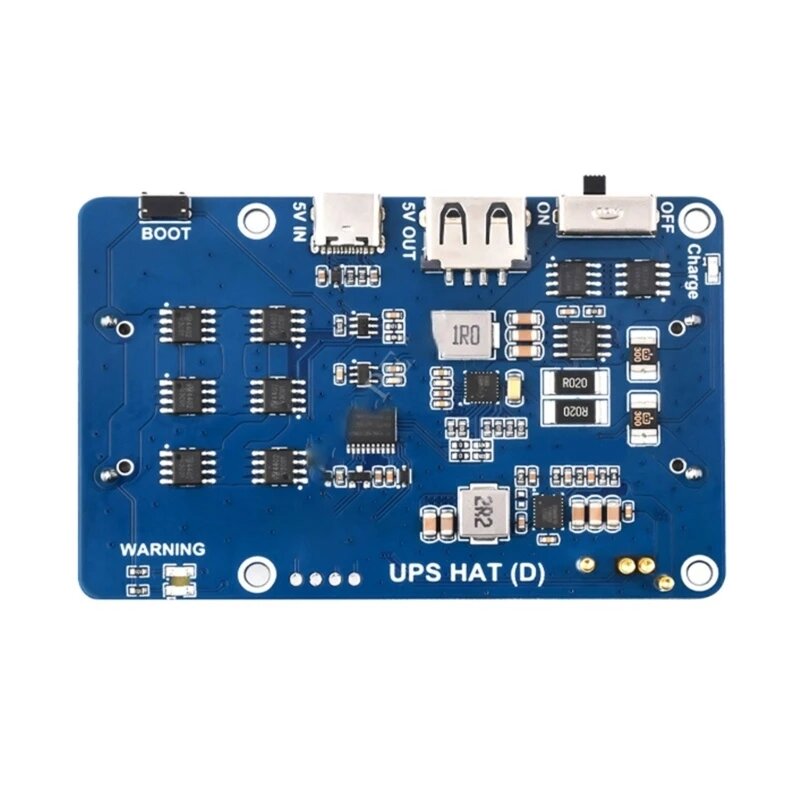

UPS HAT (D) for Raspberry Pi Supports 21700 Li battery 5V Uninterruptible Power Supply Pogo Pins Connector COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Compatibility: Designed for Raspberry Pi 1 3B+ and 4B models

Output Voltage: 5V

Charging Power Source: 5V via Type-C interface

Mounting Hole Diameter: 3.0mm

Features:

Uninterruptible Power Supply (UPS): The UPS HAT (D) is specifically designed as an uninterrupted power supply (UPS) expansion board for Raspberry Pi, ensuring continuous power in case of outages.

Spring-Loaded Connector: Utilizes a spring-loaded pin connector design, making it compatible with Raspberry Pi 1 3B+ and 4B mainboards.

Battery Management: Equipped with a lithium battery charging chip that supports dynamic path management for stable power supply.

Voltage Boost: Includes a voltage boost chip to provide a stable 5V voltage output to Raspberry Pi.

Monitoring and Protection: Allows real-time monitoring of battery parameters such as voltage, current, power, and remaining capacity through the I2C interface. It also features built-in battery protection circuitry to prevent overcharging, over-discharging, overcurrent, and short circuits for safe and stable operation.

Power Management: Includes an MCU chip for power management, supporting power-on detecting and startup functions.

Battery Status Display: Supports battery level icon display, making it easy to check the battery status.

Charging Indicator: Features a charging indicator light for easy monitoring of the battery's charging status.

Comprehensive Documentation: Provides a complete set of supporting documentation and manuals for user convenience.

Package Include:

1x Power Supply Module

1x Acrylic Cover

1x Screw Pack

(the other items for reference only, package are not includes)
