[US Direct] HANIWINNER 12.8V 200Ah LiFePO4 Lithium Battery Pack Backup Power, 2560Wh Energy, 2000+ Cycles, Built-in BMS, Support in Series/Parallel, IP55 Waterproof, Perfect for Replacing Most of Back

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Nominal Voltage	12.8V
Rated Capacity	200Ah @0.2C
Power	2560Wh
Internal Resistance	≤40mΩ
Cycle Life	≥2000 Cycle (0.2C 100% DOD Charge/ discharge cycle until the capacity decays to 70%)
Self Discharge	≤3.5% Per month (25±5 Celsius)
Max.Charging Voltage	14.6±0.2V
Charging Mode	At 0 - 45 Celsius, Constant Current 0.2C5A Charging to 14.6V, Constant Voltage 14.6V charging Current is Reduced to 0.02C5A and then Stop
Charging Current	40A
Max.Charging Current	80A
Discharging Cut-off Voltage	10.0V
Discharging Current	40A
Max. Continuous Discharge Current	100A
Charge Temperature	0 - 45 Celsius (40-75% Humidity)
Discharge Temperature	-20 - 60 Celsius (40-75% Humidity)
Storage Temperature	0 - 45 Celsius (40-75% Humidity)
Water Dust Resistance	IP55
Internal Combination Mode	IFR32700/6000mAh, 4S17P
Casing	ABS
Terminal	M8
Product Weight	25.85kg
Package Weight	26.8kg

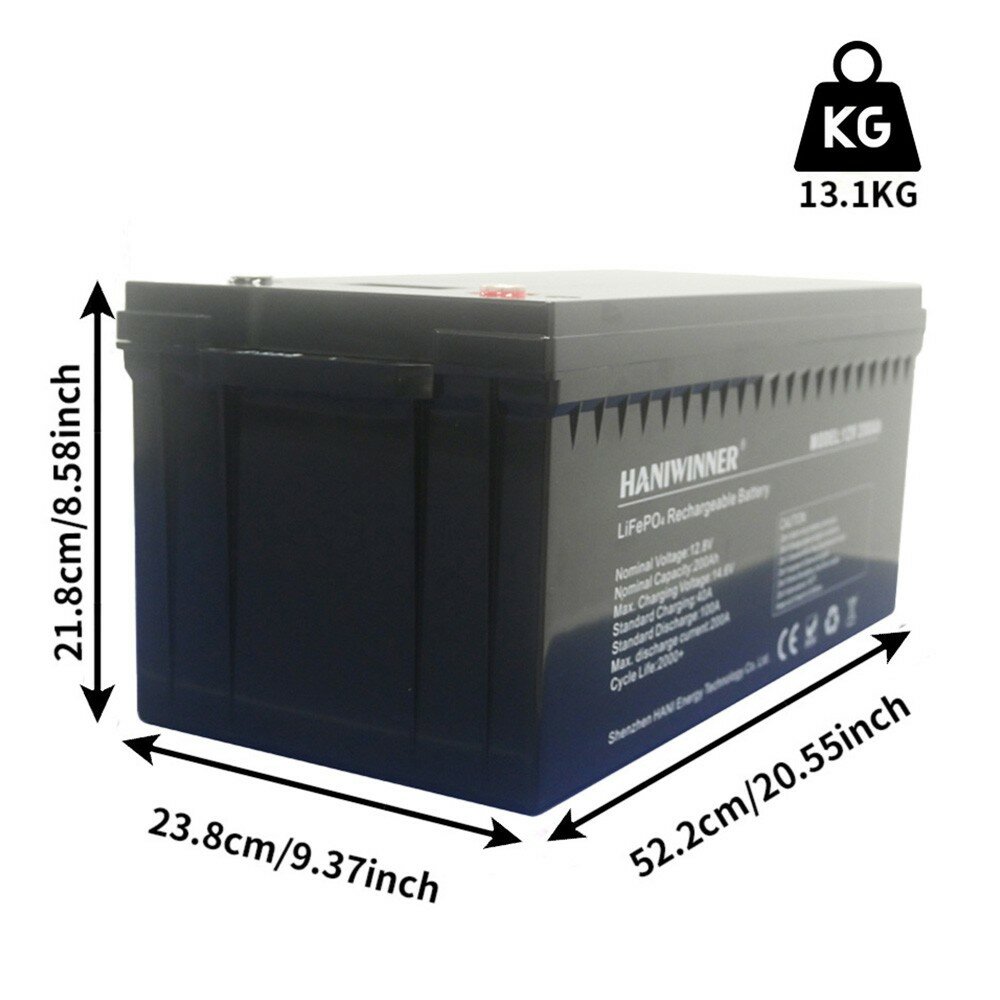

Product Size(L x W x H)	52.2*23.8*21.8cm
Package Size(L x W x H)	57*28.5*27cm

-Lithium iron phosphate core, mature technology, high safety, 100% DOD for normal use,Charge and discharge for more than 2000 cycles

-Perfect replacement for lead-acid batteries, 40-50% lighter and maintenance-free

-Built-in lithium protection against overcharge, overdischarge, overcurrent and overtemperature

-Wide operating temperature range: -20°C to 60°C

-Support for series use (subject to technical guidance from the manufacturer)

Package Includes:

Due to the light and screen difference, the item's color may be slightly different from the pictures.

Please allow 0.3~1cm differences due to manual measurement.
