US EU Direct KAIWEETS VT501 Smart Automotive Circuit Tester with 0.8-100V Broad Voltage Range Advanced LED Digital Display Perfect for Testing Vehicle Circuits High Precision Measurement Tool

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

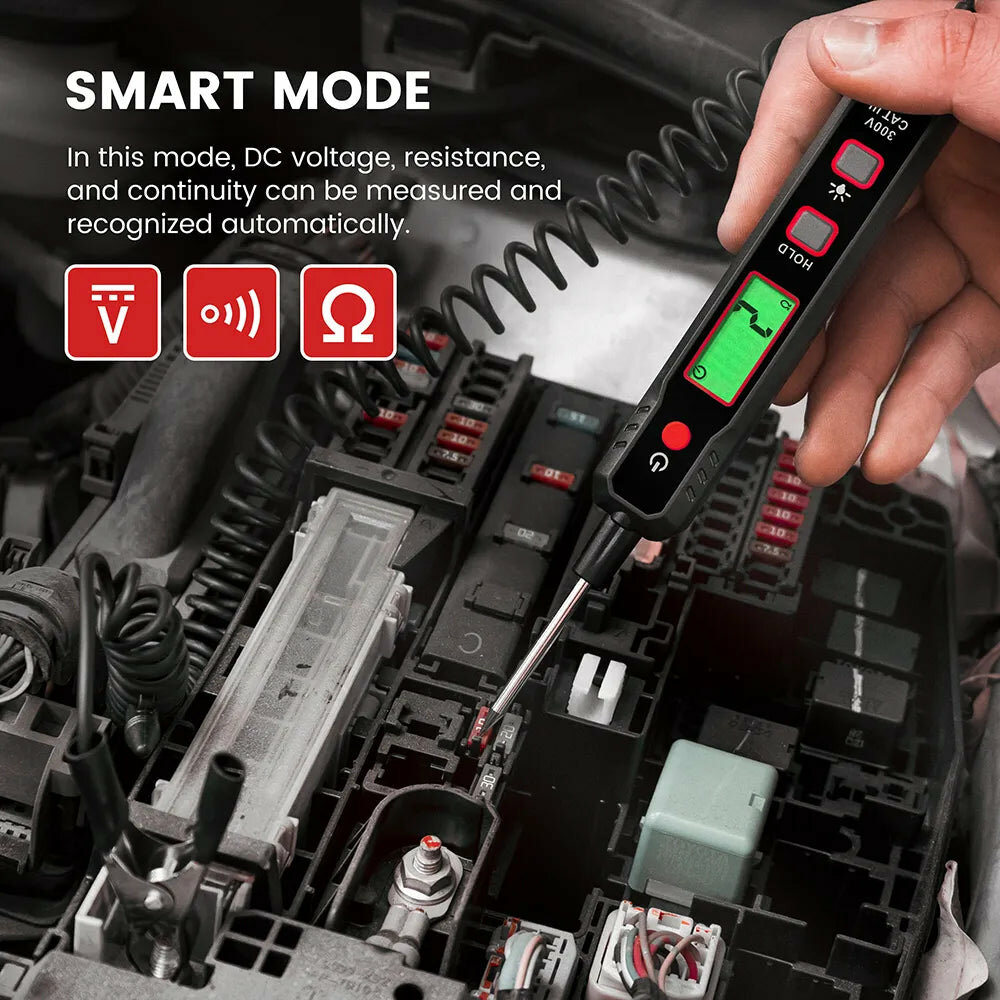

Smart Mode: This digital automotive tester offers an intelligent SMART mode that automatically identifies and measures AC/DC voltage, polarity, resistance, and continuity. It eliminates the need for manual settings by automatically detecting the optimal range for precise measurements.

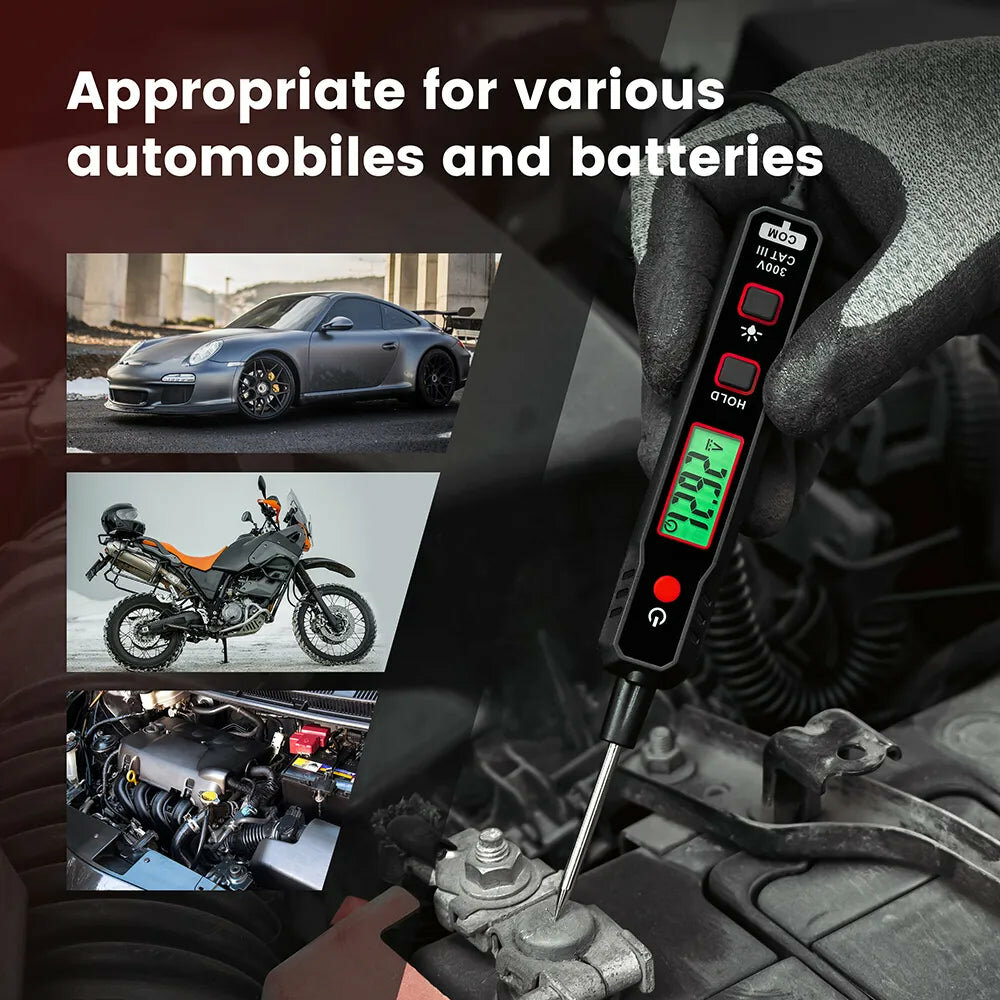

Broad Voltage Range: Unlike other auto electrical testers that typically offer a maximum voltage capability of 60V, this KAIWEETS VT501 Smart Automotive Circuit Tester features an expanded voltage testing range of 0.8-100V DC, making it perfect for testing various electrical vehicle circuits.

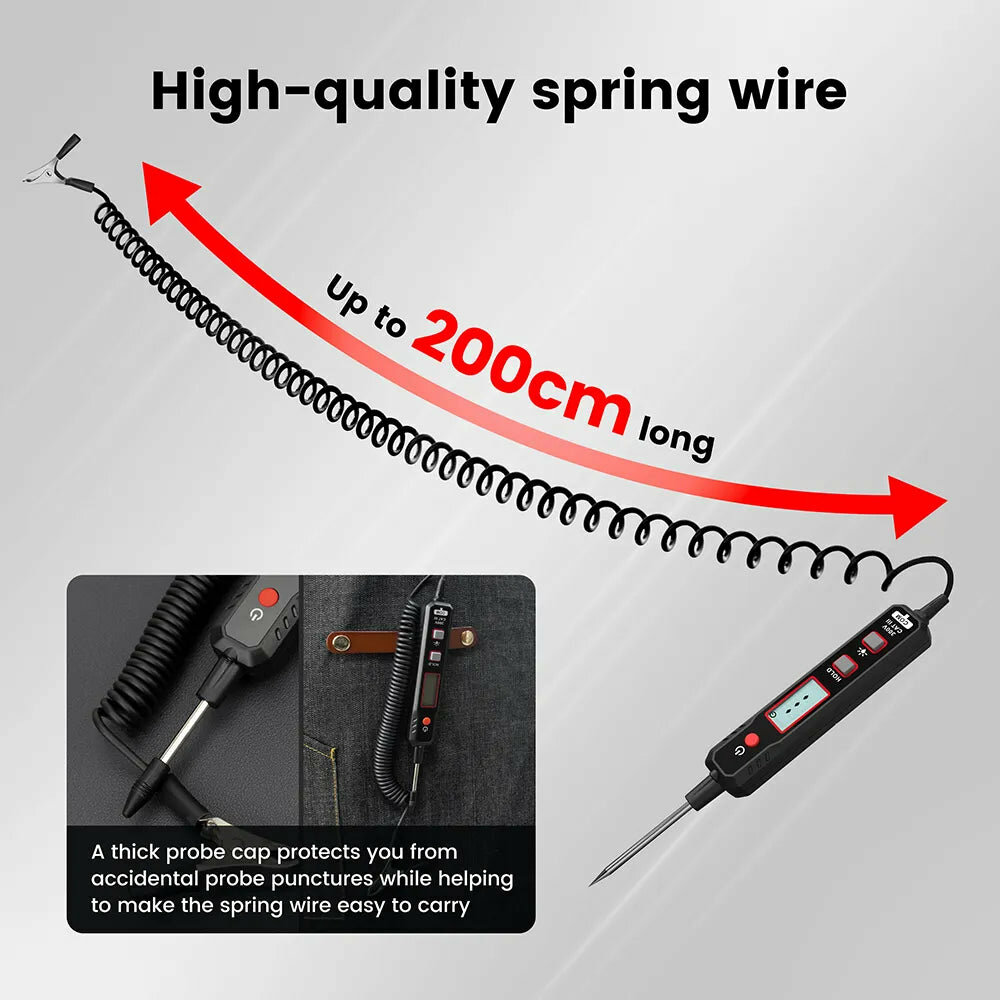

User-friendly and Versatile: This digital test light simplifies the testing process for automotive headlights, taillights, turn signal circuits, faulty sockets, and fuse connections. It comes with a long-lasting 78.74-inch long PU spring wire that offers superior durability and flexibility. Not to mention, its large alligator clip assures one-hand operation, hence enhancing work efficiency.

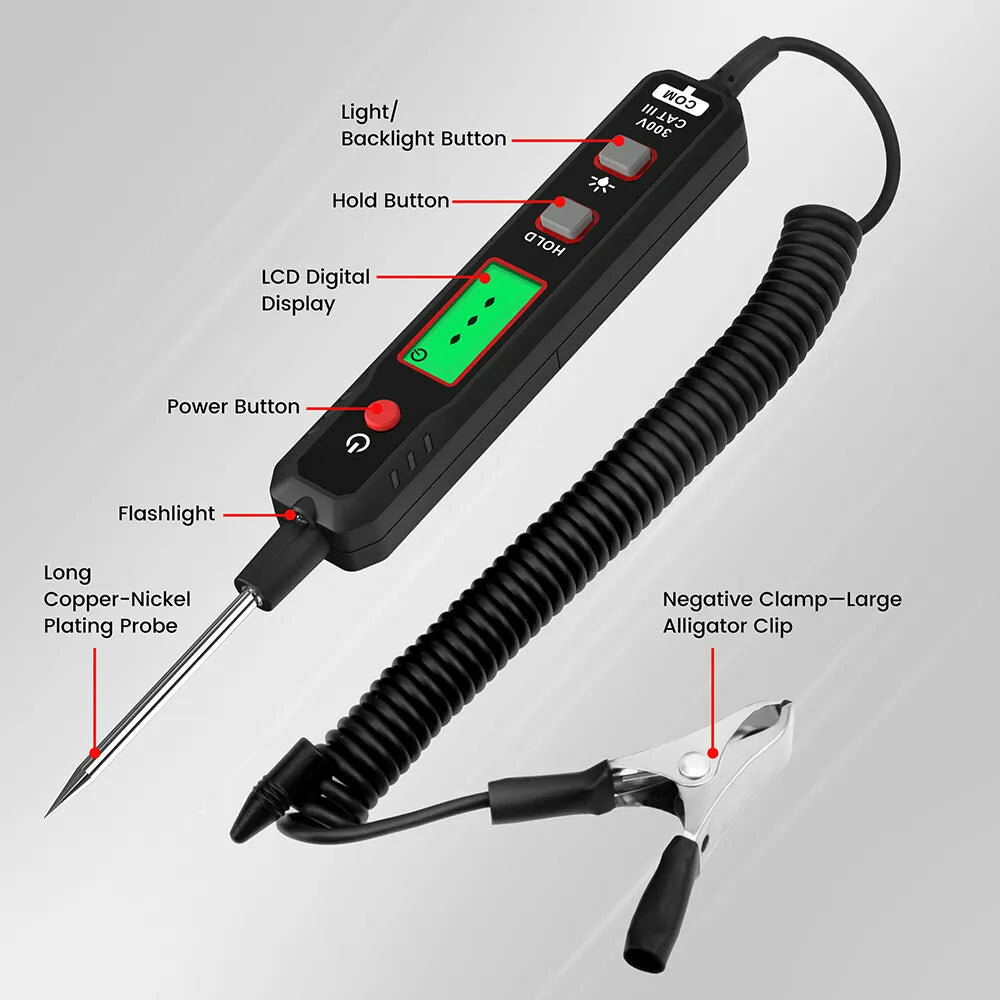

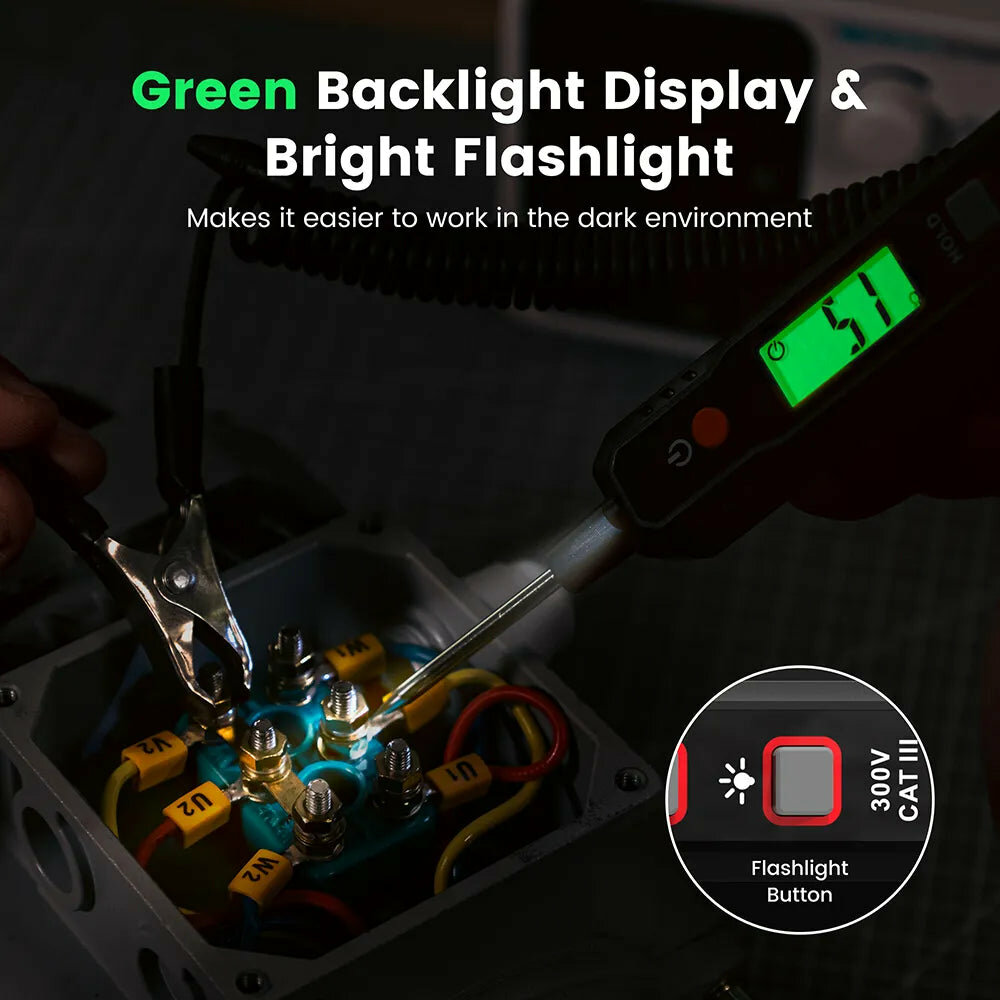

Advanced LED Digital Display: The green backlight LED digital display ensures clear and accurate volt readouts and remains visible both during day and night. It also ensures high accuracy with a resolution ratio of 0.1V.

Superior Safety: The device features a thick probe guard to prevent accidental injuries and ensure user safety. It also helps in managing the spring wire to ensure convenient usage.



Security Level	CAT.II 300V
Pollution Level	2
Altitude	<2000m
Working temperature and humidity	0~40 ℃ (<80% RH, <10 ℃ non–condensing)
Storage temperature and humidity	-10~60 ℃ (<70% RH, remove the battery)
Sampling rate	About 3 times/sec
Indication of excess range	Display "OL"
Battery low voltage indication	Display
Enter a polarity indication	Display Auto  "–" sign
Power	1 × 1.5V AAA Batteries
DC voltage
Range	Resolution	Accuracy
2V	0.001V	±(1.0
20V	0.01V
100V	0.1V
Voltage range
1	±(1.2
20Ω0.01K
200Ω0.1K
2Ω0.001M
20Ω0.1M
Overload protection: 250V



1 x VT501 Automotive Circuit Tester

1 x 1.5V AAA Battery

1 x Premium 78.74-inch long PU Spring Wire

1 x Large-sized Alligator Clip
