US/EU Direct KAIWEETS KM601S Smart Multimeter True RMS 10000 Counts 1200mAh Rechargeable Battery AC/DC Voltage Resistance Capacitance Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Features:

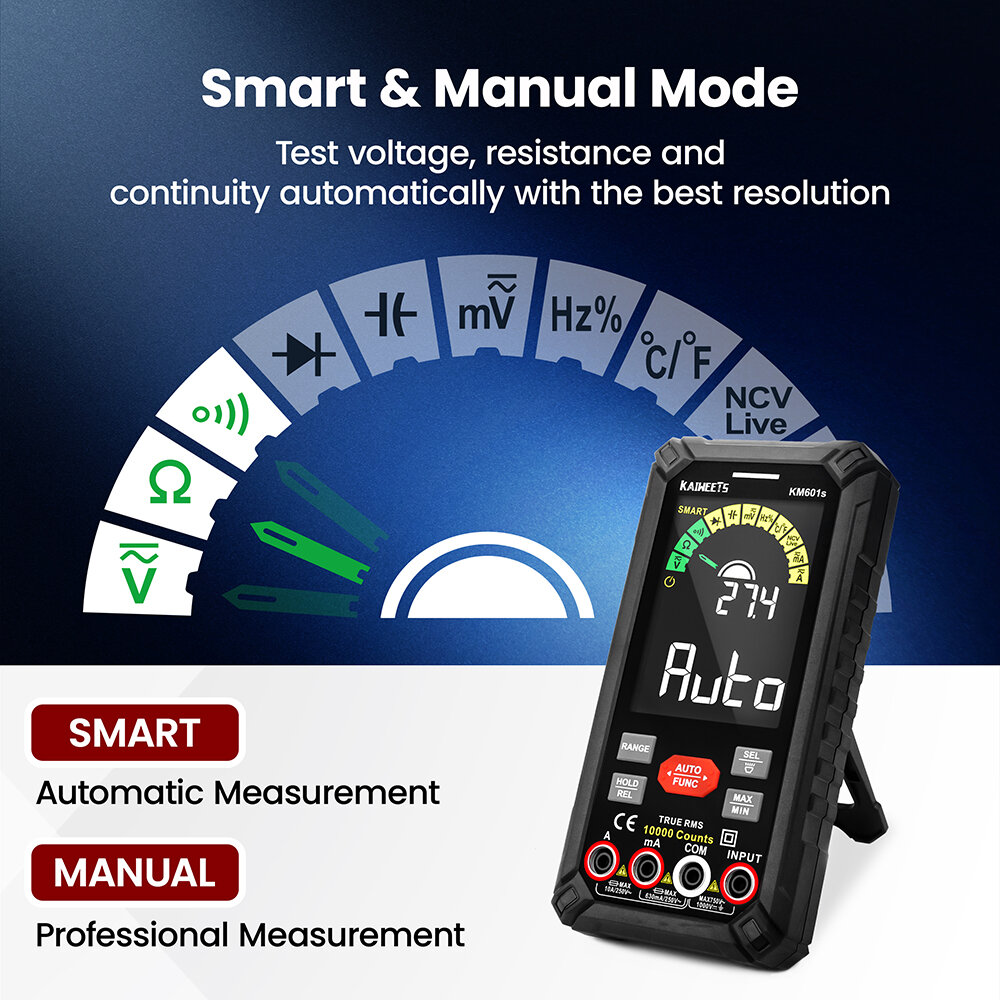

Smart Mode: KM601s This smart multimeter enters smart mode by default. In smart mode, the voltmeter automatically measures voltage, resistance, and continuity. It can identify the measurement content and select the range with the best resolution, making the measurement more convenient and faster.

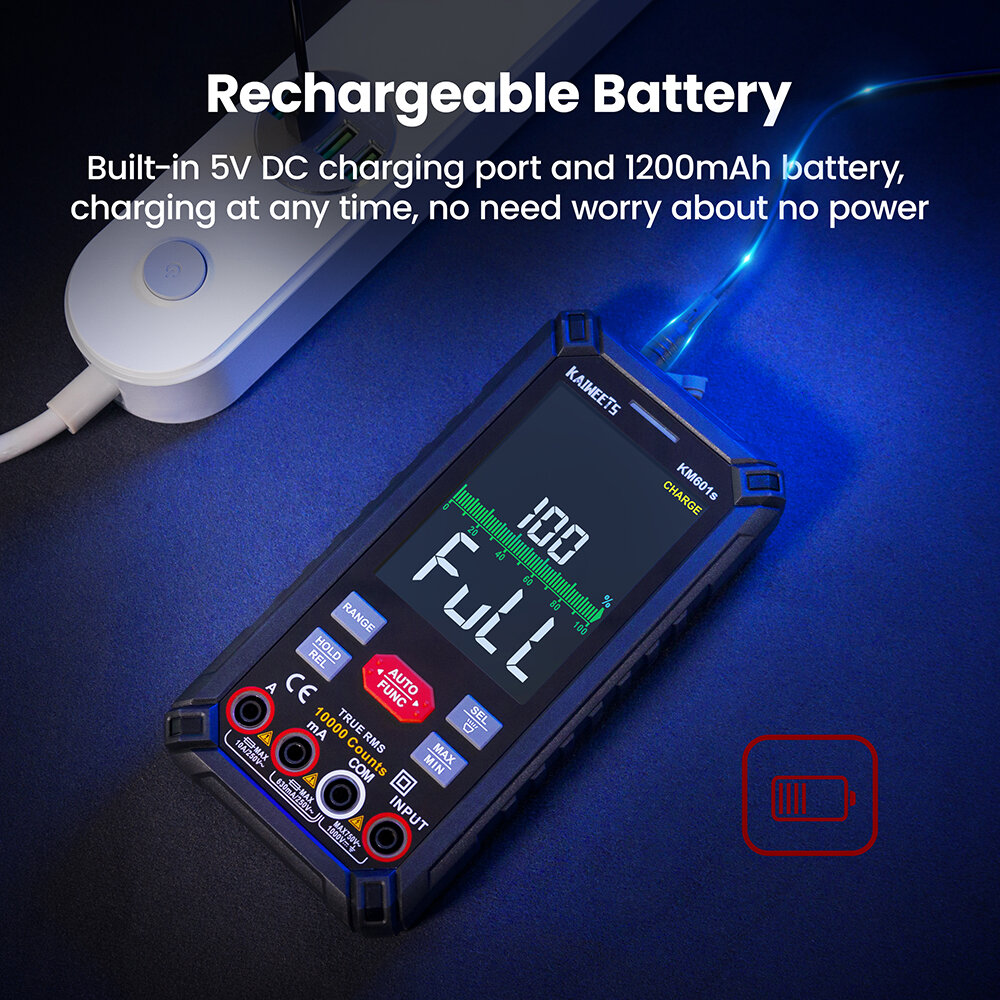

Upgraded Version: Easily Use. This multimeter tester has a rechargeable function and a built-in 1200mAh battery. The meter lasts longer. And it is more convenient that you no longer need to manually replace the battery. In addition, a retractable bracket is added on the back of the meter.

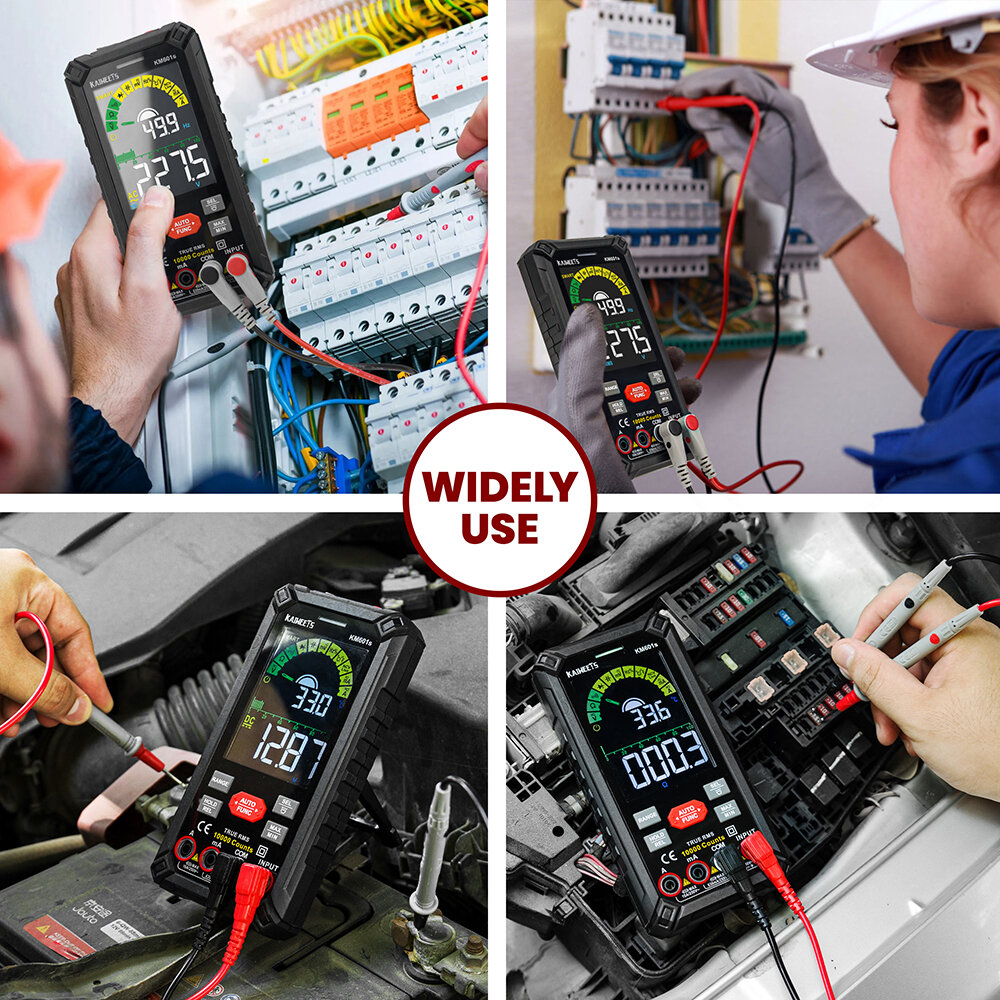

Wide Application: The smart digital multimeter is suitable for diagnosing automotive, industrial, and household electrical problems. The multimeter can accurately measure AC and DC voltage, resistance, continuity, AC and DC current, capacitance, frequency, diode, duty cycle, temperature, NCV, and live wire.



Safety First: This smart multimeter is manufactured to meet the IEC rating CAT.III 1000V, CAT.IV 600V. Obtained CE and RoHS certifications. Anti-burn with double fuse and overload protection. The silicone case provides additional drop protection and electric shock protection.



2 colors LCD screen, True RMS

Safety Level/Certification

IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation

Usage

Voltage tester

Large range measuring tool

Frequency multimeter

Diode electronic tester

Capacitance digital meter

Ohm meter

Upgraded Specification

DC Voltage: 99.99mV/999.9mV; 9.999V/99.9V/1000V ±(0.5%+3)

AC Voltage: 99.9mV/999.9/mV; 9.999V/99.9V/750V ±(0.8%+3)

DC Current: 9.999mA/99.99mA/999.9mA ±(0.8%+3); 9.99A ±(1.2%+3)

AC Current: 9.999mA/99.99mA/999.9mA ±(1.0%+3); 9.99A ±(1.5%+3)

Resistance: 999.9ohm/9.999k/99.99k/ 999.9kohm ±(0.8%+3); 9.999m/99.99mOhm ±(1.2%+3)

Capacitance: 9.999/99.99/999.9nF/9.999/99.99/ 999.9uF ±(4.0%+3); 9.999mF/99.99mF ±(5.0%+5)

Frequency: 99.99/999.9/9.999k/99.99k/999.9kHz/ 9.999mHz ±(1.0%+3)

Duty: 01.%-99.99% ±(1.0%+2)

1 x KAIWEETS KM601s Multimeter

2 x Test Leads

1 x K-Type Thermocouple

1 x User Manual

1 x Multimeter Bag

1 x Packing Box
