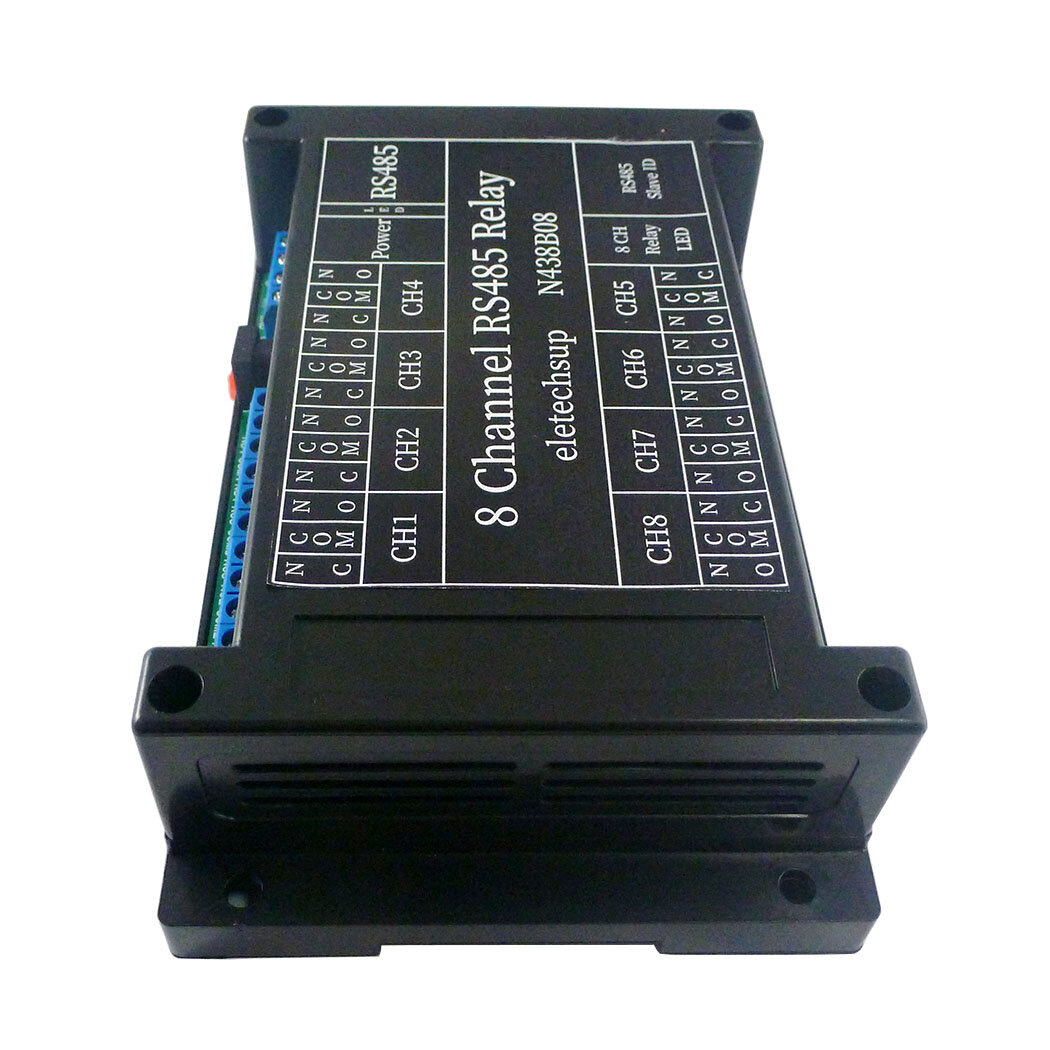

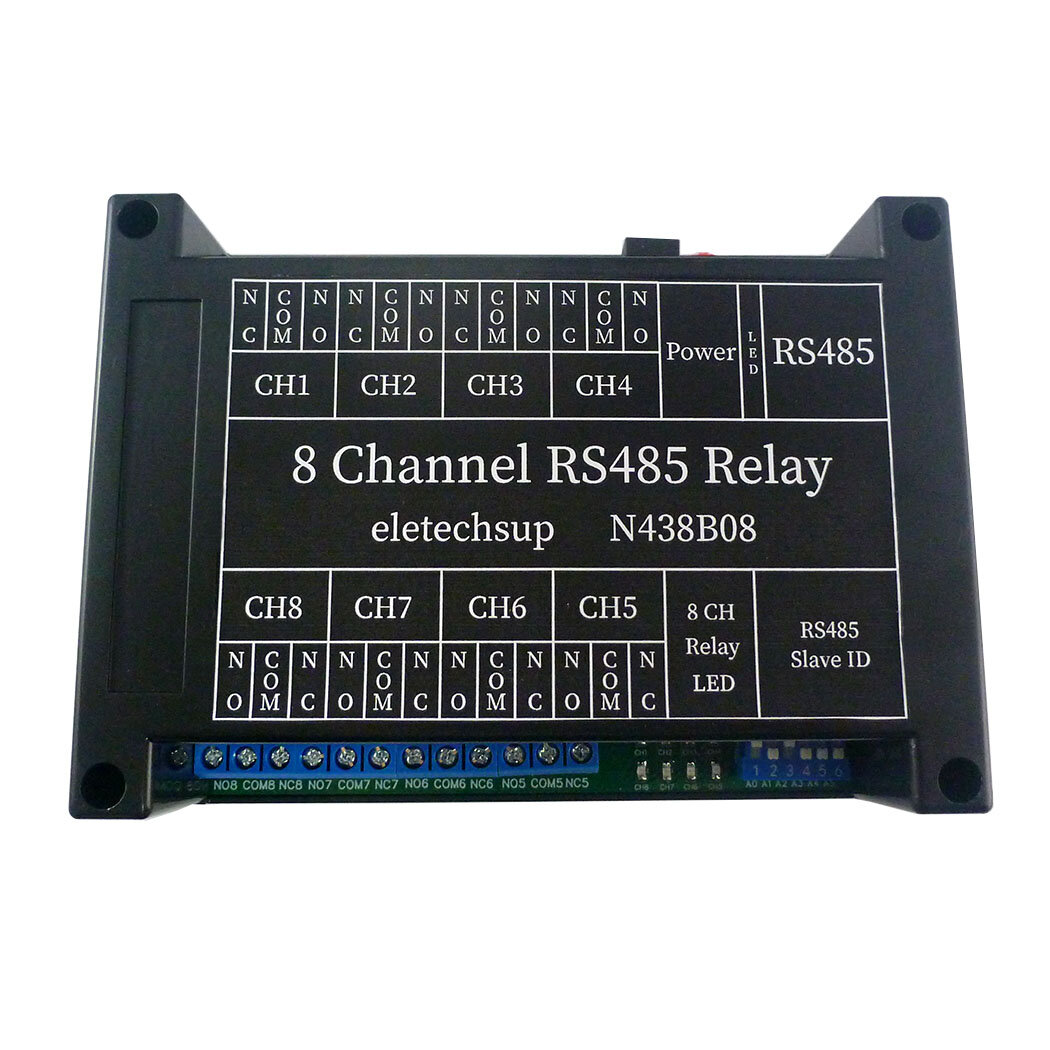

with TVS protected DC 12V 8Ch RS485 Relay Module Modbus RTU 03 06 16 Function Code DIN Shell Switch Board COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

 1. Working voltage DC 12V2. Standby current (all relays closed) 12MA, 1 relay open 40MA, 2 relays open 69MA, 3 relays open 95MA,4 relays open 122MA,5 relays open 149MA,6 relays open 174MA, 7 relays open 198MA,8 relays open 225MA3. Enhanced RS485 interface protection (TVS)4. ''open'' ''close'' ''Momentary'' ''Self-locking'' ''Interlock'' ''Delay'' 6 Commands5. MODBUS RTU command, Support 03 06 16 function code6. Under the ''Delay'' command ,the maximum delay is 255 seconds;7. MODBUS commands can be made serial HyperTerminal (serial assistant) OR ''Modbus Poll'' Enter;8. Under the MODBUS command mode, it can support up to 64 devices in parallel9. The default baud rate is 9600BPS. The baud rate can be selected through jumpers: 2400 4800 9600 19200BPS10. Size: 145*90*40mm11. Weight: 218g12. Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC
Application:
Package inlcuded:
1 x DC 12V Channel RS485 Relay Switch Module
