WZ5020L DC-DC 50V 20A 1000W Buck Converter CC CV Step-down Power Module Adjustable Voltage Regulated Power Supply COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

>>>Manual: Click here to open<<<

Note:

This product is a step-down module and cannot be boosted! The input voltage is 55V, and the output voltage can be adjusted from 0-50V. If the output voltage is 12V, the minimum input voltage should be 14V. The input voltage should not exceed 55V, it must be DC and not AC.

Highlights:

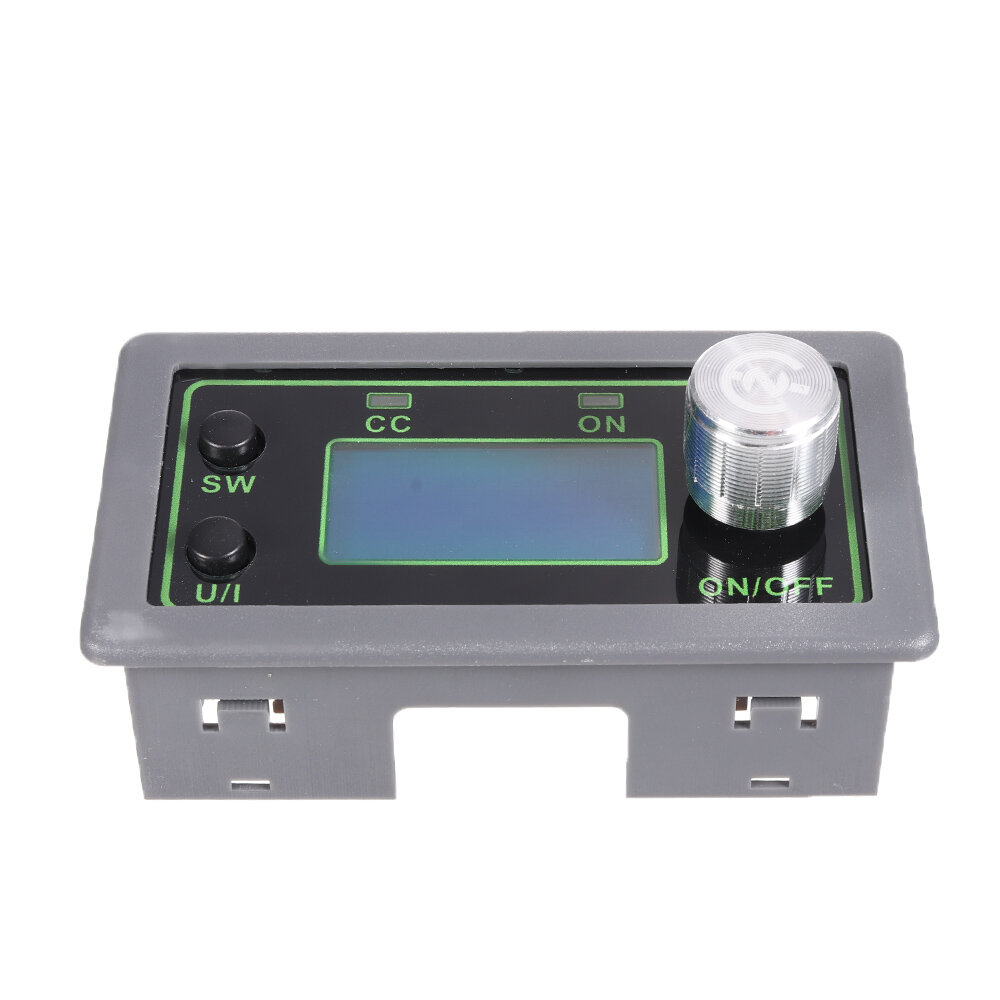

1. The LCD can display input/output voltage, output current/output power/output capacity/output time;

2. Numerical control adjustment, precise and fast, step-down output, arbitrary adjustment of output voltage 0-50.00V, arbitrary adjustment of limited current 0-20.00A;

3. The output terminal will not burn when it is poured backwards;

4. The module can be set to be turned on/off by default;

5. Has a variety of software protection mechanisms, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output will be automatically turned off;

6. Using synchronous rectification technology, high conversion efficiency: more than 90% efficiency;

7. Increase the heat sink and install a fan to enhance heat dissipation.

Feature:

	℃~40℃
