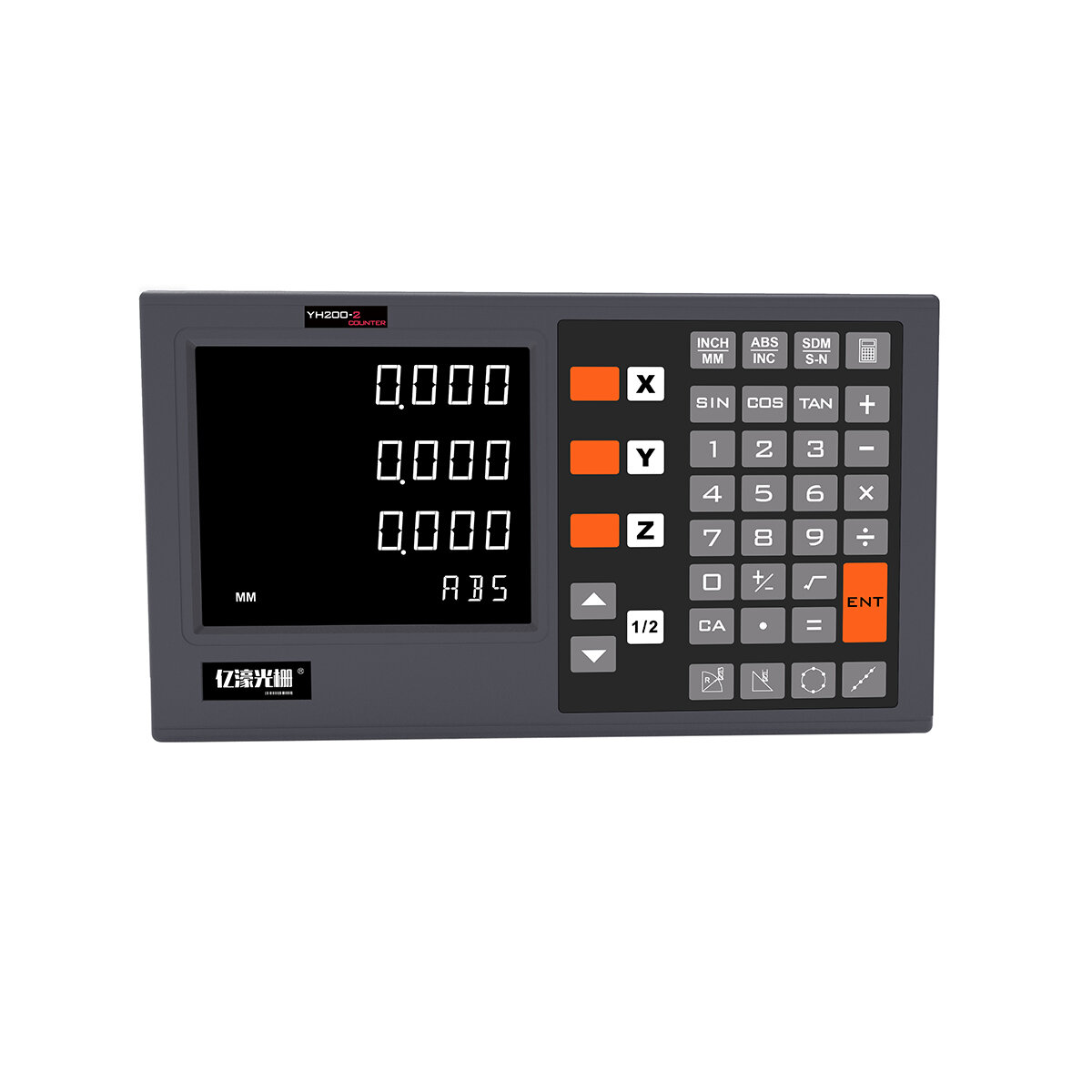

Big LCD screen, better display than digital tube, convenient and practical.
Specification:

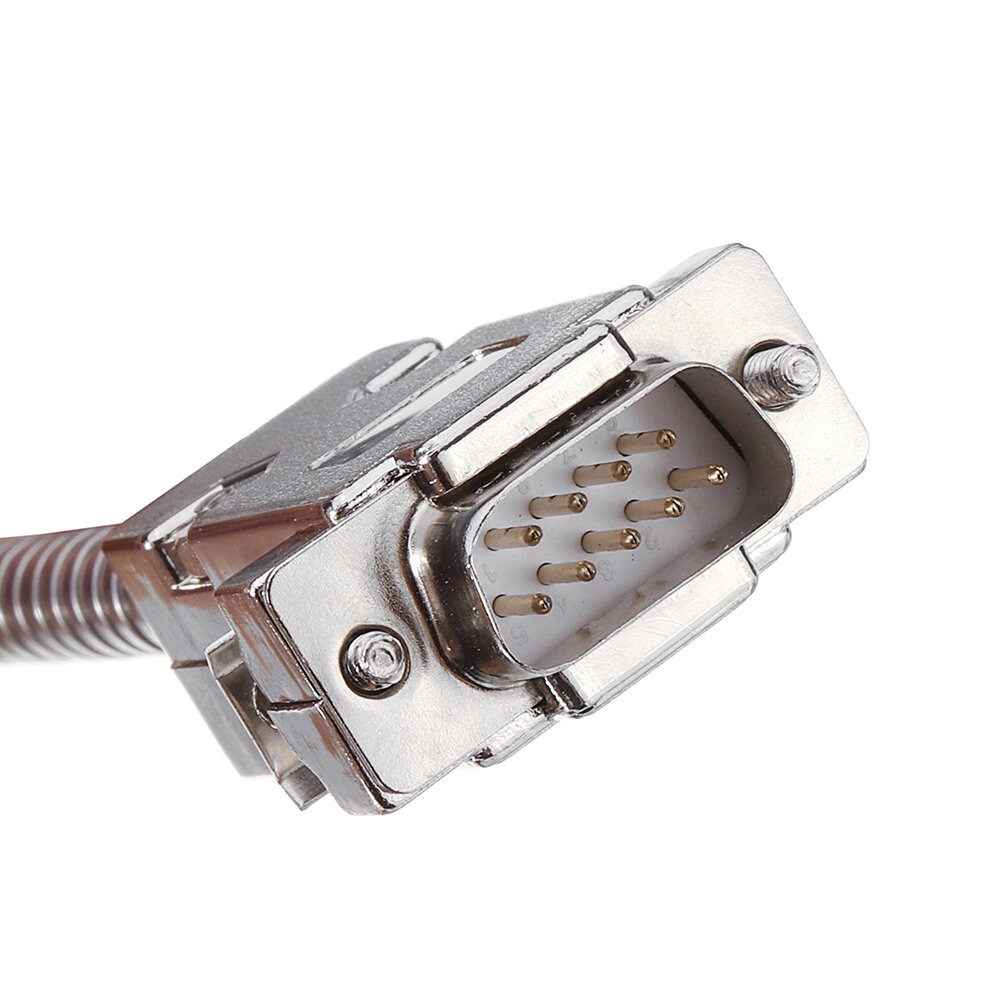

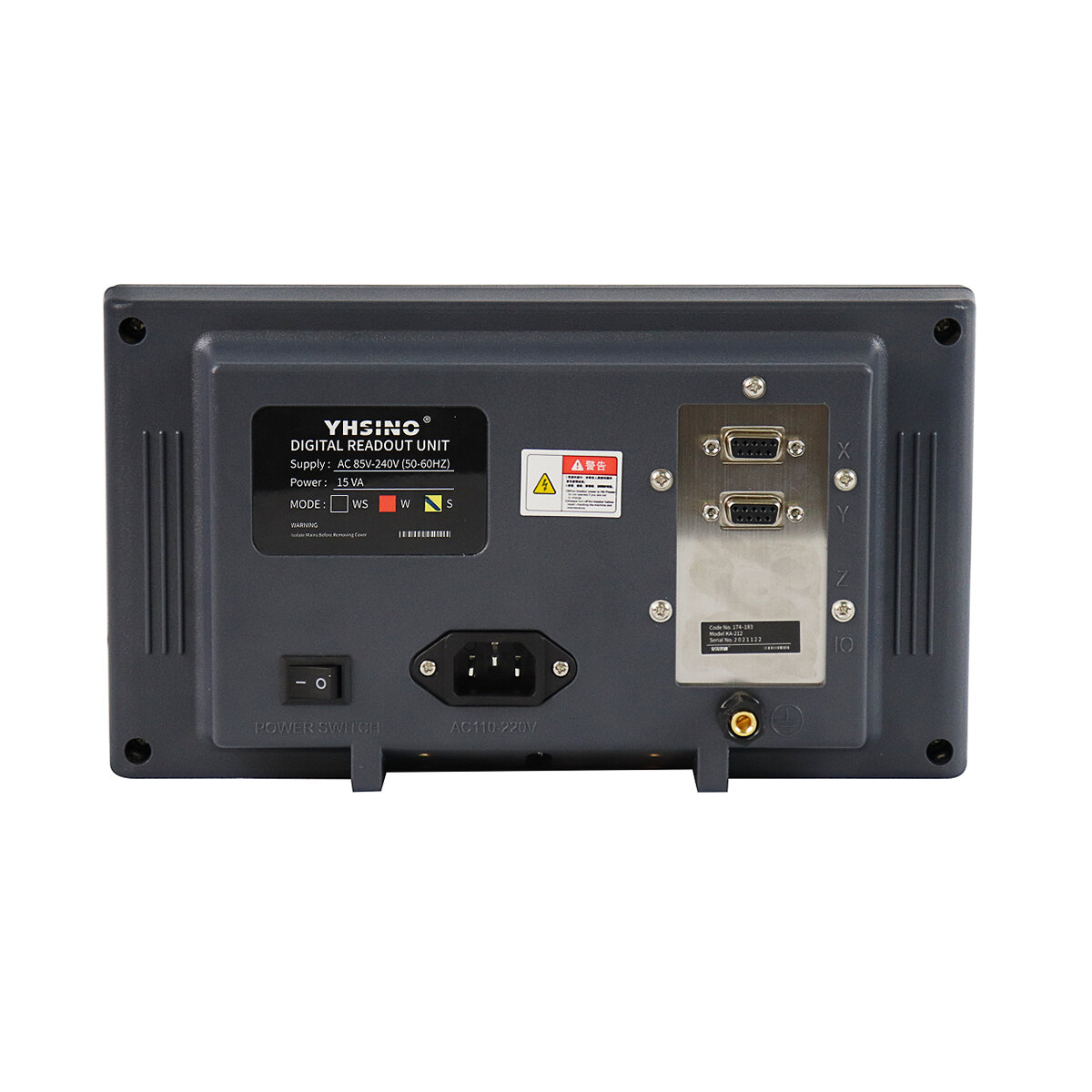

Voltage Range: AC 100V~240V/50HZ~60HZDigital Readout Display Acceptable Signal: TTLPlug: DB9Acceptable resolution: 10μm, 5μm, 2μm, 1μm, 0.5μm.Size:The optional length is measuring effective lengthTotal length = measuring effective length+106mm

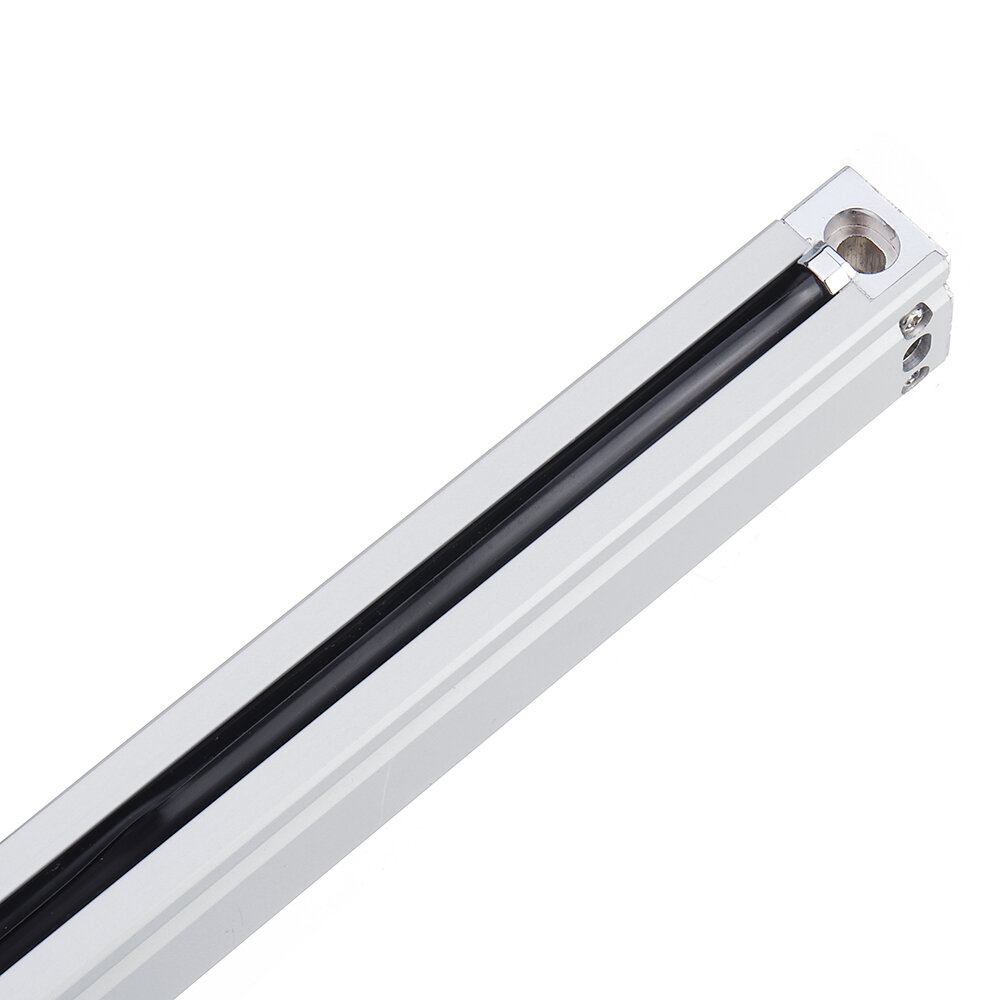

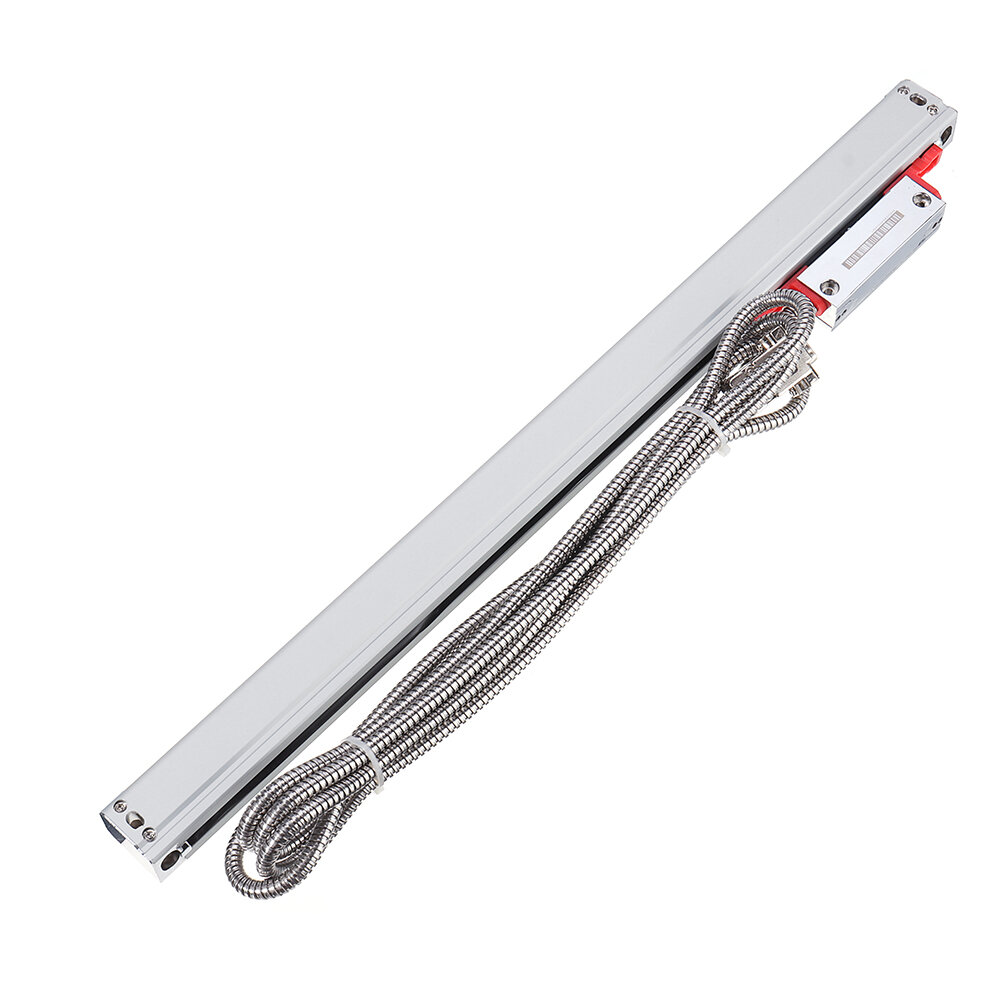

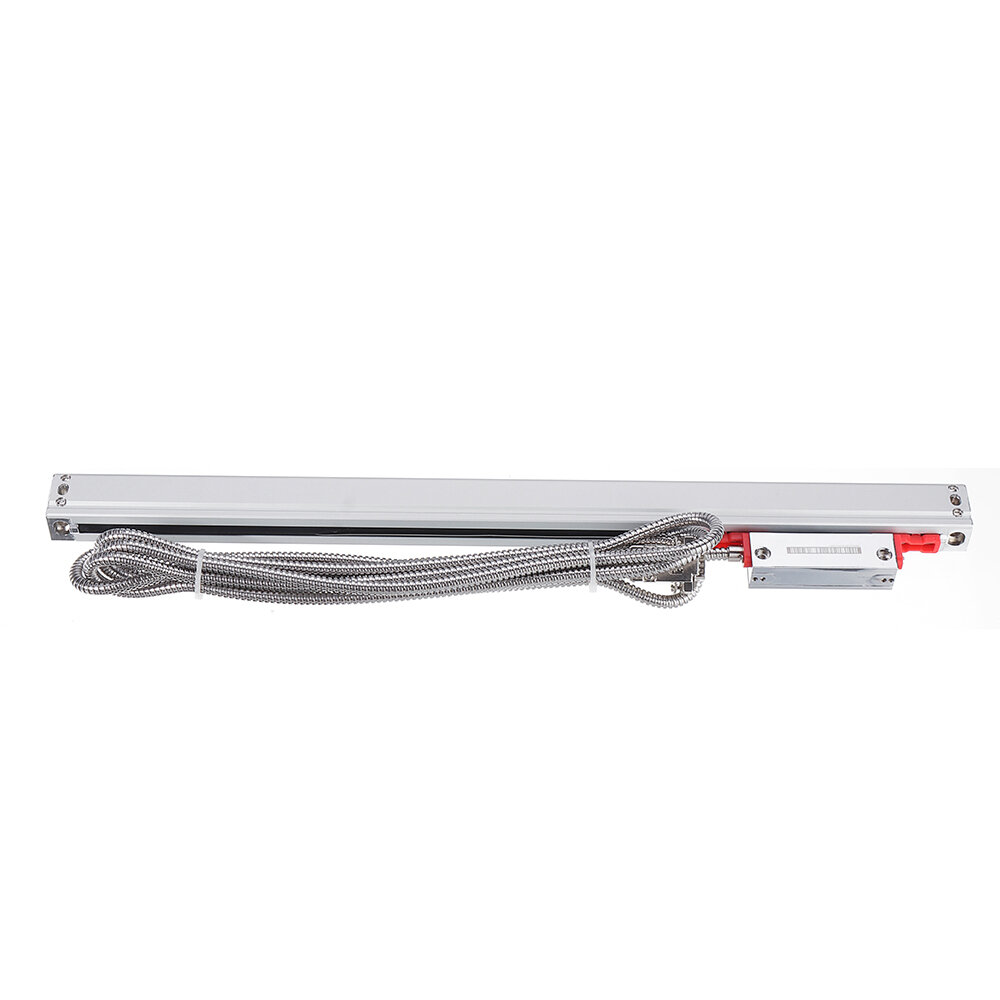

KA300 5U TTL Linear Scals/Linear Encoder/Linear Sensor/Linear Ruler Parameters
7. Cable length: 3 Meter

9. Signal: TTL

The Signal of 5μ Linear Optical Ruler/Linear Glass Scales/Linear Encoder/Linear Sensor
Pin 2 Black 0V

Pin 7 Red 5V

Pin 9 Orange Z

Why buy YH LCD digital readout systems?

1.Systems increase productivity, save time and provide higher precision by translating the values measured by linear encoders, length gauges, rotary encoders or angle encoders into an easy-to-read format.2.They can be installed on new equipment or retrofitted to machines already in operation.3.Systems work with any machine where axis slides are traversed manually.4.Data interface allows for additional processing or printouts of the measured values (most models).1.Eliminate machine tool position errors caused by thermal expansion, deformation of the drive mechanics, pitch issues and more.2.High long-term speed stability.3.Sturdy construction and high resistance to vibration.4.Finer signal periods offer highest interpolation accuracy.5.Compact, lightweight and easy to install.6.Durable and dependable—functions properly even after many years of operation.
LCD 3 Axis Digital Readout Package Included:
1 Pcs x Power Cable(We will send you a extra plug adapter depend on your country)

1 Pcs x Manual 1 Pcs x 2 Axis Digital Readout

1 Set x Bracket and Accessories

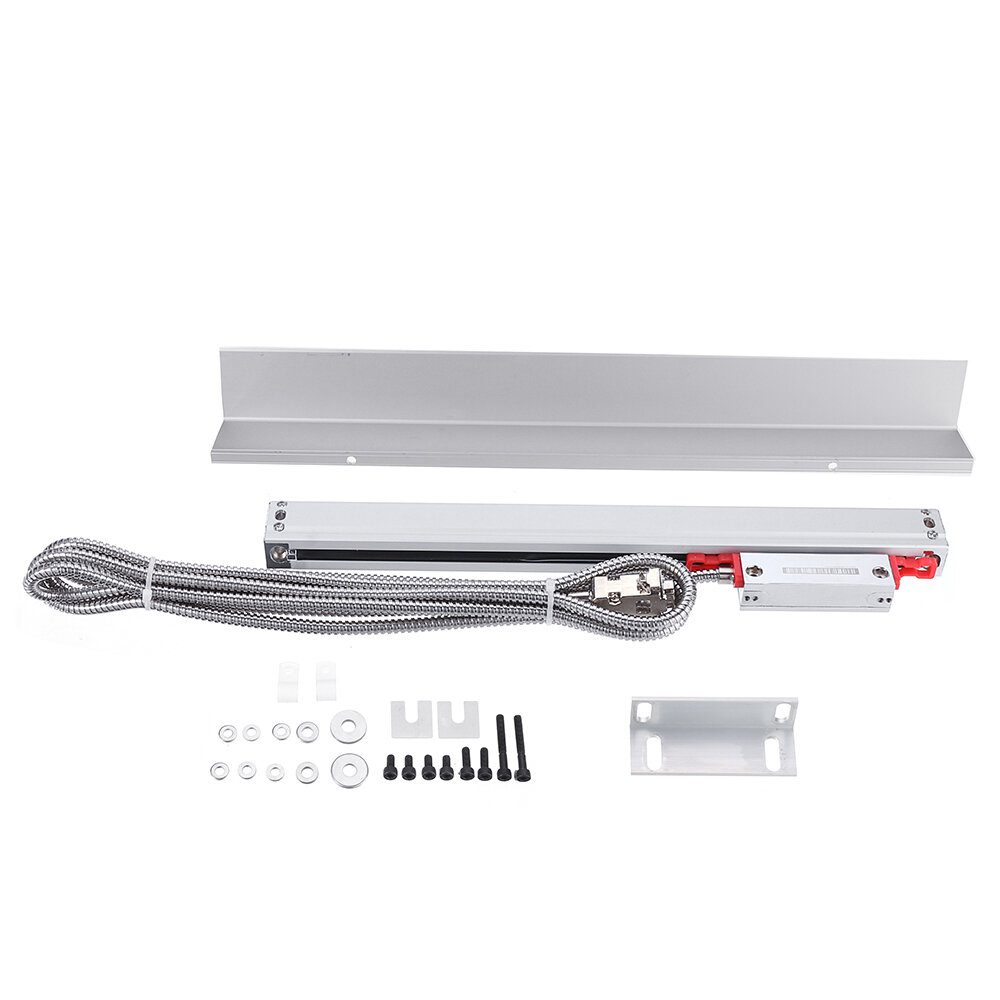

Linear Scale Package Included:(optional length)

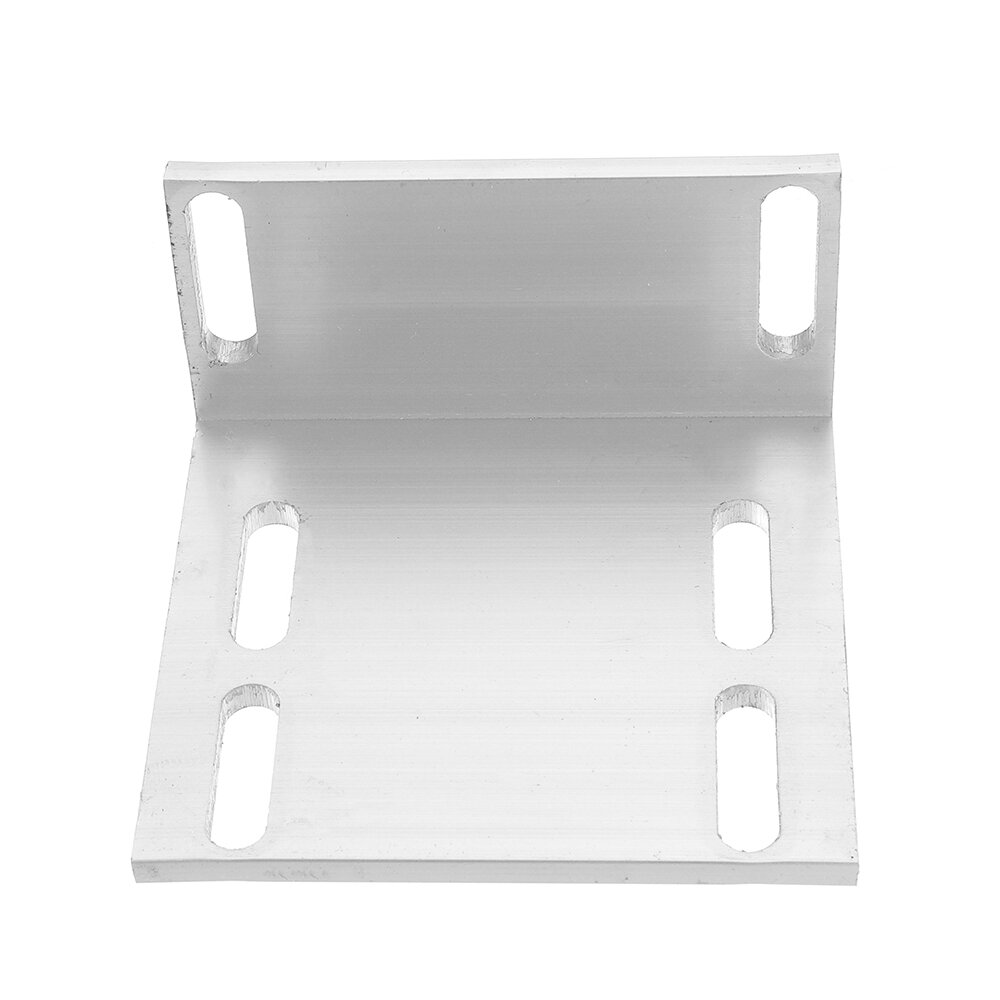

1 Pcs x L plate

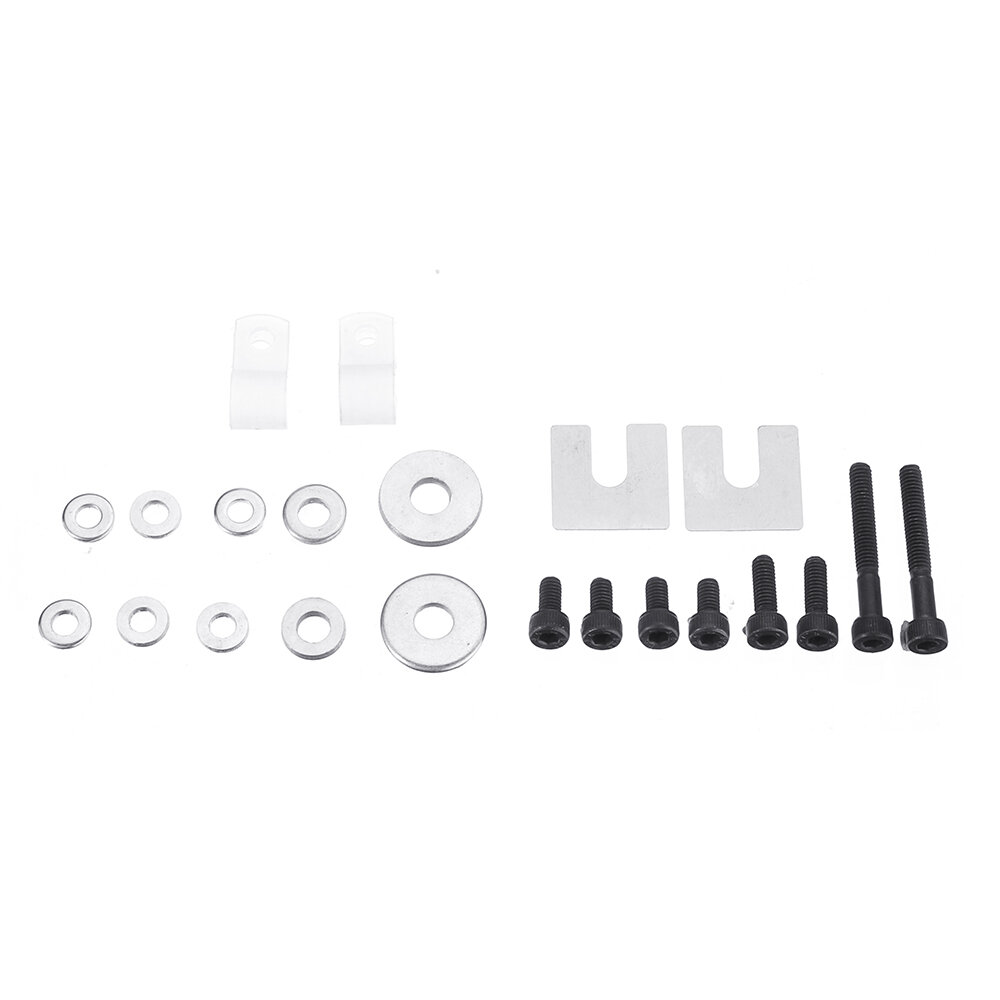

1 Pcs x Bag of screw Note:Please note that the digital readout and linear scale is optional. The package included one type only.
