ZT-5B Digital Multimeter Bluetooth Technology Smart T-RMS Voltmeter Ammeter Auto Rang Analog Resistance Capacitor NCV Tester COD

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below.

• Select
• Make:
• Select
• Submodel:
• Select
• Engine:

This part is compatible with vehicle(s).Show all compatible vehicles 1

• Year
• Make
• Model
• Submodel
• Trim
• Engine

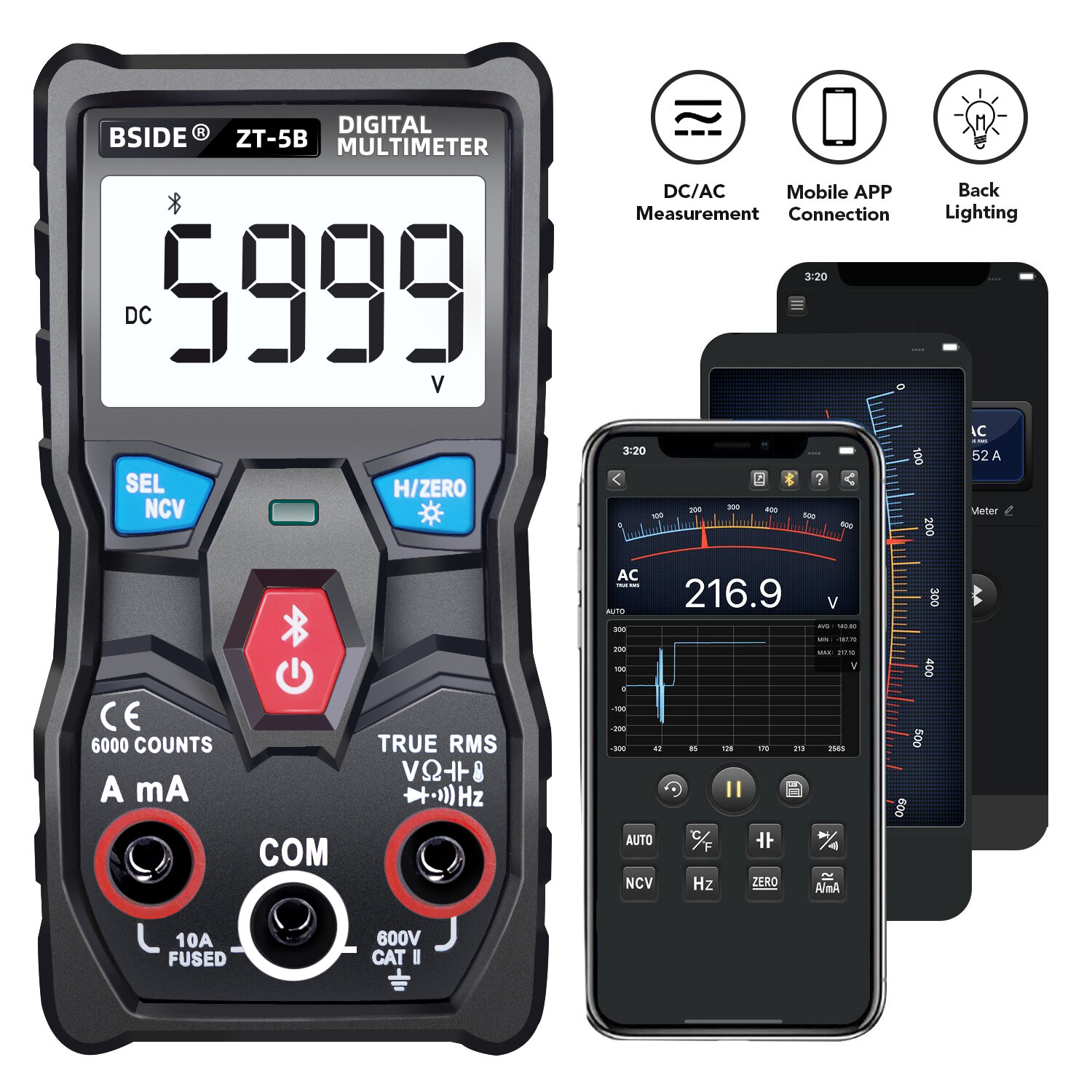

[Wireless Connection]: Connect this meter to your phone with wireless technology.

[Remote Monitoring]: Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks.

[Real-Time Data]: Real-time data can be recorded, analyzed and processed by the mobile APP, with timing and curve graph.

[Automatic Identification]: Automatic identification design design greatly improve test efficiency.

[Flashlight]: Flashlight makes measurement more convenient.



Features:

Display: 6000 counts

DC voltage: 6V/60V/600V ±(0.5%+3)

AC voltage: 6V/60V/600V ± (1.0%+3)

DC current: 999.9mA/9.999A ±(1.0%+4)

AC current: 999.9mA/9.999A ±(2.0%+3)

Resistance: 6KΩ ±(1.5%+3); 60KΩ/600KΩ/6MΩ ±(1.0%+3); 60MΩ ±(1.5%+3)

Frequency: 6Hz/60Hz/600Hz/6kHz/60kHz/600kHz/6MHz/10MHz ±(1%+2)

Capacitance: 6nF±(5.0%+20); 60nF/600nF/6uF/60uF/600uF ±(3.5%+4); 6mF ±(5.0%+5)

Temperature: -20~1000℃ / -4~1832℉ ±(3%+5)

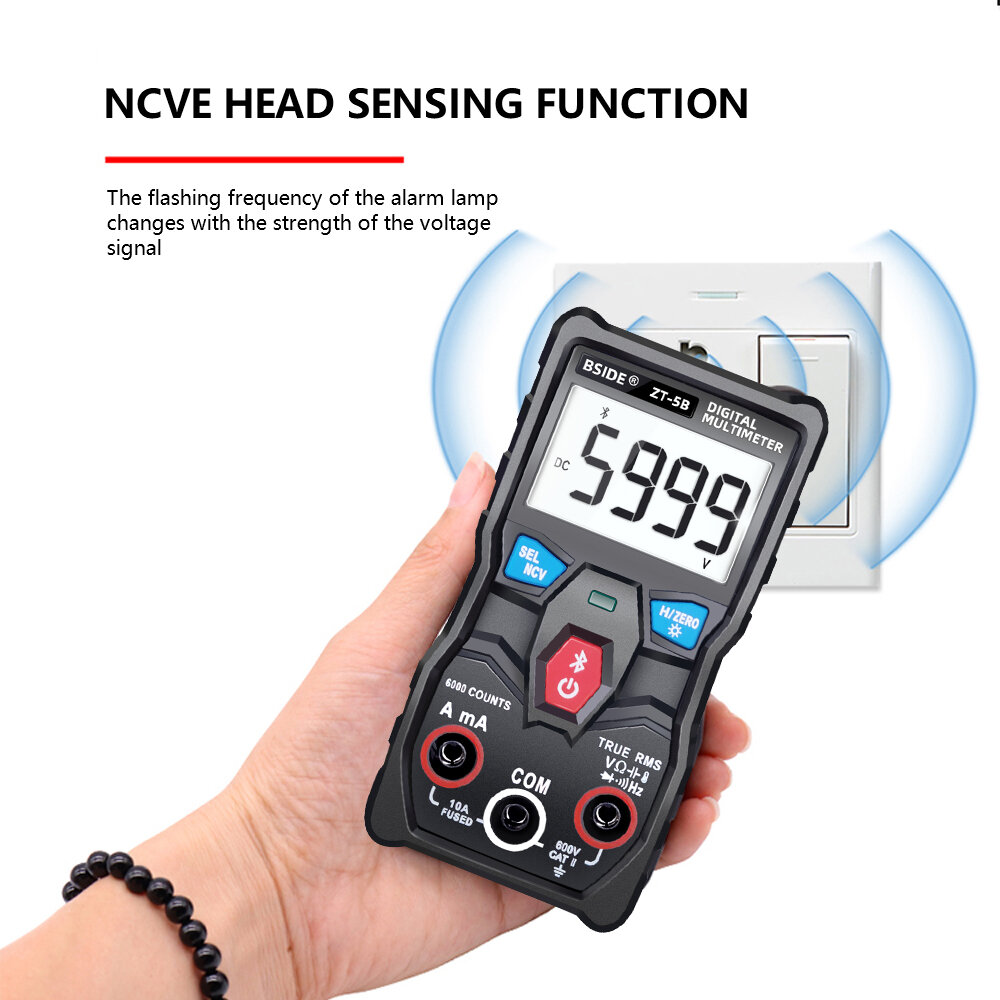

NCV (Non-contact Voltage Detection): Yes

Diode Test: Yes

Continuity: Yes

Power: 1.5V AAA * 2

Size:120mm*61mm*28mm

Weight: 117g

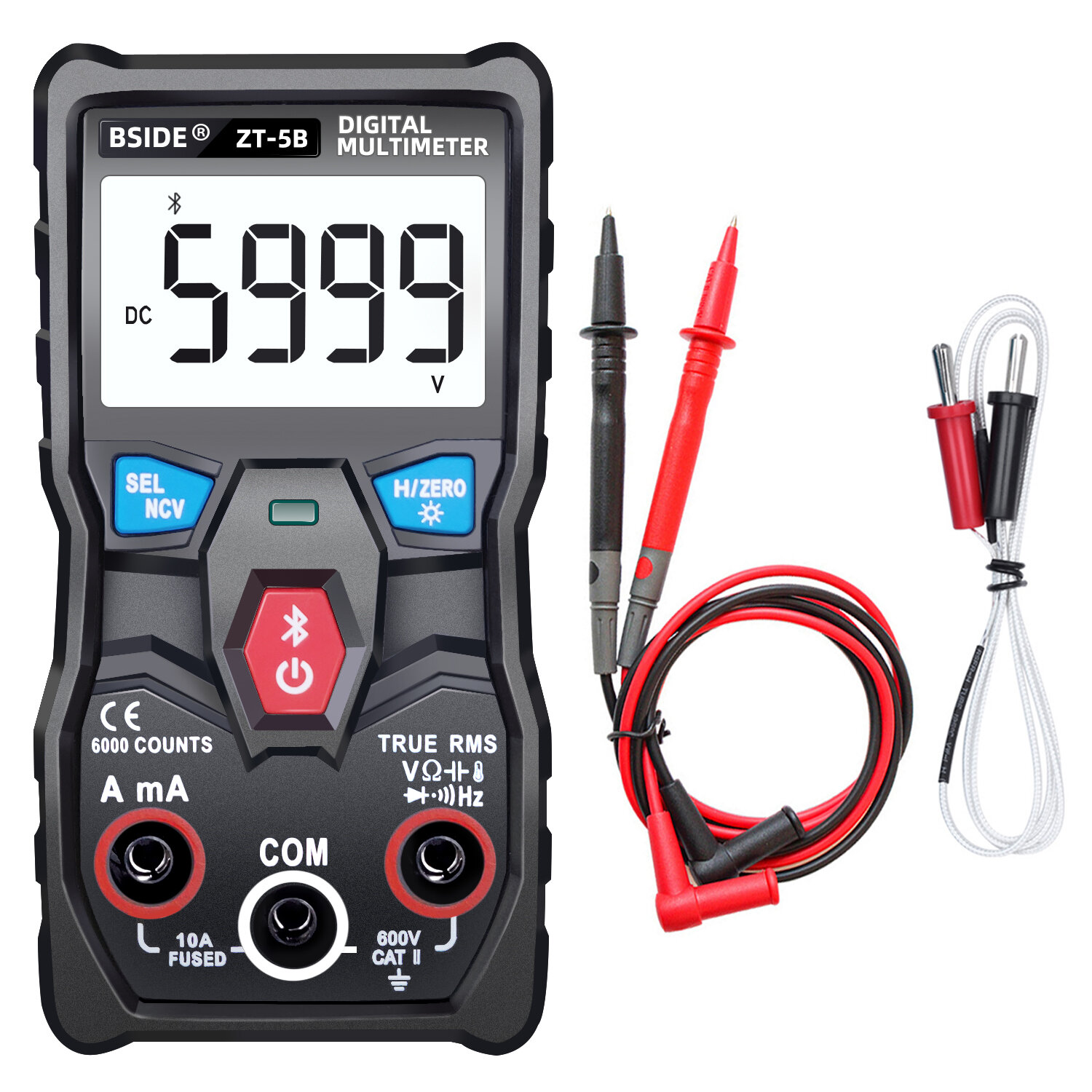

Package Includes:
